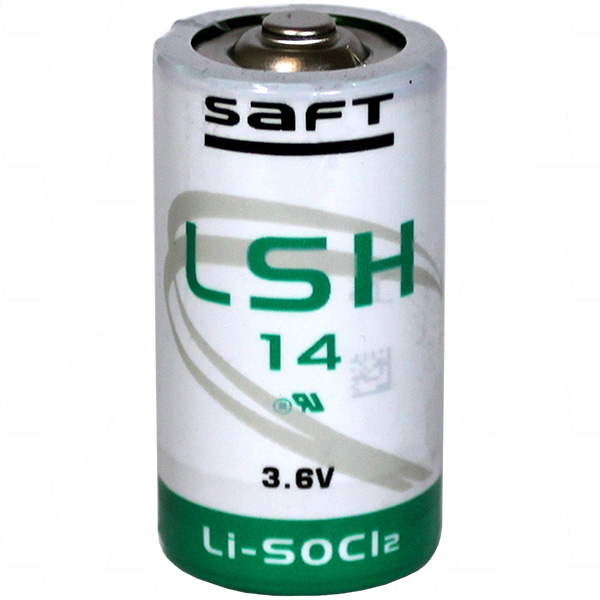

Saft LSH14
LSH14 Saft High Rate C size Battery Specialised Lithium Battery Cylindrical Cell - Spiral Wound Type
Saft LSH14
Benefits:
- High voltage response, stable during most of the lifetime of the application
- High drain/pulse capability
- Wide operating temperature range (-60°C - +85°C)
- Easy integration in compact system
- Low self-discharge rate (less than 3 % after 1 year of storage at + 20°C)
Key features:
- Stainless steel container
- Hermetic glass-to-metal sealing
- Built-in safety vent
- Finish with 5 A fuse
- Non-flammable electrolyte
- Underwriters Laboratories (UL) Component Recognition (File Number MH 12609)
- Compliant with IEC 60086-4
- Restricted for transport (Class 9)
SHIPPING RESTRICTIONS APPLY
Due to IATA regulations, this item may only be shipped by road freight, unless shipped Class 9 Dangerous Goods for airfreight. Information available upon request.
| Selling Unit | EACH |
|---|---|
| Model No | LSH14 |
| Brand |
|
| Description | LSH14 Saft High Rate C size Battery Specialised Lithium Battery Cylindrical Cell - Spiral Wound Type |
| Application | Main Power Use & MBU (Usually Higher Drain Applications Than Bobbin Type Construction) |
| Chemistry | Lithium Thionyl Chloride |
| Voltage | 3.6V |
| Watt Hour | 19.8Wh |
| Nominal Capacity | 5.5Ah |
| Maximum Continuous Discharge Current | 1.3A |
| Size | C |
| Width | 26mm |
| Height | 50.4mm |
| Weight | 51g |
| Categories |
Portable Power Product Batteries Primary (Non-Rechargeable) Lithium Batteries Lithium Thionyl Chloride Batteries Lithium Thionyl Chloride Batteries Cylindrical Spiral Wound Hi-Rate Type 3.6V Lithium Thionyl Chloride - Spiral Wound |

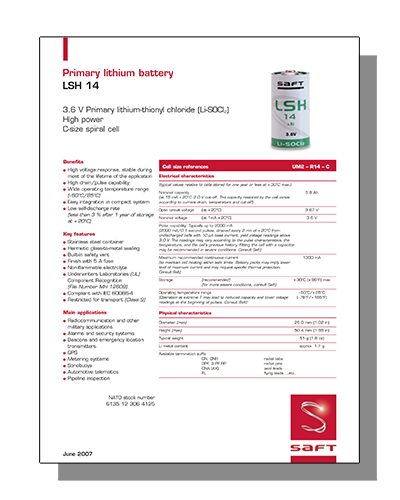

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3090 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM METAL BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
