Product Details

Model No
SHARE US:
Selling Unit EACH
Categories Lithium Ion Batteries
Lithium Iron Phosphate Batteries
Lithiumwerks
Description ANR26650M1B Lithium Iron Phosphate High Current Type Cylindrical Battery (Recommended maximum discharge current 70A) using patented Nanophosphate technology
Application Power Tool, Electric Bike
Chemistry Lithium Iron Phosphate (LiFePO4)
Voltage 3.3V
Watt Hour 8.25Wh
Nominal Capacity 2.5Ah
Maximum Continuous
Discharge Current
70A
Maximum Pulse
Discharge Current
120000mA
Brand
Size 26650
Width 26mm
Height 65mm
Weight 76g
Comments

Lithiumwerks was formerly A123 systems

Features:

The ANR26650M1-B is the next generation of A123 Systems' pioneering 26650 cylindrical cell, now with greater power and energy density and lower impedance. This versatile lithium ion cell is suitable for a wide variety of applications and system designs. Proven performance in the toughest conditions, combining durability, reliability, and safety, the ANR26650 cell offers an excellent combination of price-performance.

Cylindrical Cell Primary Applications

  • Portable high power devices
  • Stationary battery backup systems
  • Grid stabilisation energy storage systems
  • Commercial truck and bus hybrid electric vehicles (HEVs)
Nanophosphate® LiFePO4 Benefits
  • Cycle Life at 1C/1C, 100% DOD, > 4000 cycles
  • Safety: Excellent abuse tolerance and environmentally friendly
  • Life: Excellent calendar life, 10X cycle life vs. conventional lithium ion

Important Information Regarding Rechargeable Lithium Cells - LITHIUM ION (LiIon) & LITHIUM IRON PHOSPHATE (LiFePO4)

  • Single unprotected cells are available to recognised customers. For safety information please read the Lithium Battery Safety document
  • PLEASE NOTE: All lithium rechargeable cells/packs supplied by Mi Battery Engineering without a Protection Circuit Module (PCM) will require a duly signed Product Indemnity Waiver (PIW) Click here to download
  • Do not attempt to charge these batteries using chargers for nickel based batteries or any charger not specifically designed for rechargeable lithium technology.
  • This cell is manufactured for use in a battery pack assembly. It is not intended for use without a protection circuit. For equipment designed to use individual cells a protection circuit can be incorporated. Mi Battery Engineering's current range of protected lithium ion cells can be viewed on this page.
  • Lithium ion cells can be assembled into single or multi-cell battery packs by authorised pack assembly centres such as our company that have been approved for safety circuit assembly and Lithium Ion pack design.
  • For information on the safety circuits, more commonly known as a PCM, please click here or follow the links to browse Mi Battery Engineering's range of available PCM's for Lithium Ion and Lithium Iron Phosphate.
  • Mi Battery Engineering can also provide advice and components for intelligent Battery Management System's (BMS) addtional to or incorporating PCM's. It's recommended that battery packs especially those featuring complex series/parallel cell assemblies incorporate a BMS in their construction. For further information please consult our sales engineering staff.
  • For battery pack design enquiries please contact us with your requirements. If you already have some parameters please click here for a Battery Application work sheet & email it to us.

Shipping restrictions

SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.

NON DG UN3480 LITHIUM ION BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.

Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.

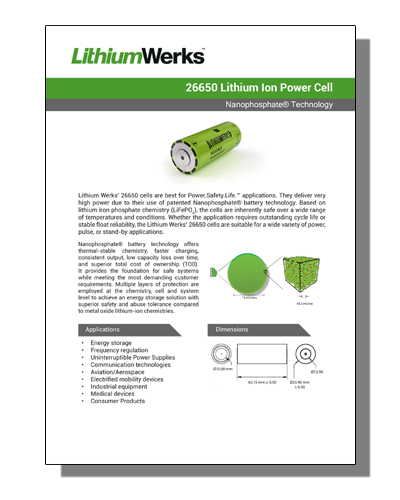

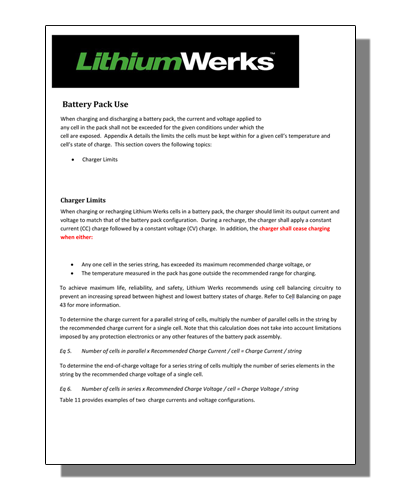

Data Sheet
