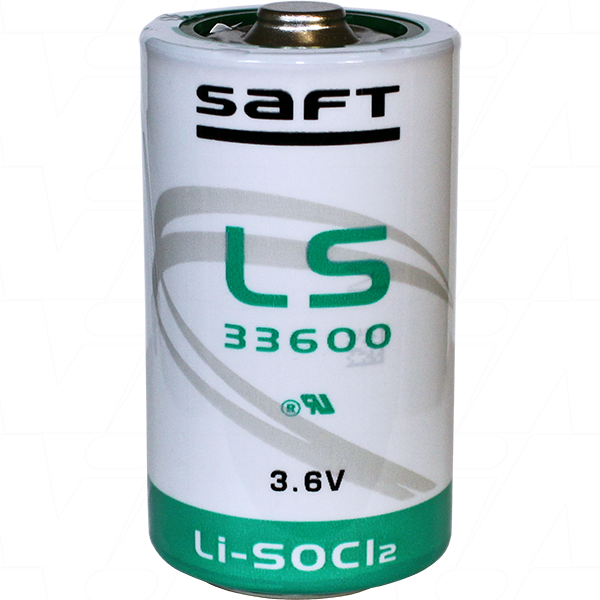

Saft LS33600
LS33600 D Size Saft Lithium Cylindrical Cell - Bobbin type
D Size Lithium Thionyl Chloride cell
Saft’s LS33600 cell is ideally suited for long-term applications (typically from 5 to 20+ years), featuring low base currents and periodic pulses.
Benefits:
- Bobbin Construction
- High capacity and high energy (1185 Wh/l and 680 Wh/kg)
- High voltage response, stable during most of the lifetime of the application • Wide operating temperature range (-60°C / +85°C)
- Low self-discharge, compatible with a long operating life (less than 1% per year of storage, at +20°C, after 1 year)
- Superior resistance to corrosion
- Low magnetic signature
Designed to meet all major quality, safety and environment standards
- Safety: UL 1642, IEC 60086-4
- ATEX: IEC 60079-11 part 10.5 (T4 rating at 40°C)
- Transport: UN 3090 and UN 3091
- Quality: ISO 9001, Saft Excellence System, continuous program
Alternate Products:
Supplied with 20F Super Capacitor - LSP33600-70F
| Selling Unit | EACH |
|---|---|
| Model No | LS33600 |
| Brand |
|
| Description | LS33600 D Size Saft Lithium Cylindrical Cell - Bobbin type |
| Application | Memory Back Up (MBU) |
| Chemistry | Lithium Thionyl Chloride |
| Voltage | 3.6V |
| Watt Hour | 61.2Wh |
| Nominal Capacity | 17Ah |
| Maximum Continuous Discharge Current | 250mA |
| Size | D |
| Width | 33.4mm |
| Height | 61.6mm |
| Weight | 90g |
| Categories |
Portable Power Product Batteries Primary (Non-Rechargeable) Lithium Batteries Lithium Thionyl Chloride Batteries Lithium Thionyl Chloride Cylindrical Bobbin-MBU type 3.6V Lithium Thionyl Chloride - Bobbin Type Water Utility Batteries ATEX & Intrinsic Safety Water Utilities |

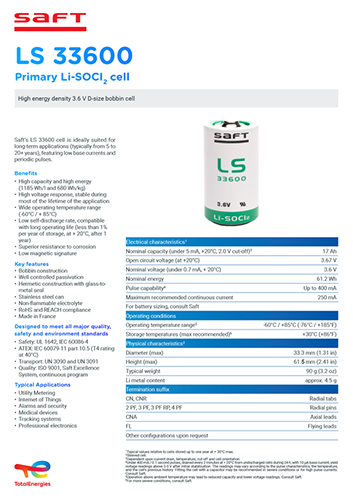

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
Saft’s broad offer includes the world’s only lithium cells independently certified and regularly audited, ensuring full and continued compliance with IEC / EN 60079-0 (Explosive atmospheres – Part 0: General requirements) and 60079-11 (Explosive atmospheres – Part 11: Equipment protection by intrinsic safety “i”) standards.
Speak to the Battery Engineers at Master Instruments to find out more about this standard.
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3090 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM METAL BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
