Saft LS14500-CNA

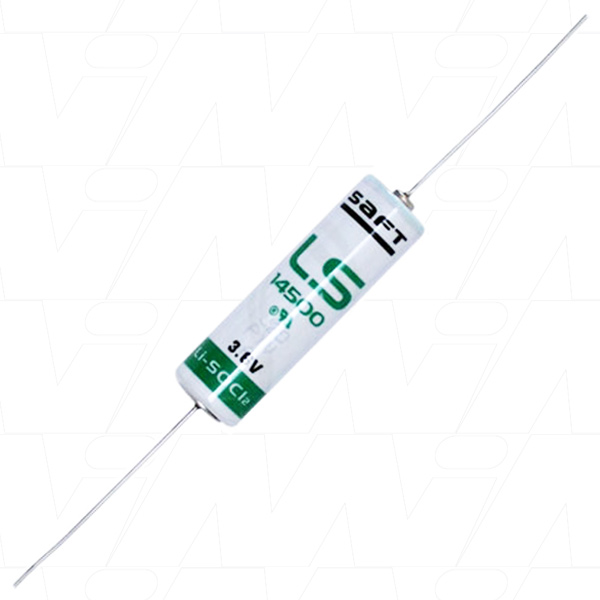

LS14500 AA size Saft Lithium 3.6V Thionyl Chloride Battery - with Axial Leads
AA Size Lithium Thionyl Chloride cell with Axial leads
Saft’s LS 14500 cell is ideally suited for long-term applications (typically from 5 to 20+ years), featuring low base currents and periodic pulses.
Benefits:
- Bobbin Construction
- High capacity and high energy (1139 Wh/l and 589 Wh/kg)
- High voltage response, stable during most of the lifetime of the application • Wide operating temperature range (-60°C / +85°C)
- Low self-discharge, compatible with a long operating life (less than 1% per year of storage, at +20°C, after 1 year)
- Superior resistance to corrosion
- Low magnetic signature
Designed to meet all major quality, safety and environment standards
- Safety: UL 1642, IEC 60086-4
- IEC 60079-11 part 10.5, (T4 temperature rating at +60°C)
- Transport: UN 3090 and UN 3091
- Quality: ISO 9001, Saft Excellence System, continuous evaluation program
| Selling Unit | EACH |
|---|---|
| Model No | LS14500-CNA |
| Brand |
|
| Description | LS14500 AA size Saft Lithium 3.6V Thionyl Chloride Battery - with Axial Leads |
| Application | Memory Back Up (MBU) |
| Chemistry | Lithium Thionyl Chloride |
| Voltage | 3.6V |
| Watt Hour | 9.36Wh |
| Nominal Capacity | 2.6Ah |
| Maximum Continuous Discharge Current | 50mA |
| Size | AA |
| Width | 14.55mm |
| Height | 50.3mm |
| Weight | 16.7g |
| Categories |
Portable Power Product Batteries Primary (Non-Rechargeable) Lithium Batteries Lithium Thionyl Chloride Batteries Lithium Thionyl Chloride Cylindrical Bobbin-MBU type Memory Back Up (MBU) Batteries 3.6V Lithium Thionyl Chloride - Bobbin Type |

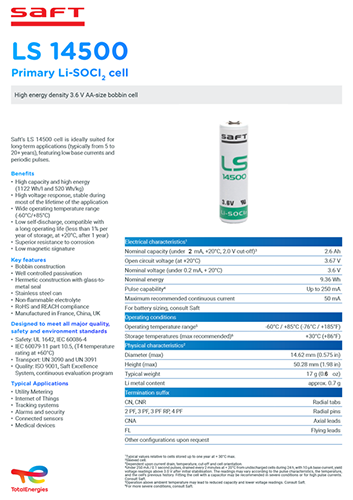

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
NON DG UN3090 LITHIUM METAL BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
