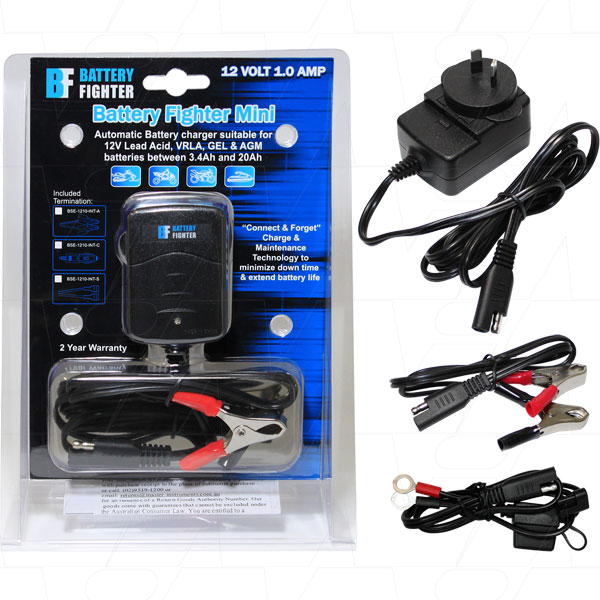

Battery Fighter BSE1210-INT-A

Battery Fighter BSE1210-INT-A

12V 1.0A 2 stage fully automatic lead acid battery charger with alligator clips & ring terminals

Battery Fighter Mini - 12V 1.0Amp 2 Stage automatic SLA battery charger with alligator clips, ring terminals and SAA approved Australian interchangeable input plug (optional input plugs for other regions sold separately).

Features:

  • 2 step charging method:- constant current, constant voltage charge
  • Automatic shut off at 14.4V (No Trickle Charge)
  • Maintenance mode charge threshold is at 12.75V
  • If battery voltage becomes less than 12.75V then the charger moves back into bulk charge mode until 14.4V is reached
  • Interchangeable input plug types available:
  • Reverse polarity protection and spark proof
  • LED status indication:
    • RED: Charging
    • GREEN: Charge complete
  • SMPS technology
  • Constar quick disconnect termination allowing for easy use with the included alligator clips, ring terminals or with a range of other output charger leads options (sold separately).

Specifications:

  • AC Input Rating: 100-240VAC 50/60Hz 20W
  • DC Output Rating: 12VDC @ 1.0Amp
  • Output Termination: Alligator clips or ring terminals
  • Automatic shut off at 14.4V
  • Operating Temperature: -20oC to +50oC
  • Certificates available: CE, GS, SAA, PSE and ETL Approval + RoHS

Please Note: For indoor use only.

Full 3 Year Warranty


SHARE:
Selling Unit EACH
Model No BSE1210-INT-A
Brand Battery Fighter brand logo
Description 12V 1.0A 2 stage fully automatic lead acid battery charger with alligator clips & ring terminals
Application Ideal for all 12V motorcycle and engine start batteries including GEL type
Width 48mm
Height 37mm
Length / Breadth / Depth 70mm
Weight 140g
Categories Portable Power Product
Battery Chargers / Analysers / Testers
Lead Acid Battery Chargers
Data Sheet Datasheet PDF Thumbnail icon

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

This Battery Fighter charger comes with interchangeable leads connectivity via the convenient Constar/SAE quick disconnect termination.

A range of alternative accessory leads are available for this charger. View products below for more information.

BFL1
BFL1
Alligator Clips
BFL2
BFL2
Ring Terminals
BFL3
BFL3
3 pin microphone connector
BFL4
BFL4
DC, Merit, Hella plug
BFL5
BFL5
4.8mm (F1) female spades
BFL6
BFL6
6.35mm (F2) female spades
BFL7
BFL7
BFL extension lead
BFL8
BFL8
Female DC socket
BFL9
BFL9
In line voltage reader
BFL10
BFL10
XLR Connector
BFL11
BFL11
5V (regulated) USB socket
BFL12
BFL12
Anderson / torberry connectors
