Saft LM17500

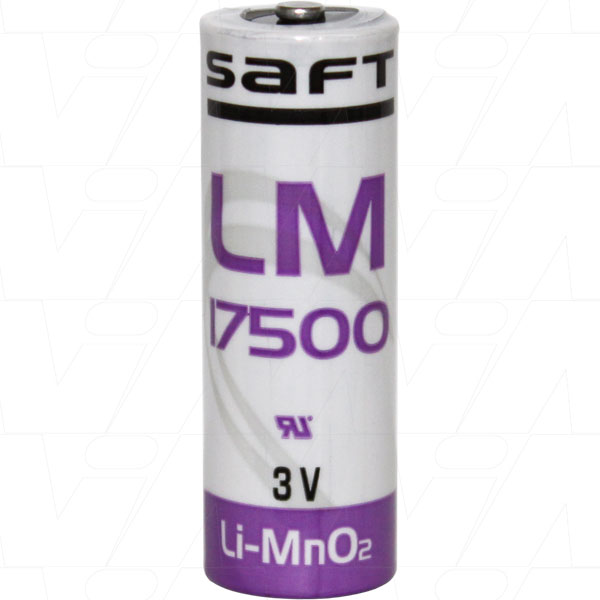

LM17500 Saft A Size 3V High Power Lithium Cylindrical Cell with Intrinsically Safe Design
Saft LM17500 A Size 3V high power lithium cylindrical cell featuring:
- Excellent resistance to passivation, even after long-term storage in uncontrolled temperature environments.
- Competitive capacity at high current and low temperatures (– 40°C).
- Operating temperature: -40°C to +70°C.
- Non-corrosive electrolyte.
- High pulse capability.
- Minimal voltage delay.
- Spiral cell construction.
- Intrinsically safe designs for high power applications.
Suitable for use with the ProEdge Bluetooth Smart Latch
Designed to meet all major quality, safety and environment standards:
- Safety: UL 1642 and IEC 60086-4
- ATEX: Compliant with IEC 60079-11 (T4 rating at +70°C. Consult Saft)
- Transport: UN 3090 and UN 3091
- Quality: ISO 9001, Saft World Class Continuous Program
Suitable For:
ProEdge Bluetooth Smart Latch
| Selling Unit | EACH |
|---|---|
| Model No | LM17500 |
| Brand |
|
| Description | LM17500 Saft A Size 3V High Power Lithium Cylindrical Cell with Intrinsically Safe Design |
| Chemistry | Lithium Manganese Dioxide |
| Voltage | 3V |
| Nominal Capacity | 3Ah |
| Maximum Continuous Discharge Current | 1.5A |
| Maximum Pulse Discharge Current | 2A |
| Size | A |
| Width | 17.5mm |
| Height | 51.5mm |
| Weight | 28g |
| Categories |
Portable Power Product Batteries Primary (Non-Rechargeable) Lithium Batteries Lithium Cylindrical Manganese Dioxide 3V Lithium Manganese Dioxide ATEX & Intrinsic Safety |

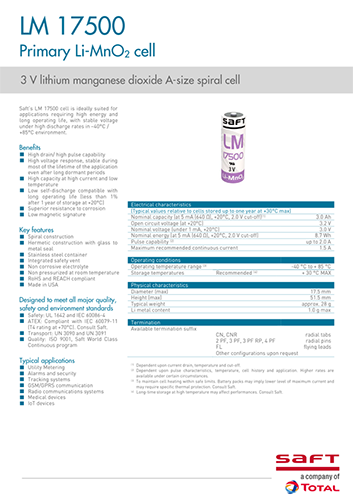

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
Saft’s broad offer includes the world’s only lithium cells independently certified and regularly audited, ensuring full and continued compliance with IEC / EN 60079-0 (Explosive atmospheres – Part 0: General requirements) and 60079-11 (Explosive atmospheres – Part 11: Equipment protection by intrinsic safety “i”) standards.
Speak to the Battery Engineers at Master Instruments to find out more about this standard.
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3090 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM METAL BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
