Fanso ER18505H
Fanso ER18505H FAT A size 3.6V 4000mAh HIgh Capacity Lithium Thionyl Chloride Battery - Bobbin Type
ER18505H primary lithium battery.
Wuhan Fanso high capacity range.
Features:
- Long shelf life: self discharge rate less than 1% at 25°C.
- High energy density (700Wh/kg).
- Long operating life.
- Stainless steel container and end caps.
- Wide temperature range: -55ºC ~ +85ºC.
- Hermetic glass-to-metal sealing.
- Non-flammable electrolyte.
- Compliant with IEC86-4 safety standard.
- UL Component Recognition MH46165.
- High and stable operating voltage.
Suitable for applications including:
- Utility metering
- Alarm and security devices
- Memory backup power
- Professional electronics
- GPS tracking system
- Military system
- Automotive electronics
- Real-time clock
Store in a cool dry place not exceeding +30ºC.
SHARE:
Selling Unit | EACH |
---|---|
Model No | ER18505H |
Brand |
![]() |
Description | Fanso ER18505H FAT A size 3.6V 4000mAh HIgh Capacity Lithium Thionyl Chloride Battery - Bobbin Type |
Application | Memory Back Up (MBU) |
Chemistry | Lithium Thionyl Chloride |
Voltage | 3.6V |
Watt Hour | 14.4Wh |
Nominal Capacity | 4Ah |
Maximum Continuous Discharge Current | 70mA |
Maximum Pulse Discharge Current | 180mA |
Size | FAT A |
Width | 18.5mm |
Height | 50.5mm |
Weight | 28g |
Inner Quantity | 24 |
Outer Quantity | 384 |
Categories |
Portable Power Product Batteries Primary (Non-Rechargeable) Lithium Batteries Lithium Thionyl Chloride Batteries Lithium Thionyl Chloride Cylindrical Bobbin-MBU type Memory Back Up (MBU) Batteries |

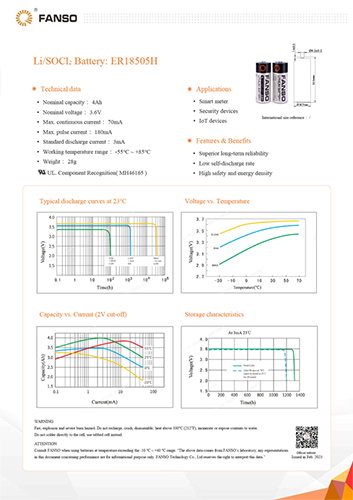

Data Sheet |
![]() |
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
NON DG UN3090 LITHIUM METAL BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
