Fanso ER14505M
Fanso ER14505M AA size 3.6V 2100mAh High Power Lithium Thionyl Chloride Battery - Spiral Wound Type (Pulse)
ER14505M primary lithium battery.
Wuhan Fanso high power range.
Features:
- Long shelf life: self discharge rate less than 1% at 25°C.
- High energy density (700Wh/kg).
- Long operating life.
- Stainless steel container and end caps.
- Wide temperature range: -55ºC ~ +80ºC.
- Hermetic glass-to-metal sealing.
- Non-flammable electrolyte.
- Compliant with IEC86-4 safety standard.
- UL Component Recognition MH46165.
- High and stable operating voltage.
Suitable for applications including:
- Active RFID tags
- Alarm and security systems
- Smoke detectors
- Memory backup power
- Medical
- Professional electronics
- Real time clock
Store in a cool dry place not exceeding +30ºC.
SHARE:
Selling Unit | EACH |
---|---|
Model No | ER14505M |
Brand |
![]() |
Description | Fanso ER14505M AA size 3.6V 2100mAh High Power Lithium Thionyl Chloride Battery - Spiral Wound Type (Pulse) |
Application | IOT Devices, Smart Meters, Security Devices |
Chemistry | Lithium Thionyl Chloride |
Voltage | 3.6V |
Watt Hour | 7.56Wh |
Nominal Capacity | 2.1Ah |
Maximum Continuous Discharge Current | 400mA |
Maximum Pulse Discharge Current | 800mA |
Size | AA |
Width | 14.5mm |
Height | 50.5mm |
Weight | 19g |
Categories |
Portable Power Product Batteries Primary (Non-Rechargeable) Lithium Batteries Lithium Thionyl Chloride Batteries Lithium Thionyl Chloride Batteries Cylindrical Spiral Wound Hi-Rate Type Memory Back Up (MBU) Batteries |

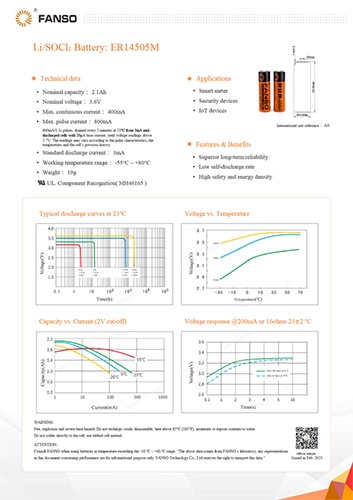

Data Sheet |
![]() |
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
NON DG UN3090 LITHIUM METAL BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
