Product Details

System Integration Information: The Pylontech Force H1 module can be integrated with many of the world's leading inverter brands.   Click to view the full list of compatible Inverters

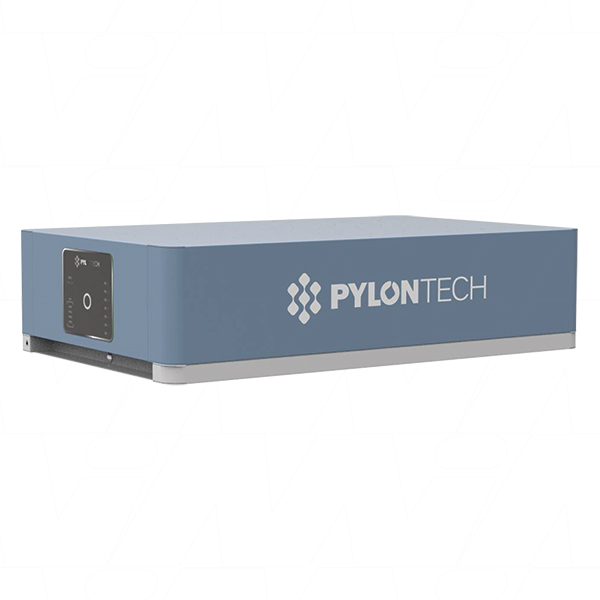

Pylontech Force H1 BMS Controller for use in the Force H1 High Voltage ESS

*Please note this is a component of the Force H1 range of ESS Modules and must be used with the FH48074 Battery Module/Cassette

BMS comes supplied with UP/US Cable Kit

The Force-H1 & H2 are a high voltage modular stackable energy storage system based on lithium iron phosphate battery technology. Its attractive furniture type design and IP55 Rating makes it ideally suited for installing as a home energy storage system.

The Force H1 & H2 battery systems are designed to be installed without the aid of the inter connection battery cables, significantly reducing the installation time. The basic module is 3.55 kWh cassette, with a 90% DOD, and is available in two shapes, the H1 wider and lower or H2 narrower and higher, to meet all space requirements.

Features & Benefits:

• Modular design from 10.65kWh to 24.86kWh enables quick and secure installation, & maintenance with no exposed wiring or connectors
• Cycle life: >5000 cycles @ 25°C with 90% DoD for daily cyclic applications
• Working Temperature Range 0°C to 50°C with excellent discharge performance & cycle life
• Storage temperature range -20~60°C
• Suitable for indoor and covered outdoor (IP55) installation
• Cathode material is made from LiFePO4 for safety performance and long cycle life
• The BMS has protection functions including over discharge, over charge, over current and high/low temperature
• Compatible with many available Hybrid inverters
• Safety Cert. VDE2510-50, IEC62619, UL1973, IEC62477-1, IEC62040-1, CEC, CE
• Clean Energy Council Approved (CEC)

Warranty: The Force-H1 & H2 comes with a standard warranty of 10 years. Register your product on the Pylontech website. A linear depreciation to a minimum of 80% of capacity over 10 years is expected and is not covered by the warranty.

SHIPPING RESTRICTIONS APPLY Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight. UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply. Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
