Discontinued product - Contact us for a possible replacement

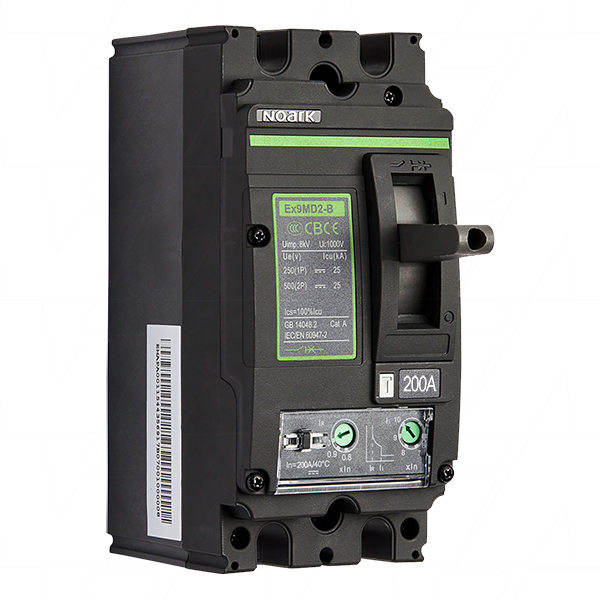

Noark N28903-2P-MCCB 200A/500VDC
N28903 MCCB EX9MD2B 200A 500V 2 Pole DC Circuit Breaker
Discontinued: If stock is zero please order N852901-2P-MCCB 200A/500VDC (65002-036A)
Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)
The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.
Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases..
Specifications
| Noark Series | EX9MD2B TM DC200 2P |
|---|---|
| Poles | 2 (250VDC per pole) |
| Current Rating (A) | 200A |
| Voltage (Max.) | 500VDC |
| Rated Insulation Voltage (VDC) Ui | 1000VDC |
| Rated Breaking Capacity | 25kA |
| Release Technology | Thermo Magnetic |
| Frame Size | 2 |
| Frame Rating | 250A |
| IP Rating (All sides/terminals) | IP40 / 20 |
| Standards | IEC/EN/AS60947-2 |
| Selling Unit | EACH |
|---|---|
| Model No | N28903-2P-MCCB 200A/500VDC |
| Brand |
|
| Description | N28903 MCCB EX9MD2B 200A 500V 2 Pole DC Circuit Breaker |
| Application | Solar, Automation, Control, Telecommunications, DC circuit applications |
| Voltage | 500V |
| Size | 200A |
| Width | 157mm |
| Height | 91.5mm |
| Length / Breadth / Depth | 70mm |
| Weight | 1.2kg |
| Categories |
DC Circuit Breakers Moulded Case Circuit Breakers Noark Moulded Case Circuit Breakers |

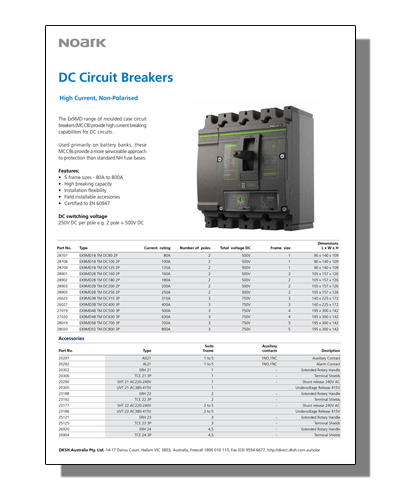

| Data Sheet |
|
