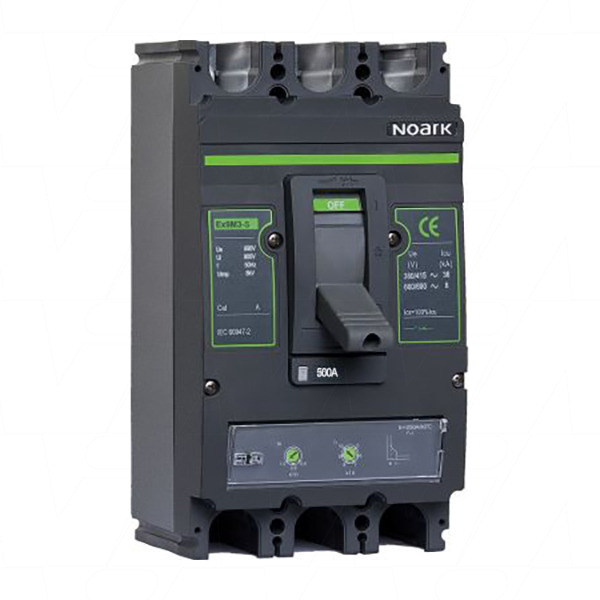

Noark N852762-3P-MCCB 500A/750VDC
N852762 MCCB EX9MD4B 500A 750V 3 Pole DC Circuit Breaker
Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)
The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.
Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases..
Specifications
| Noark Series | EX9MD4B TM DC500 3P |
|---|---|
| Poles | 3 (250VDC per pole) |
| Current Rating (A) | 500A |
| Voltage (Max.) | 750VDC |
| Rated Insulation Voltage (VDC) Ui | 1000VDC |
| Rated Breaking Capacity | 25kA |
| Release Technology | Thermo Magnetic |
| Frame Size | 4 |
| Frame Rating | 630A |
| IP Rating (All sides/terminals) | IP40 / 20 |
| Standards | IEC/EN/AS60947-2 |
Noark MCCB's are adjustable:
If the above product is out of stock, you can use the 630A rated N852763 model with the pot switch adjusted to 0.8 to still achieve a 504A rating.
Click here to see the Noark MCCB range with all adjustment ratings, or Click here to view the Noark MCCB Product Brochure
| Selling Unit | EACH |
|---|---|
| Model No | N852762-3P-MCCB 500A/750VDC |
| Brand |
|
| Description | N852762 MCCB EX9MD4B 500A 750V 3 Pole DC Circuit Breaker |
| Application | Battery Banks, Solar, Automation, Control, Telecommunications, DC circuit applications |
| Voltage | 750V |
| Size | 500A |
| Width | 195mm |
| Height | 300mm |
| Length / Breadth / Depth | 133.5mm |
| Weight | 10.2kg |
| Categories |
DC Circuit Breakers Moulded Case Circuit Breakers Noark Moulded Case Circuit Breakers |

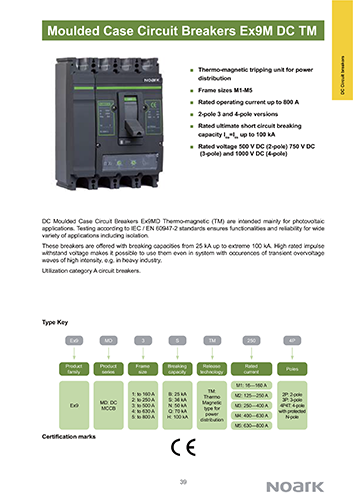

| Data Sheet |
|
