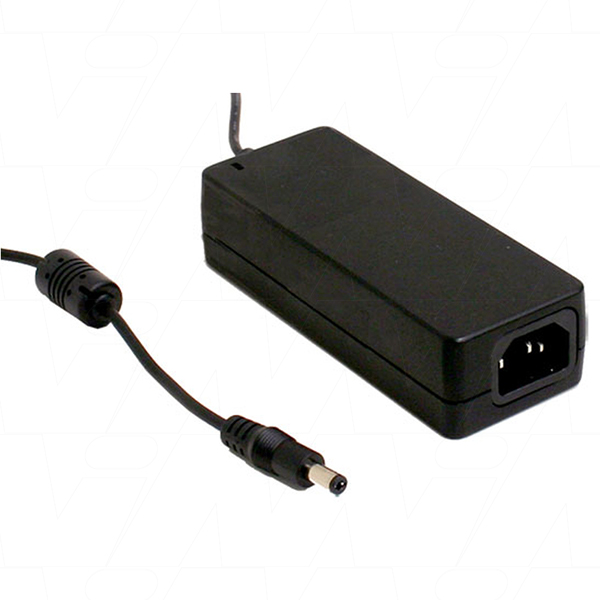

Meanwell GST60A24-P1J
60W Power Supply 24V 2.5A switchmode (No IEC320 C13 Input Lead) + 2.1mm DC Plug
60Watt AC-DC Industrial Adaptor with 2.1mm ID x 5.5mm OD DC Plug
Specifications
| Output Voltage: | 24V DC |
|---|---|
| Output Rated Current: | 2.5A |
| Current range: | 0 - 2.5A |
| Output Rated Power: | 60W (Max.) |
| Input Voltage Range: | 90-264VAC | 127-370VDC |
| Operating Temp Range: | -30 to +50 deg Celcius |
| Operating Humidity Range: | 20% to 90% RH non-condensing |
| Stoage Temp Range: | -40 to+85 deg celcius |
| Storage Humidity Range: | 10% to 95% RH |
| Protections: | Over Load: 110-150% rated output power |
| Over Voltage: 105-135% rated output voltage | |
| Over Temperature: Shut down o/p voltage, re-power on to recover |
*Please note this PSU requires an input power lead.
AC Input Power Lead
TA-124UN/ML IEC320 3-Pin C13 Style Power Lead Straight Entry with 240V SAA Australia/NZ Plug
| Selling Unit | EACH |
|---|---|
| Model No | GST60A24-P1J |
| Brand |
|
| Description | 60W Power Supply 24V 2.5A switchmode (No IEC320 C13 Input Lead) + 2.1mm DC Plug |
| Voltage | 24V |
| Width | 50mm |
| Height | 31.5mm |
| Length / Breadth / Depth | 125mm |
| Weight | 305g |
| Categories |
Portable Power Product Power Products & Accessories Power Supplies AC-DC Power Supplies Foreign Plug Power Supplies |

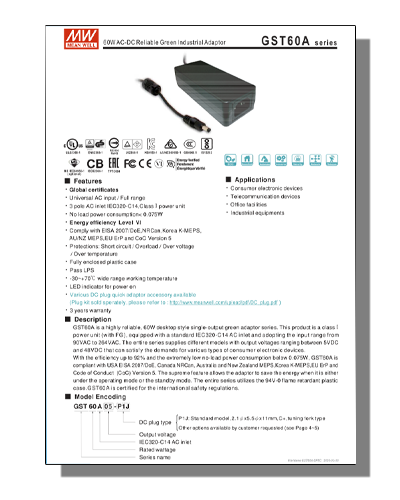

| Data Sheet |
|
