Pylontech US5000-B

Pylontech US5000-B

48V 100Ah 4.8kWh rack mounted battery module LiFePO4 4RU 15S1P

Pylontech US5000-B 48V 100Ah Rack Mounted LiFePO4 Battery Module

Each Battery comes with a 210MM long interlinking Kit to connect batteries in Parallel.

US5000-B is the latest and highest capacity version HESS battery system designed by Pylontech. It's long life characteristics, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflect the real requirements of end users and the strong technical capability of Pylontech.

Pylontech ensure the highest quality by designing & manufacturing their own Lithium Phosphate (LiFePO4) batteries and BMS boards.

Features:

  • 4RU size (161mm tall)
  • Cycle life: >6000 cycles @ 25°C with 95% DoD for daily cyclic applications
  • Charge / Discharge - Max Continuous 100A, Peak 1. 101 -120A @15 Min. Peak 2. 121-200A @15 Sec.
  • Usable capacity of 4.56kWh @ 48 VDC
  • Working Temperature Range -10°C to 55°C, (Charging 0~55°C: Discharging -10~55°C)
  • Compact and fashionable 19" rack design to suit bracket, rack or cabinet installations
  • Modular design gives the you the power to design systems from 4.8kWh to a commercial sized 1.704MWh
  • Compatible with many available Hybrid inverters
  • Backwards Compatible with existing US series products
  • Pre-charge function to protect ESS from surge currents
  • Safety Cert. CE, UL1973, UKCA, UN38.3, IEC62619, IEC63056
  • Communication Protocols: CAN, RS485
  • 15+ Year Design Life
  • 10 year Warranty
UP/US Cable Kit thumbnail
*Please note: the UP/US Cable Kit is required for connection to the Inverter/Charger

Important Information:
Please check the Pylontech compatibility guide to see if your inverter uses RS485 or Can Communication protocols.

When using RS485 protocol, This Pylontech Battery can be connected in up to 6 strings of 16 batteries for a total of 96 US5000-B batteries in parallel. No LV Hub is required.

When using Can protocol, this Pylontech Battery can be connected in up to 6 strings of 16 batteries per LV Hub (6x16=96 Batteries per LV Hub), A total of 5 LV Hubs can then be paralleled up for a total of 480 US5000-B batteries in parallel.(96x5=480 Batteries)

No Series connection allowed

External BMS
A LV-HUB communications hub is required when more than 1 string of batteries is paralleled using CAN Communications Protocol.

A single LV-HUB communications hub can manage up to 6 strings of 16 batteries for a total of 96 US5000-B batteries per LV-Hub

A total of five LV Hubs and their associated 96 batteries can then be parralled to a total 480 US5000-B Batteries.

Systems containing between 2 to 5 LV Hubs will require 1 additional LV Hub to act as the Master Hub.

Communications:

  • RS232
  • RS485
  • CAN
Cabinets & Accessories
Cabinets:
View Cabinets & Accessories for this battery module

System Integration:
The Pylontech US5000-B battery can be integrated with the Victron Inverter Charger range.

Contact us for System integration information to Victron Products:


SHARE:
Selling Unit EACH
Model No US5000-B
Brand Pylontech brand logo
Description 48V 100Ah 4.8kWh rack mounted battery module LiFePO4 4RU 15S1P
Application Home Power Storage, Telecommunications, Off Grid power, Industrial Power, Remote Infrastrucure Power
Chemistry Lithium Iron Phosphate (LiFePO4)
Voltage 48V
Watt Hour 4800Wh
Nominal Capacity 100Ah
Maximum Continuous Discharge Current 100A
Size 4RU
Width 442mm
Height 161mm
Length / Breadth / Depth 420mm
Weight 39000g
Categories Lithium Ion Batteries
Lithium Iron Phosphate Battery Packs
48 Volt Series LiFePO4
Rack Mount Battery Systems
Rack Mount Batteries
Pylontech Rack Mount Battery Modules
Telecommunication Base Stations

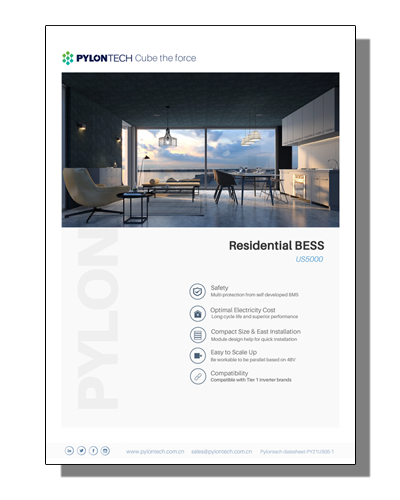

Data Sheet Datasheet PDF Thumbnail icon Datasheet PDF Thumbnail icon Datasheet PDF Thumbnail icon

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

CEC approved tick logo

This product appears on the Clean Energy Council list of currently approved batteries (energy storage devices)

View the full list here

Compatibility List of Pylontech ESS and Inverters. View the full list here

For the Pylontech Catalogues & Brochures Page - Click here

Shipping restrictions Class 9 Dangerous Goods icon

SHIPPING RESTRICTIONS APPLY

Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.

UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.

Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
