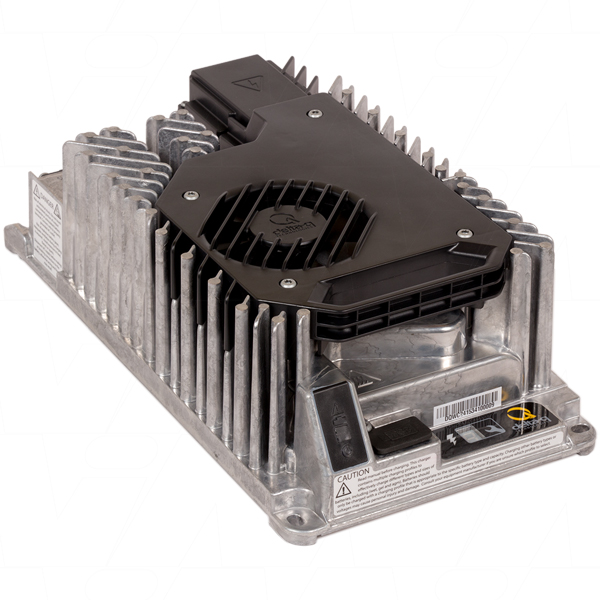

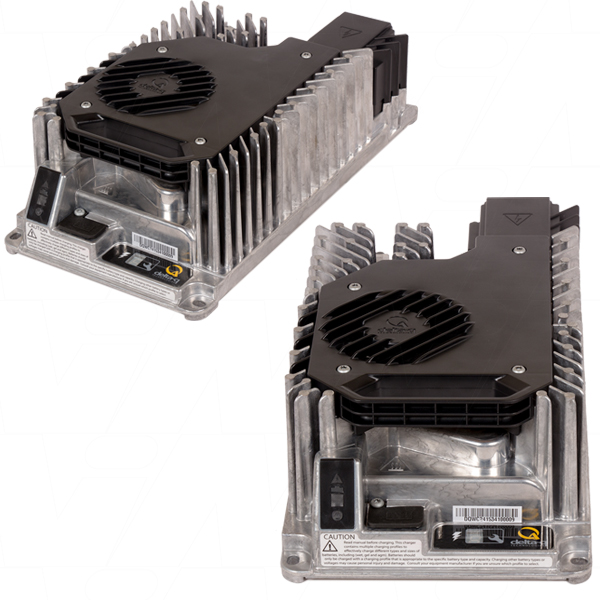

Delta-Q DQIC1200-48/25CAN
941-0010 48V 25A Delta-Q IC1200 Series IP66 SLA & Lithium Battery Charger with CANBus
This Delta-Q IC1200 Series is a 48V 25A (1200W) Industrial battery charger suitable for charging lead acid & lithium batteries.
CAN Bus model for simple system integration
Designed for Reliability:
Delta-Q IC Series chargers are designed to provide automotive-level product reliability and validated for a long service life in difficult conditions. All Delta-Q chargers are built in a world-class facility for manufacturing high-reliability solutions
Easy to integrate:
CAN bus communication enables a link between the IC1200 and other components. This can provide for safe lithium-ion battery charging, and machine diagnostics and servicing information. IC Series chargers store charge cycle data, which is accessible using their built-in USB host port. The port can also support software and charge profile updates.
Global flexibility:
The IC1200 Charger has a broad AC input range of 85-270V, enabling global use on any single-phase electrical grid. Wide regulatory approvals allow the IC1200's use in electric vehicles and industrial equipment sold internationally. All IC Series chargers have customizable AC and DC cabling, providing simpler SKU management and tailoring charger integration to customer demand.
Battery charging performance:
In its extensive battery lab, Delta-Q has developed more than 200 charge profiles for lead acid (wet/flooded, AGM, gel) and lithium batteries. New profiles can be developed for manufacturers as part of the design-in process. The company has a proven track record of balancing charging time, performance and longevity, and application needs.
Software and accessories:
Through software and accessories, original equipment manufacturers (OEMs) can customize their Delta-Q battery charging solutions for better application fit and additional features for the customer.
Delta-Q offers software to support charger programming, battery troubleshooting and charge cycle data analysis. Chargers can be customized with different AC and DC cabling, remote LED signaling, connectors, temperature sensors, and carrying handles. Speak to our in-house engineers to find out more.
Charger requires the following cabling: *sold separately

DQIC-AC3M AC Input Lead

DQIC-DC HARNESS DC Output Harness
Specifications:
DC Output | 48VDC |
---|---|
Max DC Output Voltage | 72V |
Max DC Output Current | 25A |
Max DC Output Power | 1200W |
Deep Discharge Min. Voltage | 2.4V |
Maximum C3 interlock signal current | 0.5A |
Reverse Polarity | Electronic protection w auto-reset |
Short Circuit | Electronic current limit |
AC Input Range | 85 - 270VAC |
Nominal AC Input Voltage | 100-240VAC |
Nominal AC Input Frequency | 50 / 60Hz |
Max. AC Input Current | 14.5A |
Efficiency | 92% at full load 240VAC 48VDC |
Ingress Rating | IP66 (NEMA4) |
Operating Temperature | -40°C to +65°C (Derated >40°C) |
Main Features:
- Multi Colour LED Indicator for battery source
- Numeric display for charge profile & alarm/fault codes
- Preloaded with 16 lead-acid & 2 Lithium charge profiles
- Custom profiles available
- Auto-recharge for low voltage in maintenance mode
- CANbus communication for machine integration or lithium BMS
Selling Unit | EACH |
---|---|
Model No | DQIC1200-48/25CAN |
Brand |
![]() |
Original Brand | Delta-Q 941-0010 |
Description | 941-0010 48V 25A Delta-Q IC1200 Series IP66 SLA & Lithium Battery Charger with CANBus |
Application | Aerial work platforms, Fork lifts, floor care machines, utility vehicles, golf carts, |
Chemistry | Lithium Iron Phosphate / Lead Acid / LiIon-LiPo |
Voltage | 48V |
Size | 25A |

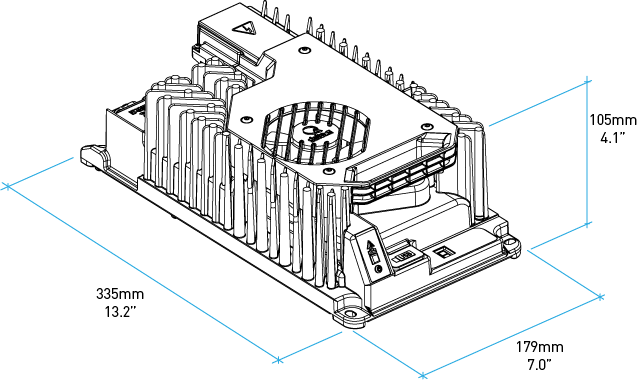

Width | 179mm |
Height | 105mm |
Length / Breadth / Depth | 335mm |
Weight | 4100g |
Categories |
Battery Chargers / Analysers / Testers Lead Acid Battery Chargers 48V Battery Chargers Lithium Ion/Polymer Chargers Industrial LiIon/LiPo Capable Chargers Lithium Iron Phosphate Chargers Multi Chemistry Chargers SLA/GEL Type Chargers LiFePO4 Type Chargers Delta-Q IC1200 Series |

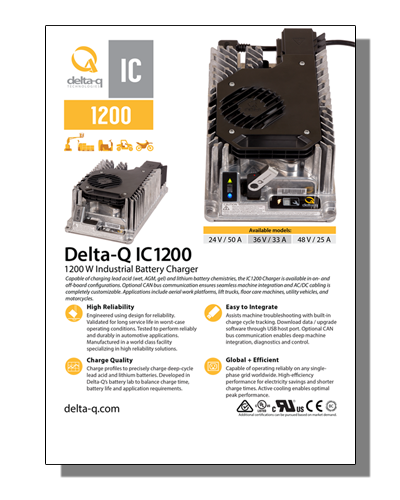

Data Sheet |
![]() ![]() |
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
Delta-Q Charge Profiles
This product is supplied with 18 pre-loaded charge profiles. View the list.
The Delta-Q IC Series can store up to 25 charge profiles - please contact a MI Battery Engineer to custom program a profile specific to your requirements.
