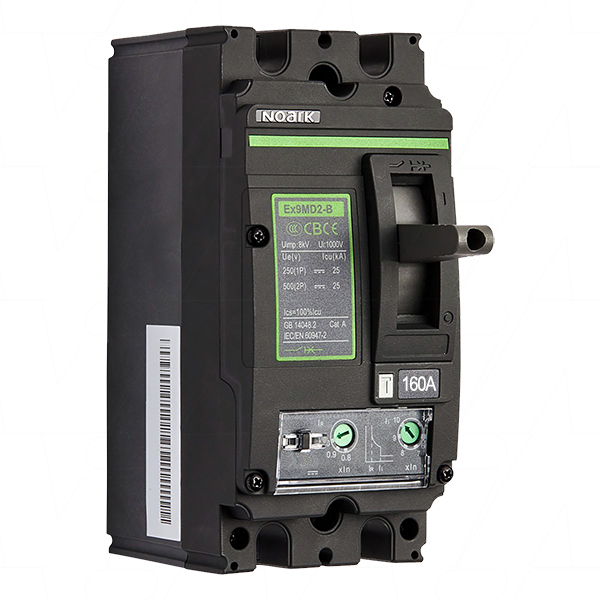

Noark N852899-2P-MCCB 160A/500VDC
N852899 MCCB EX9MD2B 160A 500V 2 Pole DC Circuit Breaker
Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)
The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.
Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases..
Specifications
| Noark Series | EX9MD2B TM DC160 2P |
|---|---|
| Poles | 2 (250VDC per pole) |
| Current Rating (A) | 160A |
| Voltage (Max.) | 500VDC |
| Rated Insulation Voltage (VDC) Ui | 1000VDC |
| Rated Breaking Capacity | 25kA |
| Release Technology | Thermo Magnetic |
| Frame Size | 2 |
| Frame Rating | 250A |
| IP Rating (All sides/terminals) | IP40 / 20 |
| Standards | IEC/EN/AS60947-2 |
Noark MCCB's are adjustable:
If the above product is out of stock, you can use the 180A rated N852900 model with the pot switch adjusted to 0.9 to still achieve a 162A rating.
Click here to see the Noark MCCB range with all adjustment ratings, or Click here to view the Noark MCCB Product Brochure
| Selling Unit | EACH |
|---|---|
| Model No | N852899-2P-MCCB 160A/500VDC |
| Brand |
|
| Description | N852899 MCCB EX9MD2B 160A 500V 2 Pole DC Circuit Breaker |
| Application | Solar, Automation, Control, Telecommunications, DC circuit applications |
| Voltage | 500V |
| Size | 160A |
| Width | 70mm |
| Height | 157mm |
| Length / Breadth / Depth | 96.5mm |
| Categories |
DC Circuit Breakers Moulded Case Circuit Breakers Noark Moulded Case Circuit Breakers |

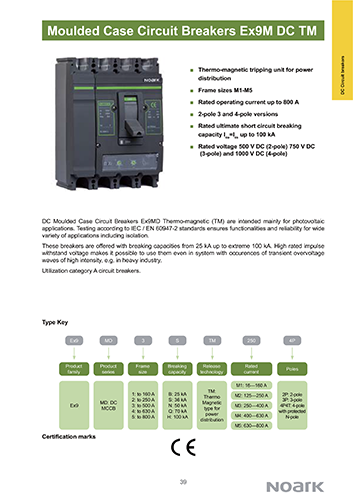

| Data Sheet |
|
