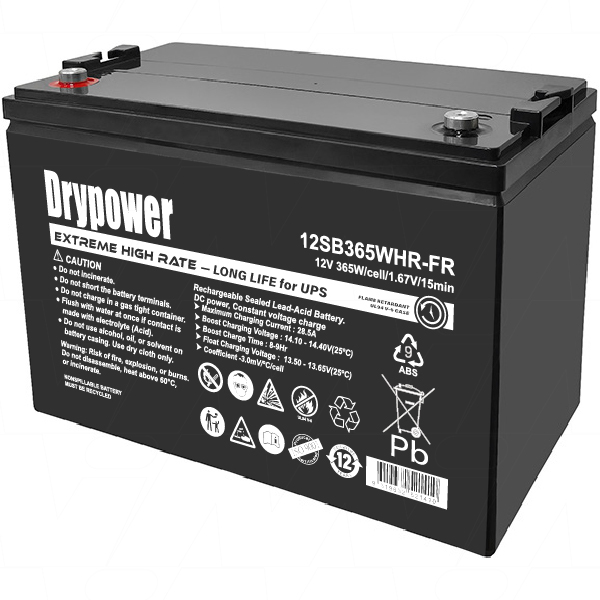

Drypower 12SB365WHR-FR

Drypower 12SB365WHR-FR

12V 95Ah 365W/Cell (15min) EXTREME High Rate Long Life battery

The new Drypower EXTREME High Rate Long Life series has been designed specifically for extreme high rate discharge & long design life in floating service applications.

12SB365WHR-FR 12V 365W/Cell down to 1.67V (15 Minute Rate)

Suitable for applications such as:

  • UPS
  • Data Centres
  • Telco Base Stations
  • Emergency Power Supplies
  • Security
  • Fire Alarms
  • Emergency Lighting

Improvements to the batteries internal grid structure has resulted in improved energy density & a more stable performance wherever high power & short-term backup discharge are required.

Features & Benefits

  • LONG design life in float service
  • High rate discharge construction.
  • Low self-discharge rate and high reliability.
  • Complies with IMDG Special Provision 238.
  • Complies with IATA/ICAO Special Provision A67 for air transport.
  • Extreme energy density, small footprint, increased power (15% to 20% above standard high-rate batteries).
  • Uses Absorbed Glass Mat (AGM) technology, and the electrolyte is absorbed in fiberglass separators. The gas recombination efficiency is up to 99%.
  • UL94 V-0 Flame Retardant Case
  • 9-12 Year design life
  • Fully recyclable

Suitable replacement for: PHR-12350, XP-12350, UPS12-350 MR, HRL12330W, HR3500, 12HX330, S12V370, PRC-12100S, RA12-90H, HFS12-420W-X

Selling Unit EACH
Model No 12SB365WHR-FR
Brand Drypower brand logo
Description 12V 95Ah 365W/Cell (15min) EXTREME High Rate Long Life battery
Application UPS, Data Centres, Telco Base Stations, Emergency Power Supplies, Security, Fire Alarms, Emergency Lighting
Chemistry Sealed Lead Acid (SLA)
Voltage 12V
Watts Per Cell 365W
Nominal Capacity 95Ah
Termination F8 (M6 Bolt)
Width 306mm
Height 213mm
Length / Breadth / Depth 168mm
Weight 29500g
Categories Sealed Lead Acid (SLA-VRLA) Batteries
SLA/AGM Standby Power Batteries
SLA/AGM High Rate UPS Power Batteries
SLA/AGM Extreme High Rate Long Life
Drypower UPS Batteries
Drypower Extreme High Rate Long Life

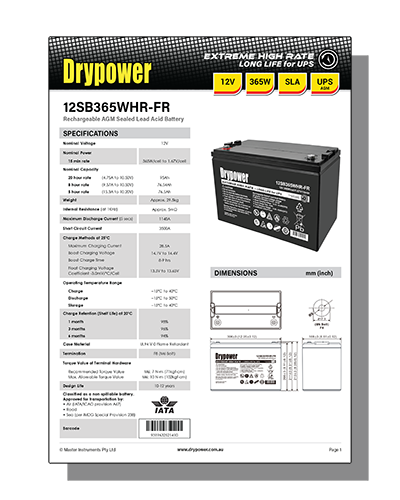

Data Sheet Datasheet PDF Thumbnail icon
