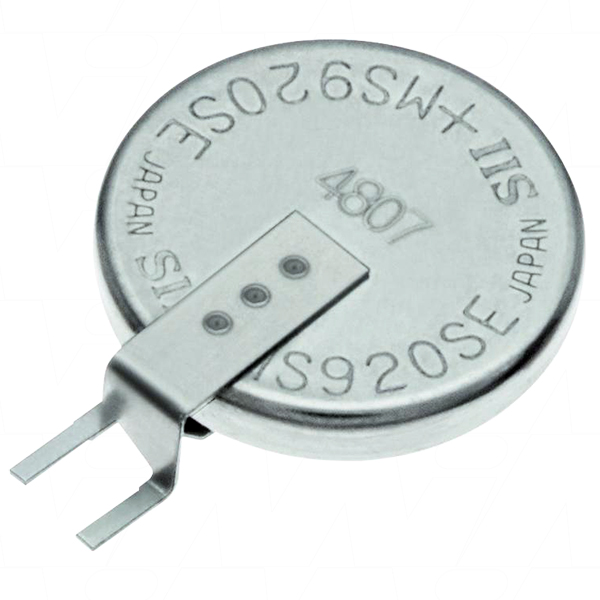

Seiko MS920SE-FL27E
Seiko Rechargeable Lithium Coin Cell Battery Vertical PCB fitment replaces ML920SE-FL27E and MS920S/DN
Manganese Silicon lithium rechargeable batteries, developed by SII, use silicon oxide as the anode and lithium manganese composite oxide as the cathode. As a result, they offer long cycle life and highly stable over-discharge characteristics
Features:
- Large discharge capacity for high operational voltage of 3.3V to 2.0V
- Long Cycle life of over 100 cycles under charge/discharge conditions of 3.1V to 2.0V (100% DoD)
- Excellent & stable over-discharge characteristics even after the battery has been discharged down to 0.0V
- Wide operating Temp range of -20 to +60
- Battery not subject to RoHS directives as they do not contain any restricted substances
- Approved by UL - MH15628
Suitable for Memory backup Applications & RTC in Digital Camera, GPS, Data Recorders, PC applications and Smart Phones
*IMPORTANT: MS920SE is not reflowable. Please mount them on PCB by hand soldering.
| Selling Unit | EACH |
|---|---|
| Model No | MS920SE-FL27E |
| Brand |
|
| Description | Seiko Rechargeable Lithium Coin Cell Battery Vertical PCB fitment replaces ML920SE-FL27E and MS920S/DN |
| Application | Memory Back Up (MBU) |
| Chemistry | Lithium Manganese |
| Voltage | 3V |
| Watt Hour | 0.033Wh |
| Nominal Capacity | 11mAh |
| Termination | PCB vertical mount S+ S- 2.5mm offset |
| Width | 9.5mm |
| Height | 2.1mm |
| Weight | 0.47g |
| Outer Quantity | 3200 |
| Categories |
Portable Power Product Memory Back Up (MBU) Batteries Batteries Secondary (Rechargeable) Lithium Rechargeable Coin Cell Seiko Rechargeable Coin Cells |

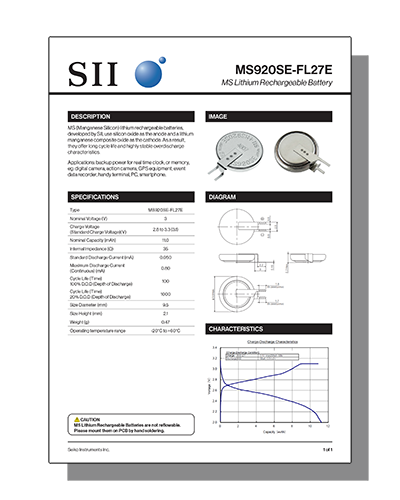

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
NON DG UN3480 LITHIUM ION BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
