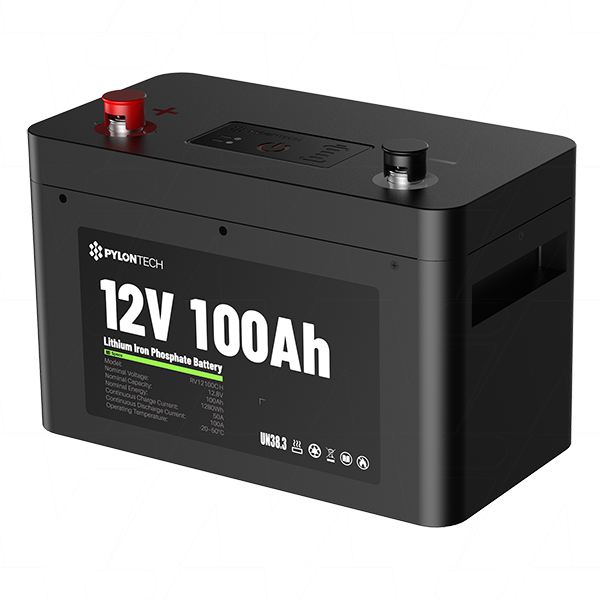

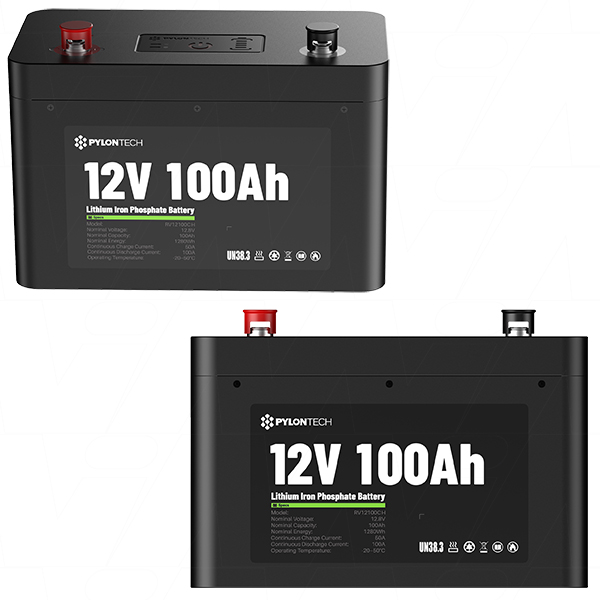

Pylontech RV12100CH
12.8V 100Ah 1280Wh LiFePO4 battery with SoC Indicator and up to 8 in parallel capability. IP20 Metal Case
The RV12100CH is a 2nd generation battery solution designed for energy storage applications and is an ideal alternative to deep cycle lead acid batteries.
Suitable for use in Off-Grid & Battery back-up applications ,Recreational vehicles, trucks and small cabins, this Pylontech battery is approximately 50% lighter, with 30% higher energy density than comparable capacity lead-acid batteries.
Featuring an advanced "array aware" BMS with multiple safety functions, and capable of over 4000 cycles, the RV12100CH can be used in systems of up to 8 in parallel (10.24kWh). The self-balancing feature ensures all batteries in the system are balanced to ultimately increase service life and maximise your ROI.
The top mounted interface panel features a press-button State of Charge (SoC) indicator for fast capacity checks, Handy ON/OFF button to isolate when in storage, plus LED indicator for battery status or error identification.
One of the big improvements to this tried and tested product includes the addition of an internal heating film to aid in the charging of the batteries if exposed to sub-zero environments. This innovative feature basically uses a battery charger to engage the heater, which increases the internal temperature of the battery to reach 0 degrees Celcius, to then start charging the battery.
The RV12100CH utilises cutting edge LFP cells encased in a rigid frame, embedded smart BMS and housed in a ruggedised IP20 rated metal case.
*We strongly recommend only using this battery is an indoor or moisture-free environment.

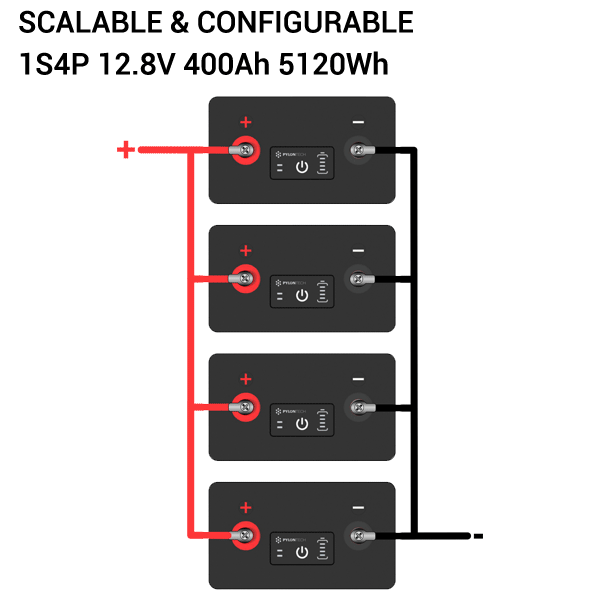

Important Information: PARALLEL CONNECTION CAPABLE
This Pylontech Lithium Iron Phosphate battery can be connected UP TO 8P in parallel* - NO SERIES CONNECTION ALLOWED
*See Product User Manual or Datasheet for more information.
Specifications:
| Voltage (V) | 12.8V |
|---|---|
| Capacity (Ah) | 100Ah |
| Watt Hour (Wh) | 1280Wh |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | >4000 cycles (80% DoD @ 25°C) |
| Max. continuous discharge current | 100A |
| Max. PEAK discharge current | 200A (10 seconds) |
| Discharge cut-off voltage | 10V |
| Charge Voltage | 14.0V - 14.4V |
| Max. continuous charge current | 100A |
| Operating discharge temperature | -20°C to +50°C |
| Operating charge temperature | -20°C to +50°C (charger engages heater film until battery reaches 0°C and then begins charging) |
| Storage temperature | -20°C to +60°C |
| State of Charge display | Yes |
| Short circuit protection | Yes |
| Ingress Rating | IP20 rating |
| Series connection allowed* | NO |
| Parallel connection allowed* | Up to 8P* (max. continuous discharge current of 1C when in parallel) |
| Case structure | Rugged mechanical design |
| Certifications | IEC62619, UN38.3 approved |
| Warranty | 3 years |
* No Series Connection Allowed.
| Selling Unit | EACH |
|---|---|
| Model No | RV12100CH |
| Brand |
|
| Description | 12.8V 100Ah 1280Wh LiFePO4 battery with SoC Indicator and up to 8 in parallel capability. IP20 Metal Case |
| Application | Lead Acid Replacement, Off-Grid Systems, Caravan/RV Storage, Industrial Market Applications, Deep Cycle |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Voltage | 12.8V |
| Watt Hour | 1280Wh |
| Nominal Capacity | 100Ah |
| Maximum Continuous Discharge Current | 100A |
| Termination | M8 |
| Size | 4S4P |
| Width | 300mm |
| Height | 210mm |
| Length / Breadth / Depth | 160mm |
| Weight | 12kg |
| Categories |
IEC62619 Mobile Applications IEC62619 Stationary Applications IEC62619 Marine Applications Lithium Ion Batteries Lithium Iron Phosphate Battery Packs 12 Volt Series LiFePO4 Pylontech Stand Alone Batteries Lithium Iron Phosphate Modules |

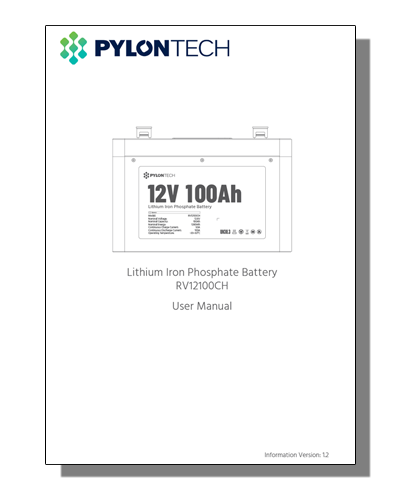

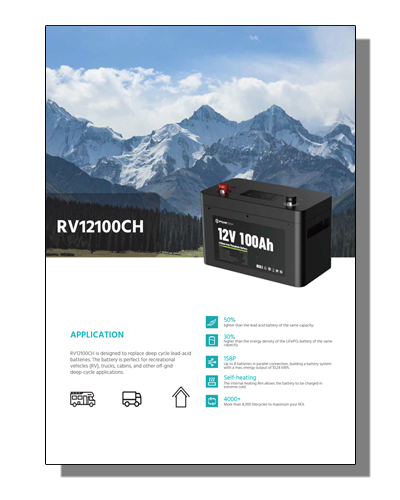

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
This product is certified to UN38.3
This battery has been tested & complies with the UN Model Regulation, Manual of Test & Criteria, Part III, Subsection 38.3
Read the UN38.3 Information and FAQ's Document.
This Battery Pack has been tested and complies with IEC 62619:2022
To view all compliant batteries, please click here
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
