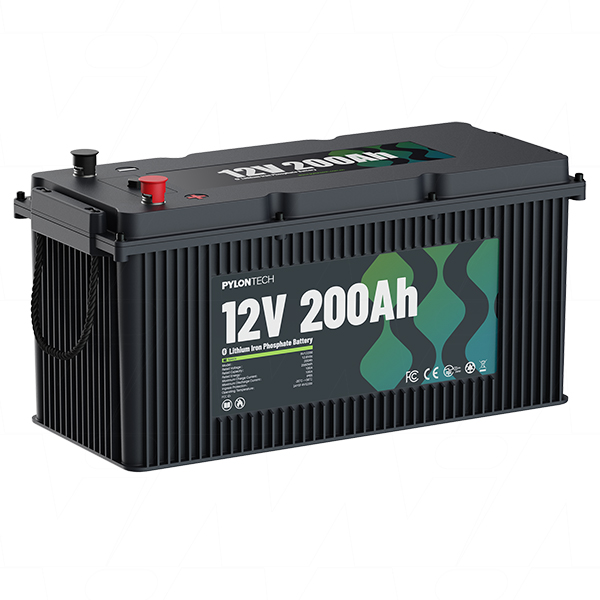

Pylontech RV12200

The high capacity RV12200 is the latest addition to Pylontech's all-purpose lithium range. It has been designed for energy storage applications and is an ideal alternative to deep cycle lead acid batteries.

Suitable for use in 4x4 and recreational vehicles, Marine applications, trucks, cabins and other off-grid applications, this Pylontech battery is approximately 50% lighter, with 30% higher energy density than comparable capacity lead-acid batteries.

The advanced "array aware" BMS, features multiple safety functions, is capable of over 4000 cycles and can be scaled into systems of up to to 16 modules in 1S16P, 2S8P or 4S4P configurations. The embedded BMS's auto-balancing function ensures all batteries in the system are balanced to ultimately increase service life and maximise your ROI.

The RV12200 features Bluetooth to enable real-time monitoring & system configuration via the Pylontech Auto App. And when coupled with the KIT-C1* communications hub, allows even more control over your system performance. *Available separately.

The IP65 ruggedised casing and front terminal construction allows for easier installations. The innovative heating film aids in the charging of the batteries if exposed to sun-zero environments. This feature basically uses a battery charger to engage the heater, which increases the internal temperature of the battery to reach 0 degrees celcius, to then start charging the battery.

*PLEASE NOTE - Long Term Storage - Sleep Mode
To maximise storage life, the RV12200 is shipped in Sleep Mode with the Bluetooth function deactivated. To activate the RV12200, simply connect a battery charger with a current greater than 1 Amp. The battery can be put back into sleep mode for long term storage using the KIT-C1 accessory.

Important Information: SERIES AND PARALLEL CONNECTION CAPABLE

This Pylontech Lithium Iron Phosphate battery can be connected up to 16 modules per system in configuration of UP TO 1S16P, 2S8P or 4S4P. *See Product User Manual or Datasheet for more information

Bluetooth via Pylontech Auto App

Go to the Google Play store
Go to the Apple App Store

Communications

Using the optional KIT-C1 communications box for this model can link multiple Parallel batteries to the app (and can extend Bluetooth range ) it does not allow system integration via A Victron Energy GX device for this Model *Click to view

View the Pylontech Auto App Quick Guide

IP65 rated and suitable for marine and high moisture exposed installations

Scalable up to 16 units to make systems up to 40.86kWh

In-built Heater Film for use in Sub-Zero conditions

Bluetooth Enabled

up to 4000+ cycle to 80% DoD

100A Max. Cont. Discharge (200A Peak for 5 seconds)

Advanced "array aware" BMS

Lightweight

Specifications:

Voltage (V)	12.8V
Capacity (Ah)	200Ah
Watt Hour (Wh)	2560Wh
Chemistry	LiFePO4 (Lithium Iron Phosphate)
Cycle Life	>4000 cycles (80% DoD @ 25°C)
Max. continuous discharge current	100A
Max. PEAK discharge current	200A (5 seconds)
Discharge cut-off voltage	10V
Charge Voltage	14.0V - 14.6V
Max. continuous charge current	100A*
Operating discharge temperature	-20°C to +50°C
Operating charge temperature	-20°C to +50°C (charger engages heater film until battery reaches 0°C and then begins charging)
Storage temperature	-20°C to +60°C
State of Charge display	Yes
Ingress Rating	IP65 rating
Series connection allowed*	YES - Up to 4S @ 200Ah
Parallel connection allowed*	YES - Up to 16P* @ 12.8V (max. continuous discharge current of 0.5C when in parallel)
Bluetooth	YES - Pylontech Auto App
Case structure	Rugged mechanical design
Certifications	IEC62619, UTELEC, FCC, CE, Bluetooth SIG
Warranty	3 years
