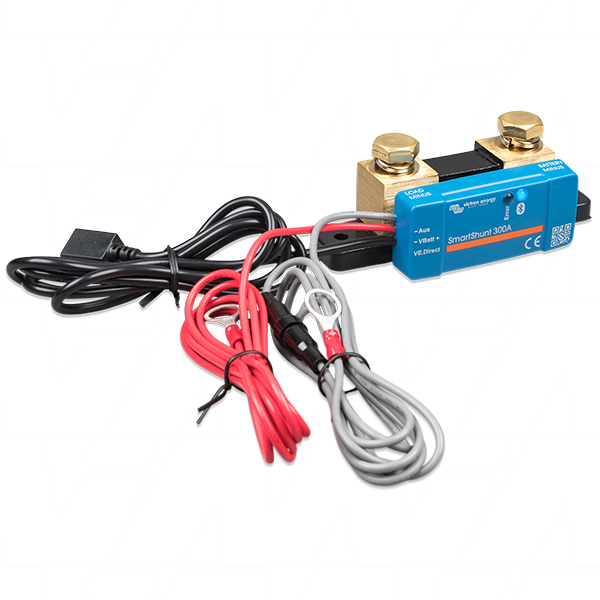

Smart Shunt IP65 300A/50mV All-in-one Battery Monitor

The SmartShunt IP65 is an all-in-one battery monitor, only without a display. Your phone acts as the display.

The SmartShunt IP65 is water resistant and is available in a 300A, 500A, 1000A or 2000A version.

The SmartShunt IP65 connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Alternatively, the SmartShunt IP65 can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.

The SmartShunt is equipped with Bluetooth, has a VE.Direct port and an auxiliary connection that can be used to monitor a second battery, for midpoint monitoring, or to connect a temperature sensor.

Differences compared to BMV-712 Battery Monitor:

  • No visual and audible alarm (alarms are only visible via the VictronConnect app or GX device).
  • No programmable relay.
  • Waterproof.
  • The shunt is attached to the battery monitor unit.



Specifications:

  • Supply voltage range: 6,5 - 70 VDC
  • Current draw: < 1mA
  • Input voltage range: auxiliary battery 6,5 - 70 VDC
  • Battery capacity: (Ah) 1 - 9999 Ah
  • Operating temperature range: -40 +50°C (-40 - 120°F)
  • IP65 Rated
  • Measures voltage of second battery, or temperature, or midpoint: Yes
  • Temperature measurement range: -20 +50°C
  • VE.Direct communication port: Yes



SHARE:
Selling Unit EACH
Model No Smart Shunt 300A/50mV IP65
Brand Victron Energy brand logo
Original Brand Victron Energy SHU065130050
Description Smart Shunt IP65 300A/50mV All-in-one Battery Monitor
Size 300A
Width 120mm
Height 44mm
Length / Breadth / Depth 38mm
Categories Battery Management & Monitoring
Victron Energy Shunts
Victron Energy SmartShunts
Test & Measurement Equipment
Shunts

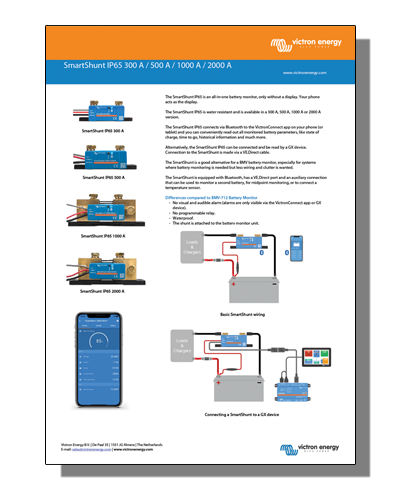

Data Sheet Datasheet PDF Thumbnail icon Datasheet PDF Thumbnail icon

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

Victron Connect app compatible

VictronConnect Compatible

VictronConnect lets you get live status information and configure any Victron Energy products via either Bluetooth or direct cable connection. Connect to Bluetooth equipped products, or non-Bluetooth equipped products using VE.Direct Bluetooth Smart Dongle. Connect directly to equipment using the VE.Direct to USB Interface (USB Type-A) or VE.Direct to Type C Interface (USB Type-C) cables.

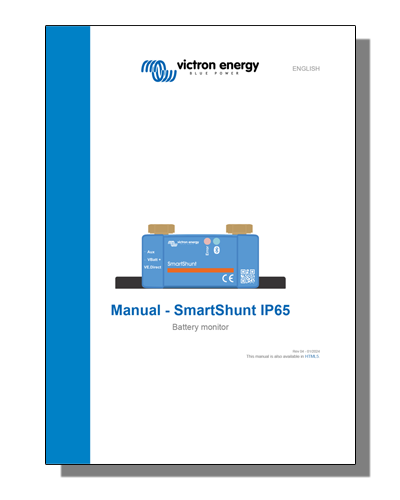

Find out more about VictronConnect here, or download the App via these links. Click here to download the VictronConnect Manual.
