Enepower EBC20V-ODFAN

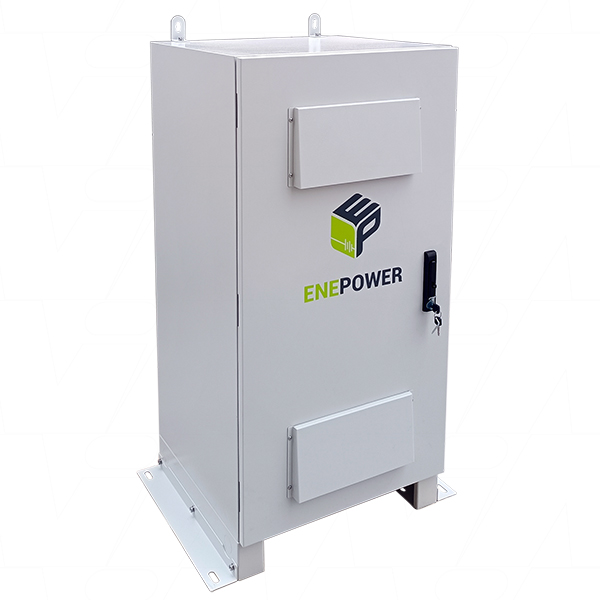

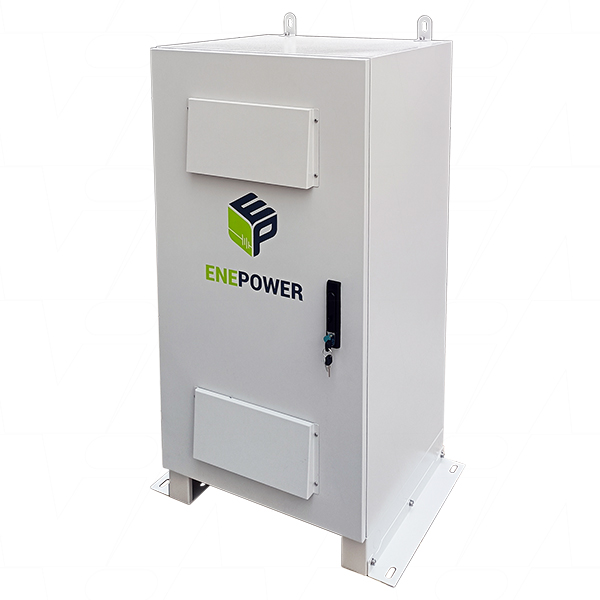

EBC20V-ODFAN Enepower IP55 Rated Battery cabinet suitable to vertically house up to 4 x 4RU sized 19" battery modules (up to 20.48kWh, max 480mm deep) and suitable for modules from Pylontech, Drypower, AERL, ZYC, Mictronix and many more.

Battery Storage Capacity:

• 4RU Modules x 4
• 3RU Modules x 6

Features:

• Heavy Duty Galvanised steel construction - Colour RAL7035

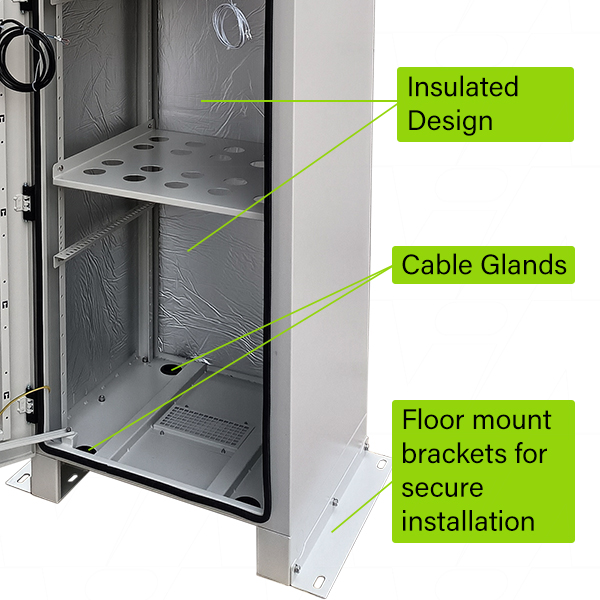

• 10mm thick NBR insulation
• IP55 ingress rating

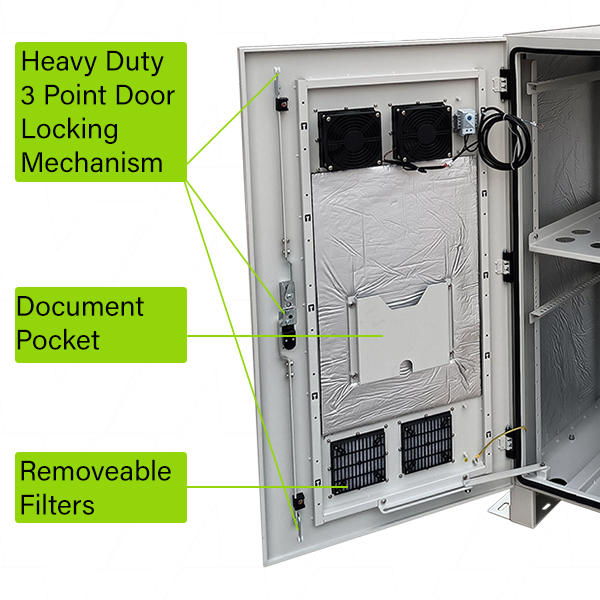

• Removable Front Metal door with three-point keyed-alike handle locks with staple for a Padlock

  • Door Stay set at 120°

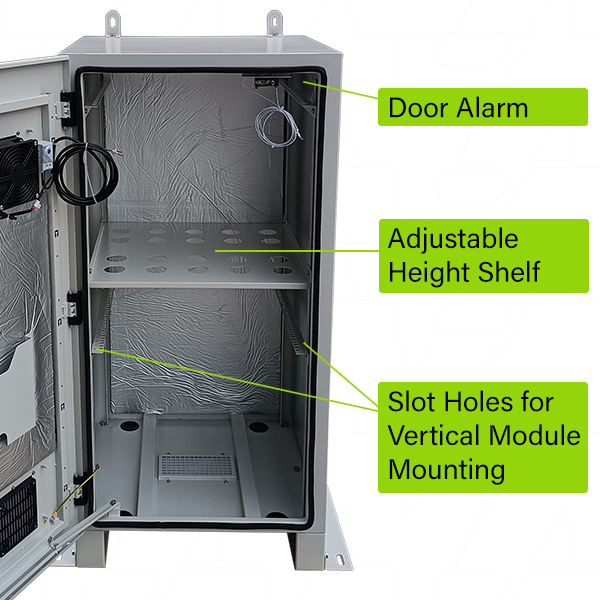

  • Door Alarm

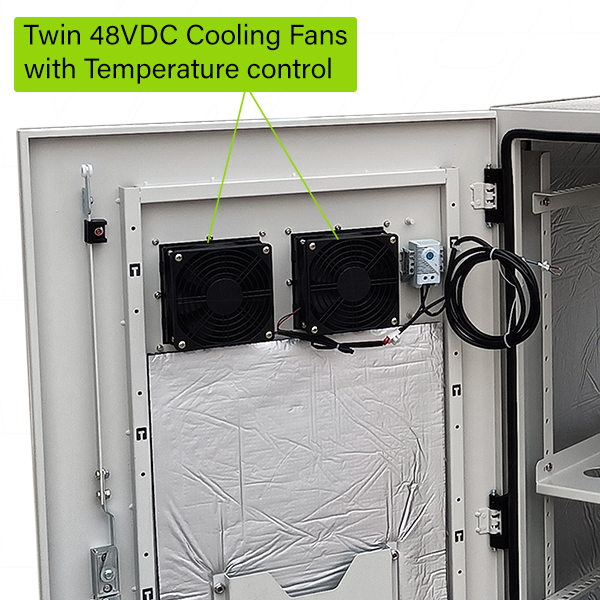

• Twin 48VDC Cooling fans with temperature control
  • A 24/48 DCDC converter is required for 25 Volt battery Systems
• Adjustable height solid shelf
• 4 x Cable glands in base plate
• Floor mount Plinths with full length L Brackets to secure cabinet

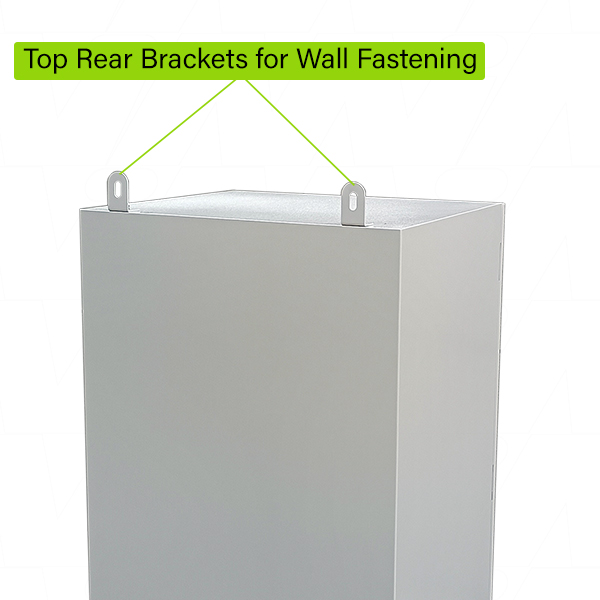

• Top brackets for secure wall fastening
• Handy Document pocket
• Removable filters
• Stackable 2 cabinets high to house up to 40.96kWh of storage

Warranty: The EBC20V-ODFAN comes with a standard warranty of Three (3) years.

Compatible Battery Modules

• 4RU size such as Pylontech US5000, Drypower DP-12400-R, DP-24200-R, DP-51100-R, Mictronix MPS-24-2.5, Mictronix MPS-48-5.1
• 3RU size such as Pylontech US3000, Pylontech UP2500*, ZYC Simpo 5000, AERL LiFe2-5120S
• 2RU size such as Pylontech US2000

*Fans require a Victron Orion TR 24/48 DC-DC converter when using 24V Battery systems

Alternative: If you need more storage capacity in the same size cabinet, consider the EBC26H-ODFAN

The EBC26H-ODFAN  horizontally houses up to 5 x 4RU sized Modules for a total capacity of 25.6kWh.
