Saft LSP14500-70F

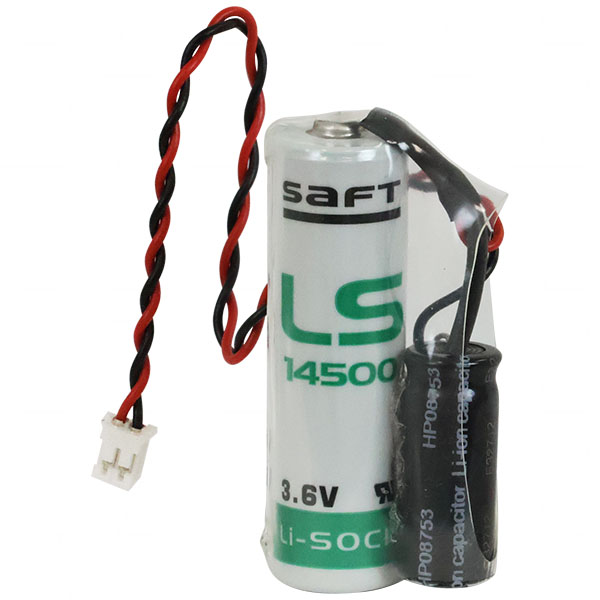

LSP14500-70F AA size Saft hybrid primary lithium cell (bobbin type) assembled in parallel with a 70 Farad LIC
Saft's Li-SOCl2 range provides high energy, high voltage, high pulse capability, long life, wide temperature range (-60°C to +85°C). The LS cell product range has been independently assessed and tested to the relevant parts of IEC 60079-0 and IEC 60079-11 in the IECEx system. This allows them to be considered for applications in hazardous locations and potentially explosive atmospheres.
The hybrid LSP range consists of a LS bobbin cell assembled in parallel with a pulse support component — an LIC (Lithium Ion Capacitor)
The hybrid construction adds the advantage of the high current pulse capability of the LIC to the high energy density (capacity) of the Li-SOCl2 cell. Effectively, this ‘best of both worlds’ approach meets the high pulse and long lifetime requirements of the smart metering and internet of things (IoT) markets.
Termination: Supplied with JST PHR-2 Connector CE-D
| Selling Unit | EACH |
|---|---|
| Model No | LSP14500-70F |
| Brand |
|
| Description | LSP14500-70F AA size Saft hybrid primary lithium cell (bobbin type) assembled in parallel with a 70 Farad LIC |
| Application | Smart Metering, Internet of Things (IoT) |
| Chemistry | Lithium Thionyl Chloride + LIC |
| Voltage | 3.6V |
| Watt Hour | 9.36Wh |
| Nominal Capacity | 2.6Ah |
| Size | AA |
| Width | 25.2mm |
| Height | 50.5mm |
| Length / Breadth / Depth | 14.7mm |
| Categories |
Portable Power Product Batteries Primary (Non-Rechargeable) Lithium Batteries Lithium Thionyl Chloride Batteries Lithium Thionyl Chloride Cylindrical Bobbin-MBU type Lithium Thionyl Chloride + Super Capacitor Memory Back Up (MBU) Batteries 3.6V Lithium Thionyl Chloride - Bobbin Type Saft Lithium Thionyl Chloride + Super Capacitor Water Utility Batteries ATEX & Intrinsic Safety Water Utilities |

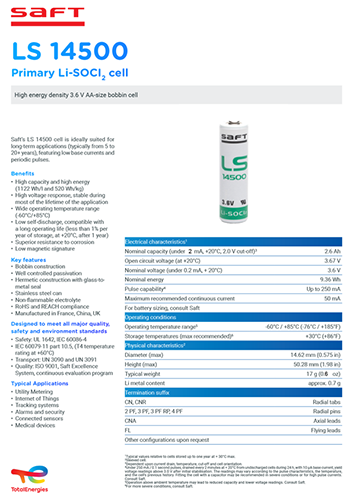

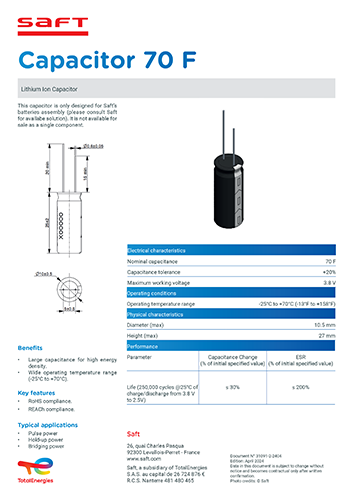

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
This component complies with ATEX / IECEx standards.
Indent Item
PLEASE NOTE: This is an indent item (not stocked) and will need to be ordered in from the factory. Minimum order quantities (MOQ), Indent freight charges and lead times will apply. Please contact us for more information.
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
NON DG UN3090 LITHIUM METAL BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
