Saft LSP26500-20F

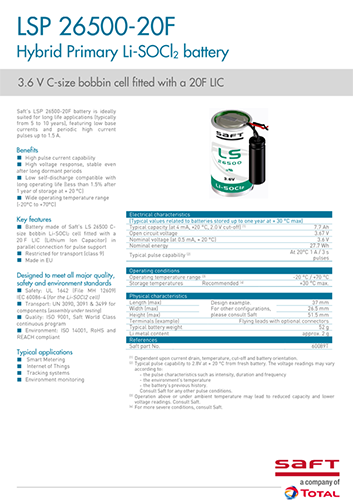

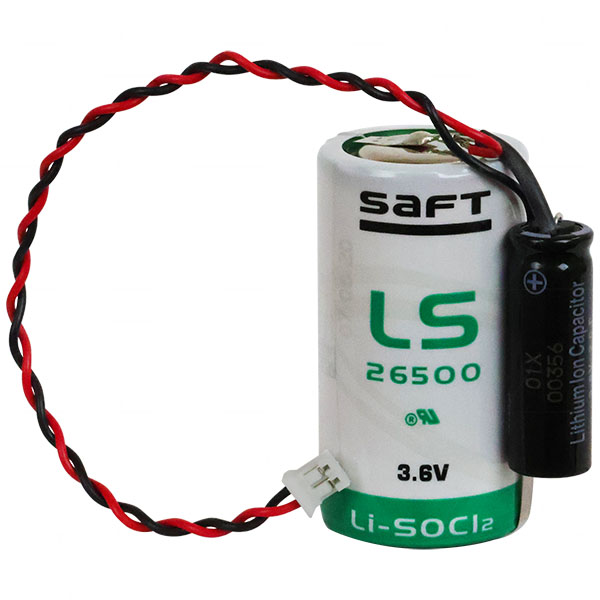

The LSP26500-20F is a Saft 3.6V – 7.7Ah primary lithium-thionyl chloride (Li-SOCL²) high pulse C-size bobbin cell fitted with a 20F LIC (Lithium-Ion Capacitor) in parallel connection for pulse support. Assembled with flying leads and JST (PHR-2) connector.

Ideally suited for long life applications featuring low base currents and periodic pulses, and periodic high current pulses up to 1.5A:

• High pulse current capability
• High voltage response, stable even after long dormant periods
• Low self-discharge compatible with long operating life (less than 1.5% after 1 year of storage at +20°C)
• Wide operating temperature range (-20⁰C to + 70⁰C)
• Easy integration into systems
• Designed to meet UL 1642 and IEC 60086-4 (at cell level) safety standards
• Well controlled passivation
• The cell contains a non-flammable electrolyte
• Manufactured in EU

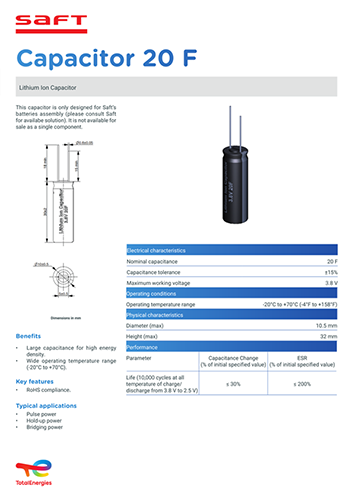

What is the difference between LIC and EDLC?

Compared to the electric double-layer capacitor (EDLC), the LIC has a higher output voltage. Although they have similar power densities, the LIC has a much higher energy density than other supercapacitors. LICs combine the high energy of LIBs with the high power density of EDLCs and have 5 times lower leakage current & self-discharge.

Termination: Supplied with JST PHR-2 Connector CE-D
