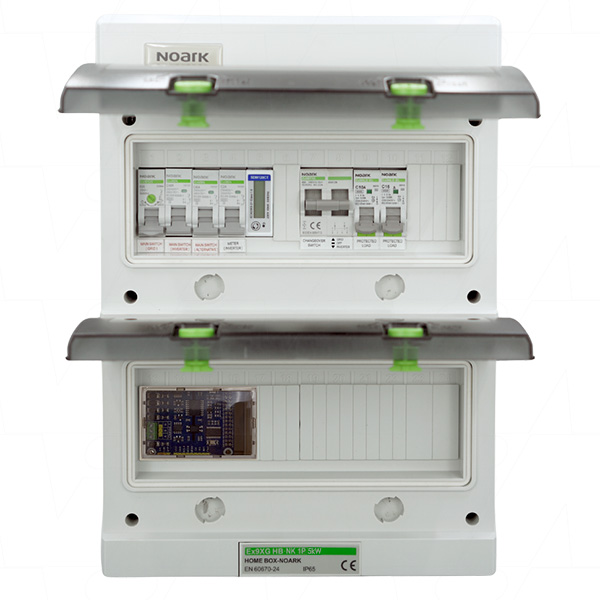

Noark Ex9XG HB-NK 1P 5/6kW ZECO
Pre-wired Home Box Distribution Board, featuring Zeco Marshall and suitable for 5 & 6kVa Single Phase systems
Noark Home Box pre-wired distribution board for use in single phase systems including Zeco Marshall
Suitable for use with Noark & Sungrow 5 & 6 kVa Hybrid Inverters, the Home Box has been designed to provide a cleaner, more efficient installation experince by eliminating the need for excessive wiring. The compact design also means less time trying to find space in already crowded switchboards.
The Home Box is pre-wired and comes with:
- Main Switch 63A
- ZECO Marshall
- Inverter Circuit Breaker 32A
- Backup Circuit Breaker 32A
- Eastron SDM120CT-M (40mA) Meter
- Changeover switch 32A
- 2 backup loads Circuit Breakers 10A & 16A
| Specifications | |
| Model # | Ex9XG HB-NK 1P 5/6kW ZECO |
| Compatible Noark Inverter | Noark Ex9N-DH-5KS-AU & Noark Ex9N-DH-6KS-AU |
| Meter | Eastron SDM120CT-M |
| Rated Voltage, Frequency | Single Phase, 230V, 50Hz |
| Maximum Current | 63A |
| Ingress Protection | IP65 |
| Installation | Wall Mount |
Suitable for use with:
EX9N-DH-5KS-AU 5kVa Hybrid Inverter
EX9N-DH-6KS-AU 6kVa Hybrid Inverter
| Selling Unit | EACH |
|---|---|
| Model No | Ex9XG HB-NK 1P 5/6kW ZECO |
| Brand |
|
| Original Brand | Noark N982201 |
| Description | Pre-wired Home Box Distribution Board, featuring Zeco Marshall and suitable for 5 & 6kVa Single Phase systems |
| Width | 272mm |
| Height | 378mm |
| Length / Breadth / Depth | 125mm |
| Weight | 3.5kg |
| Categories |
DC Circuit Breakers Miniature Circuit Breakers Load Centre Distribution Boards Noark Home Box |

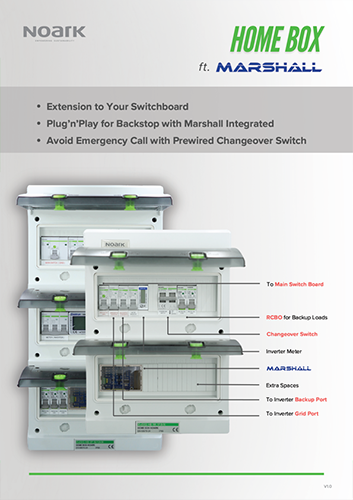

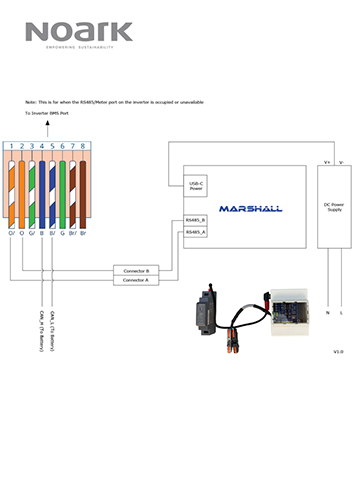

| Data Sheet |
|
