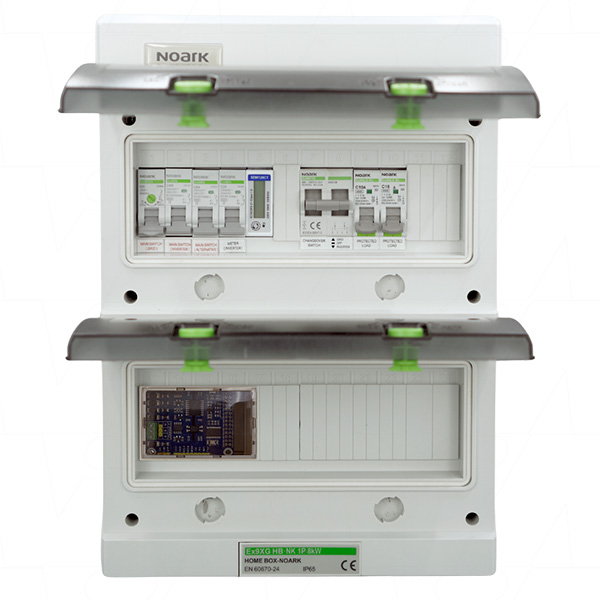

Noark Ex9XG HB-NK 1P 8kW ZECO
Pre-wired Home Box Distribution Board, featuring Zeco Marshall and suitable for 8kVa Single Phase systems
Noark Home Box pre-wired distribution board for use in single phase systems, includes Zeco Marshall
Suitable for use with Noark & Sungrow 8kVa Hybrid Inverters, the Home Box has been designed to provide a cleaner, more efficient installation experince by eliminating the need for excessive wiring. The compact design also means less time trying to find spacein already crowded switchboards.

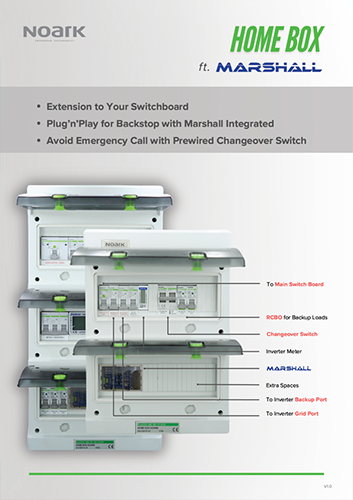

The Home Box is pre-wired and comes with:
- Main Switch 63A
- Zeco Marshall
- Inverter Circuit Breaker 40A
- Backup Circuit Breaker 40A
- Eastron SDM120CT-M (40mA) Meter
- Changeover switch 40A
- 2 backup loads Circuit Breakers 10A & 16A
| Specifications | |
| Model # | Ex9XG HB-NK 1P 8kW |
| Compatible Noark Inverter | Noark Ex9N-DH-8KS-AU |
| Meter | Eastron SDM120CT-M |
| Rated Voltage, Frequency | Single Phase, 230V, 50Hz |
| Maximum Current | 63A |
| Ingress Protection | IP65 |
| Installation | Wall Mount |
Suitable for use with:
EX9N-DH-8KS-AU 8kVa Hybrid Inverter
| Selling Unit | EACH |
|---|---|
| Model No | Ex9XG HB-NK 1P 8kW ZECO |
| Brand |
|
| Original Brand | Noark N982202 |
| Description | Pre-wired Home Box Distribution Board, featuring Zeco Marshall and suitable for 8kVa Single Phase systems |
| Width | 272mm |
| Height | 378mm |
| Length / Breadth / Depth | 125mm |
| Weight | 3.5kg |
| Categories |
DC Circuit Breakers Miniature Circuit Breakers Load Centre Distribution Boards Noark Home Box |
| Data Sheet |
|
