Saft LS17500-CNA
LS17500 A Size Saft Bobbin type Lithium Cylindrical Cell with Axial leads
A Size Lithium Thiobyl Chloride cell with Axial leads
Saft’s LS 17500 cell is ideally suited for long-term applications (typically from 5 to 20+ years), featuring low base currents and periodic pulses.
Benefits:
- Bobbin Construction
- High capacity and high energy (1139 Wh/l and 589 Wh/kg)
- High voltage response, stable during most of the lifetime of the application • Wide operating temperature range (-60°C / +85°C)
- Low self-discharge, compatible with a long operating life (less than 1% per year of storage, at +20°C, after 1 year)
- Superior resistance to corrosion
- Low magnetic signature
Compatible with ER17505H, SB-A01
| Selling Unit | EACH |
|---|---|
| Model No | LS17500-CNA |
| Brand |
|
| Description | LS17500 A Size Saft Bobbin type Lithium Cylindrical Cell with Axial leads |
| Application | Utility Metering, Alarms and Security, Tracking Systems, Automotive Electronics |
| Chemistry | Lithium Thionyl Chloride |
| Voltage | 3.6V |
| Watt Hour | 12.96Wh |
| Nominal Capacity | 3.6Ah |
| Maximum Continuous Discharge Current | 100mA |
| Size | A |
| Width | 17.13mm |
| Height | 50.9mm |
| Weight | 22g |
| Categories |
Portable Power Product Batteries Primary (Non-Rechargeable) Lithium Batteries Lithium Thionyl Chloride Batteries Lithium Thionyl Chloride Cylindrical Bobbin-MBU type 3.6V Lithium Thionyl Chloride - Bobbin Type |

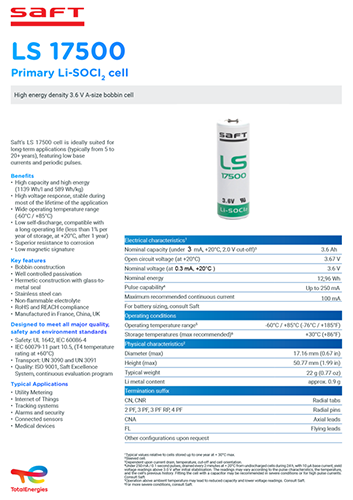

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
NON DG UN3090 LITHIUM METAL BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
