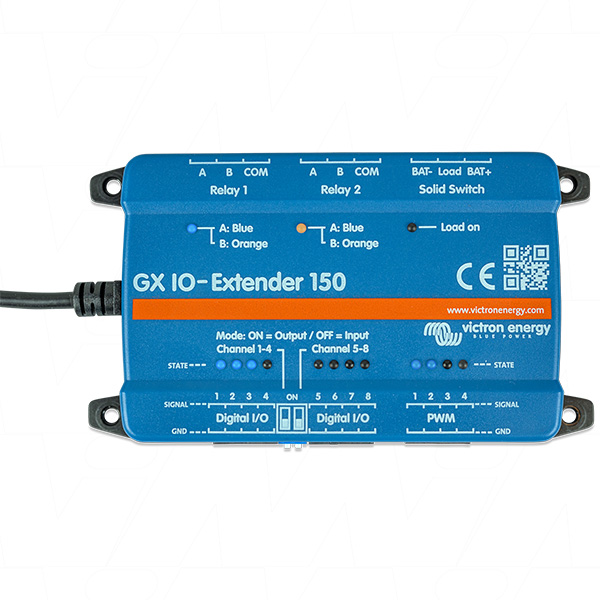

Victron Energy GX IO-EXTENDER 150
GX IO Extender 150 Victron GX Interface BPP900800150
The GX IO-Extender 150 enhances the input and output (I/O) capabilities of a GX device, enabling seamless integration with additional sensors, controls, and external devices. It connects via USB, which also serves as its power source, providing a simple and efficient expansion solution.
The device can be controlled using Node-RED on the GX device as well as the Switch pane in the user interface.
Features:
- 8 digital I/Os, configurable as 8 inputs, 8 outputs or 4 inputs + 4 outputs
- PWM output for precise control applications
- Two latching relays for low-power switching
- A solid switch for controlling DC loads that can be resistive, capacitive or inductive (such as the coil of a high-power contactor)
- Pluggable spring terminals for fast and secure connections
- Configurable via Node-RED for easy automation and custom logic
SHARE:
| Selling Unit | EACH |
|---|---|
| Model No | GX IO-EXTENDER 150 |
| Brand |
|
| Original Brand | Victron Energy BPP900800150 |
| Description | GX IO Extender 150 Victron GX Interface BPP900800150 |
| Width | 123mm |
| Height | 67mm |
| Length / Breadth / Depth | 23mm |
| Weight | 170g |
| Categories |
Power Products & Accessories Battery Management & Monitoring GX Device Family GX Touch Screens & Accessories Telecommunication Base Stations |
| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
This Victron Energy GX Series product is compatible with many Marine Glass Bridge systems
A Glass Bridge is a MFD (Multi-Functional Display) that integrates a boat's systems and navigation status into a large screen or screens at the helm of the vessel, so doing away with multiple gauges, brackets and wiring complications.
The Victron Marine MFD GX integration enables you to easily connect a compatible Multi Functional Display to any Victron GX model at the heart of your power system. Once connected you can easily monitor and control your boat's power system, direct from your Glass Bridge.
Read the Victron Energy Integration Instructions.
VictronConnect Compatible
VictronConnect lets you get live status information and configure any Victron Energy products via either Bluetooth or direct cable connection. Connect to Bluetooth equipped products, or non-Bluetooth equipped products using VE.Direct Bluetooth Smart Dongle. Connect directly to equipment using the VE.Direct to USB Interface (USB Type-A) or VE.Direct to Type C Interface (USB Type-C) cables.
Find out more about VictronConnect here, or download the App via these links. Click here to download the VictronConnect Manual.
