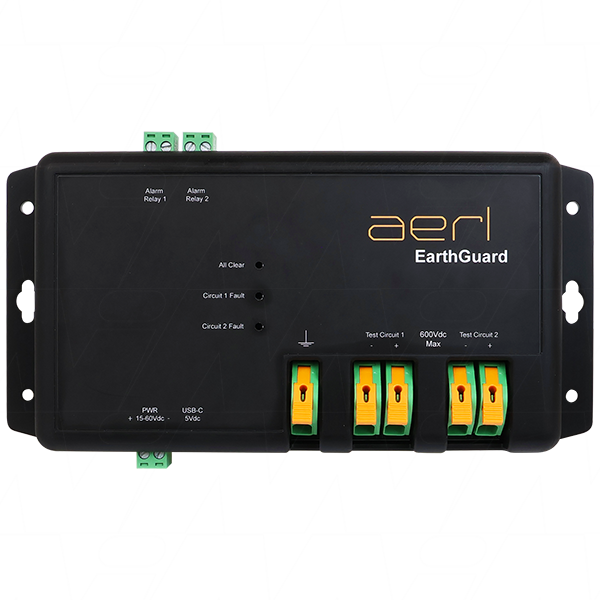

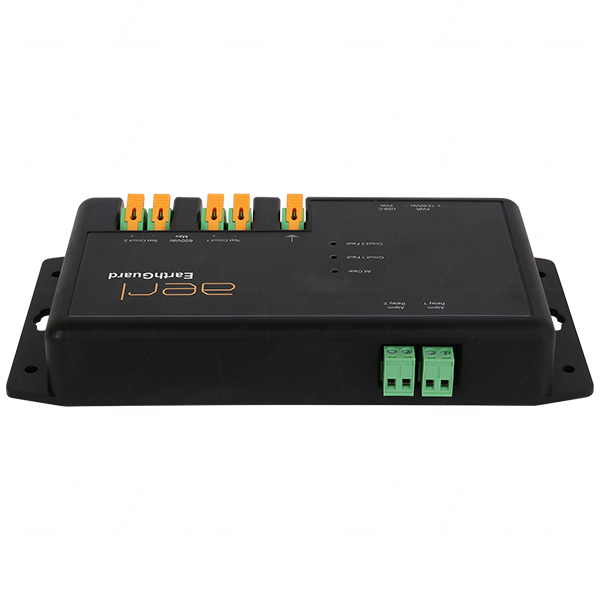

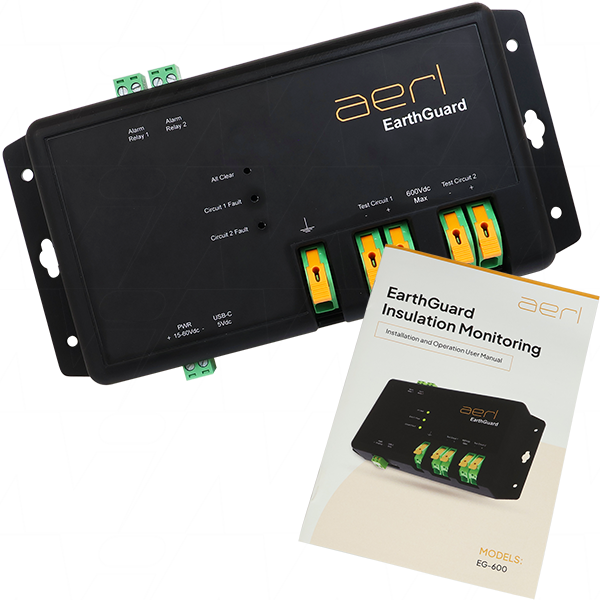

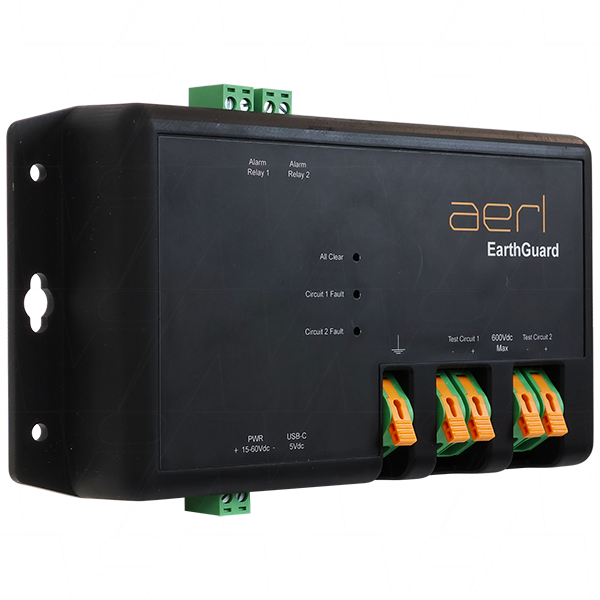

AERL Earthguard EG-600

The EarthGuard EG-600 is a standalone device for integration with approved third-party controllers, power conversion equipment and battery systems.

Utilising proprietary detection techniques, the AERL EarthGuard Insulation Monitoring Device simultaneously monitors up to two circuits (20 - 600Vdc) for conductor insulation degradation.

The EarthGuard EG-600 monitoring device satisfies the earth fault detection requirements of both AS/NZS 5033:2014 & AS/NZS 5139:2019 with onboard audio/visual alarms, and alarm relay outputs for external fault indication.

Features:

• 20 - 600V DC Monitoring Range making it compatible with most PV and Battery Storage installations.
• Dual Channel Monitoring to simultaneously monitor up to two circuits for insulation degradation, providing comprehensive protection for your system.
• High Accuracy Detection
• Audio & Visual Alarms
• Signal Indication Relays
• IP20 Rated
• DIN Rail mountable
