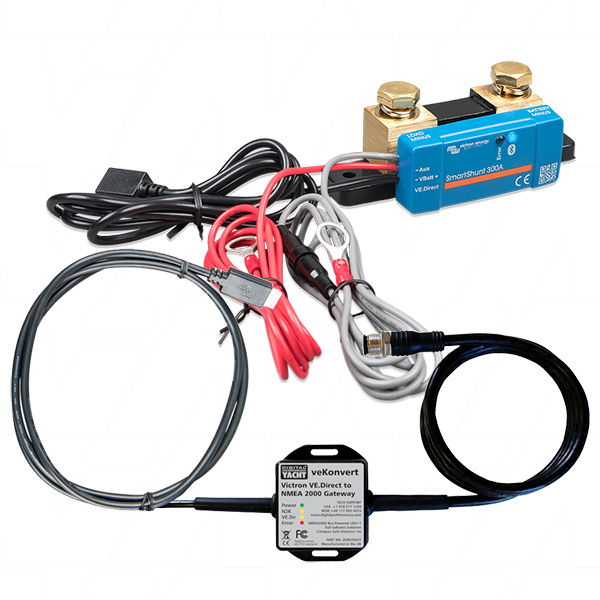

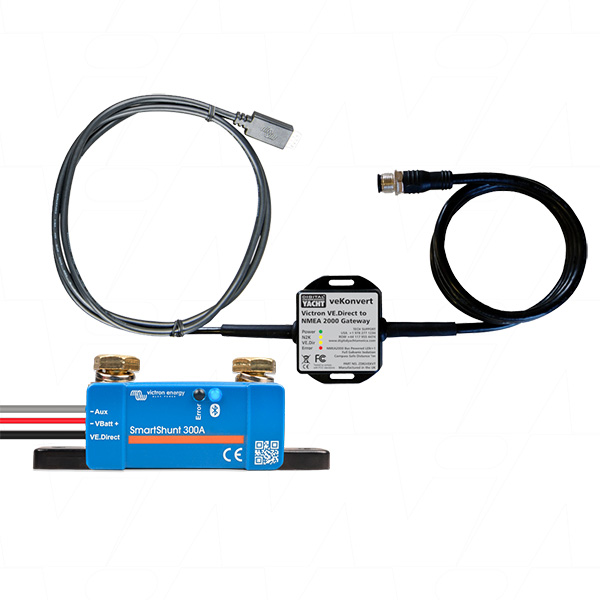

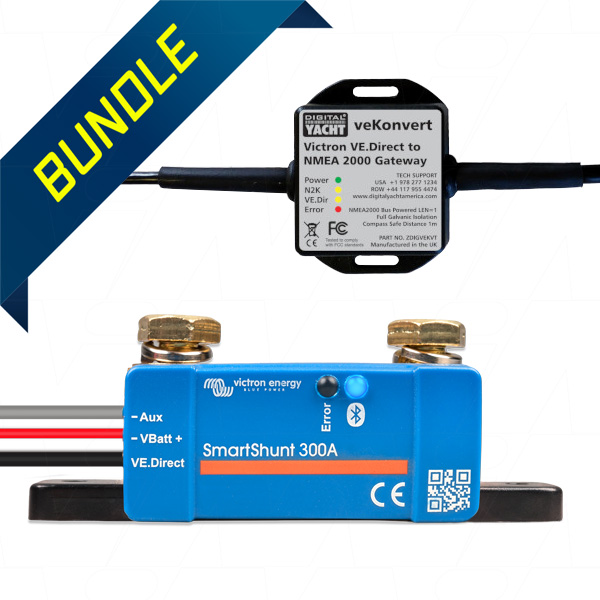

Digital Yacht BM300

Bundle Product featuring veKONVERT + Victron Energy Smart Shunt 300A/50mV IP65 SHU065130050

The BM300 is a complete system comprising of a SmartShunt and veKonvert NMEA 2000 interface.  With this solution, your multi function display becomes a sophisticated battery and energy management system.

The BM300 is a battery monitoring system allows highly accurate DC voltage, current and capacity measurements enabling reliable monitoring of your boat’s battery and electrical system.

Core to the system is the SmartShunt. It measures battery voltage and current. Based on these measurements, it intelligently calculates the battery’s state of charge and the time to depletion for the remaining charge. It also keeps track of historical data, such as deepest discharge and average discharge current as well as the number of charge and discharge cycles. The smart shunt can also monitor the voltage of a 2nd battery – typically dedicated to engine starting.

The system features a NMEA 2000 interface so your navigation multi-function display or plotter can display all key parameters. Modern MFDs from leading manufacturers such as Garmin, Raymarine, Furuno and Navico allow electrical battery data to be displayed via their NMEA 2000 interface. Alarms and alerts for low capacity and voltage can also be enabled.

The BM300 also has a standalone wireless Bluetooth interface so your mobile phone or iPad can connect and display current, voltage, capacity, additional historical data, state of charge information and time to go based on remaining battery capacity.

We’re increasingly reliant on DC battery electrical power while afloat for lighting, refrigeration, pumps, winches etc so having accurate battery information and monitoring charge from various sources is essential. The service life of batteries depends on many factors. Battery life may be shortened by under-charging, over-charging, excessively deep discharges, excessive charge or discharge currents, and by high ambient temperature.

Monitoring the battery with the BM300 will give important feedback to the user so that remedial measures can be taken when necessary. Doing this will extend battery life. There’s also an optional battery temperature sensor available.

The BM300 can also integrate with Digital Yacht’s other NMEA 2000 and wireless instruments which offer a hybrid NMEA 2000 and wireless display options.

Specifications:

• The veKONVERT-BM300 comes as a complete package with SmartShunt and veKonvert NMEA 2000 interface
• Bluetooth interface for setup and detailed analysis including charge/discharge cycles, state of charge, remaining capacity and historical data
• Use your phone/tablet and your NMEA 2000 devices for battery monitoring and management
• 300A IP65 rated SmartShunt included for main battery system
• Monitor voltage of a separate (eg starter) battery
• Universal NMEA 2000 gateway for Victron’s popular range of smart battery monitors/SmartShunt using VE.Direct interface (see compatibility list in the FAQ's)
• Enables electrical and battery monitoring and management on compatible multi functions displays (Raymarine, Garmin, Navico, Furuno etc)
• Provides battery voltage and charge/discharge current, state of charge and time to depletion based on sophisticated algorithm
• Easy installation, plug ‘n play connectivity and self-powered from the NMEA 2000 bus
• Supports alerts generated by the SmartShunt
• Supports multiple SmartShunts for multi battery systems
