Digital Yacht BM75/15

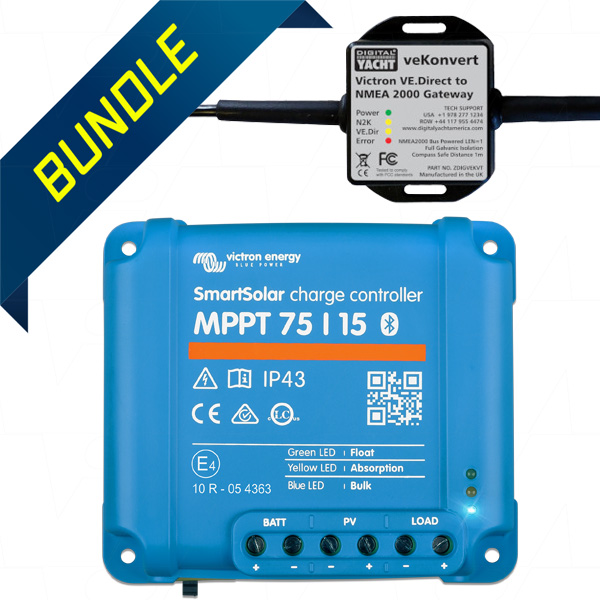

Bundle Product featuring veKONVERT + Victron Energy Smart Solar 75/15 MPPT SCC075015060R

The BM75/10 is a complete system comprising of a MPPT Solar regulator and veKonvert NMEA 2000 interface.  With this solution, your multi function display becomes a sophisticated battery and energy management system.

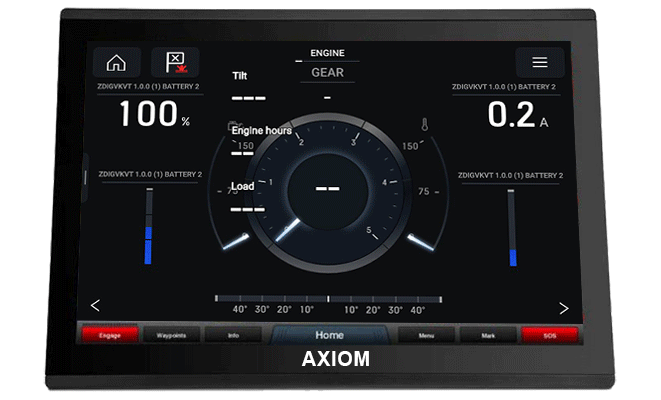

The system features a NMEA 2000 interface so your navigation multi-function display or plotter can display all key parameters. Modern MFDs from leading manufacturers such as Garmin, Raymarine, Furuno and Navico allow electrical battery data to be displayed via their NMEA 2000 interface. Alarms and alerts for low capacity and voltage can also be enabled.

The BM75/10 also has a standalone wireless Bluetooth interface so your mobile phone or iPad can connect and display solar input, current, voltage, capacity, additional historical data, state of charge information and time to go based on remaining battery capacity.

We’re increasingly reliant on DC battery electrical power while afloat for lighting, refrigeration, pumps, winches etc so having accurate battery information and monitoring charge from various sources is essential. The service life of batteries depends on many factors. Battery life may be shortened by under-charging, over-charging, excessively deep discharges, excessive charge or discharge currents, and by high ambient temperature.

Monitoring the battery with the BM75/10 will give important feedback to the user so that remedial measures can be taken when necessary. Doing this will extend battery life. There’s also an optional battery temperature sensor available.

The BM75/15 can also integrate with Digital Yacht’s other NMEA 2000 and wireless instruments which offer a hybrid NMEA 2000 and wireless display options.

Specifications:

• The BM75/10 comes as a complete package with 75/15 MPPT and veKonvert NMEA 2000 interface
• Bluetooth interface for setup and detailed analysis including charge/discharge cycles, state of charge, remaining capacity and historical data
• Use your phone/tablet and your NMEA 2000 devices for battery monitoring and management
• Monitor voltage of a separate (eg starter) battery
• Universal NMEA 2000 gateway for Victron’s popular range of smart battery monitors/SmartShunt using VE.Direct interface (see compatibility list in the FAQ's)
• Enables electrical and battery monitoring and management on compatible multi functions displays (Raymarine, Garmin, Navico, Furuno etc)
• Provides battery voltage and charge/discharge current, state of charge and time to depletion based on sophisticated algorithm
• Easy installation, plug ‘n play connectivity and self-powered from the NMEA 2000 bus
• Supports multiple SmartShunts for multi battery systems
