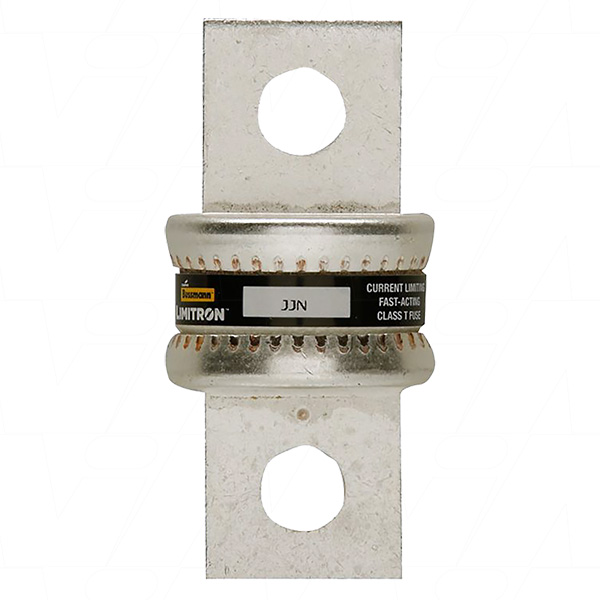

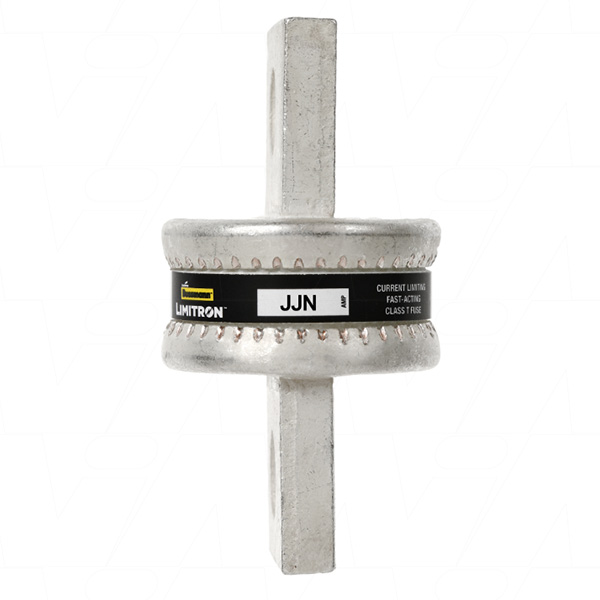

Bussmann JJN-225 CLASS T

Eaton Bussmann series JJN fuse, Current-limiting, VFD line protection, 225 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 200 kAIC at 300 V, 20 kAIC at 160 Vdc, Standard, 1, 300 V, 160 Vdc

Bussmann's Class T current-limiting, fast-acting fuses. Provides 10X better current limitation to help prevent equipment damage caused by short-circuit events. 200 kA Interrupting rating complies with NEC® Section 110.9 for today’s large capacity systems. Small, space-saving fuses provide a high degree of current limitation on short-circuits for excellent component protection.

Core Features:

• Enhanced Current Limitation: Offering 10X superior current limitation, these fuses effectively avert equipment damage caused by short-circuit events.
• High Interrupting Rating: Complying with NEC® Section 110.9, these fuses have an impressive 200 kA interrupting rating, making them suitable for today's large capacity systems.
• Fast-Acting Design: With a swift response to short-circuits, these fuses minimize potential damage, thereby improving equipment longevity.
• Compact and Space-Saving: Despite their small size, these fuses provide a high degree of current limitation on short-circuits, delivering excellent component protection without occupying much space.
• Optimal for Critical Applications: Ideal for crucial industrial or commercial applications with specific current limitation requirements.

Suitable for: LYNX CLASS -T Power In - M10

Victron Energy Modular DC bus bar
