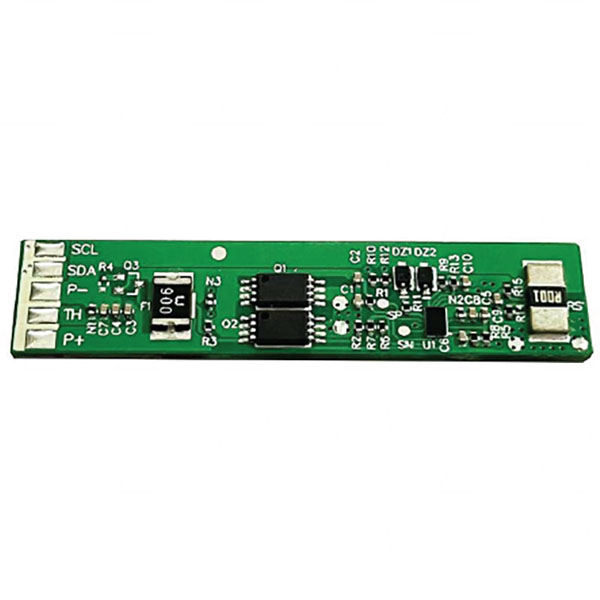

Enepower MIPCM-1SXP5ABMS-LFP
Protection Circuit Module for 3.2V LiFePO4 Battery Packs 5A Max Discharge BMS Programmable
This is a BMS programmable protection circuit module and while default settings are as per the datasheet, it can be set up for different fault levels, etc.
When ordering this part, please contact us with your requirements.
| Selling Unit | EACH |
|---|---|
| Model No | MIPCM-1SXP5ABMS-LFP |
| Brand |
|
| Description | Protection Circuit Module for 3.2V LiFePO4 Battery Packs 5A Max Discharge BMS Programmable |
| Application | Overcurrent & Overcharge/Overdischarge & Explosion Protection |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Maximum Continuous Discharge Current | 5A |
| Size | 1S |
| Width | 11mm |
| Height | 2.0mm |
| Length / Breadth / Depth | 49mm |
| Categories |
Portable Power Product Battery Parts & Tools Battery Pack Protection & Management LiFePO4 PCM-BMS Lithium Iron Phosphate PCM's |

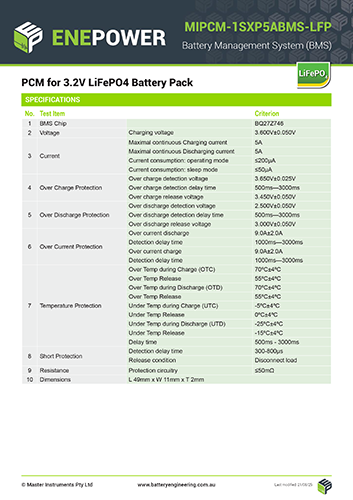

| Data Sheet |
|
