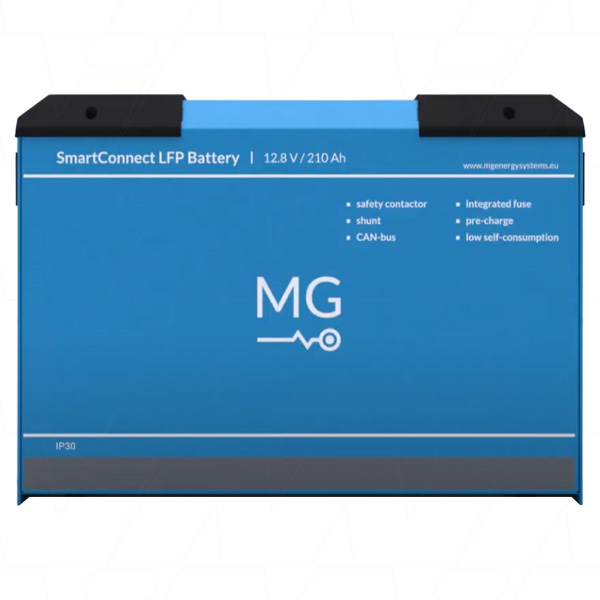

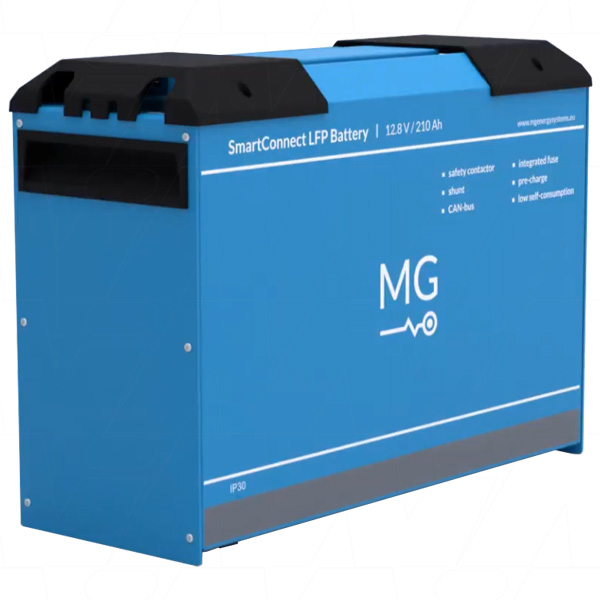

MG Energy MGLFPSC120210-RJ45
12.8V 210Ah 2688Wh SmartConnect Lithium Iron Phosphate (LiFePO4) Battery Module with RJ45 CANBus Connection & Metal Casing
MG Energy Systems SmartConnect LFP Series 12.8V 210Ah 2688Wh 4S2P LiFePO4 Battery Module
Where other manufacturers stop developing, MG starts with a complete new design. The result: the safest and most compatible 12 Vdc lithium-ion battery. The SmartConnect battery is the most intelligent lithium-ion battery in the market. This stand-alone MG battery is packed with features: Integrated BMS, built-in safety-contactor, pre-charge circuit and sensors everywhere. The second generation LiFePO4 chemistry in combination with the SmartConnect concept makes this battery the ultimate choice.
The MG SmartConnect battery system includes one or more SmartConnect batteries and the SmartLink Connect. The design and technology is based on our proven line of batteries in combination with the safest and most reliable BMS in the market.
Features:
- Built-in BMS
- DVCC & NMEA Compatible
- Internal Safety Contactor
- Plug and Play
- Ultra Low self-consumption
Specifications:
- Cycle life: >3500 cycles (80% DoD) @ 25Deg Celcius to EoL of 70% of initial capacity.
- Continuous discharge current: 210A
- Max. discharge current: 210A
- End of discharge voltage: 12.0V
- Charge voltage: 14.1V
- Max. cont. charge current: 315A
- Operating Discharge temperature: -20°C to +55ºC
- Operating Charge temperature: 0°C to +45ºC
- Storage temperature: +10°C to +45ºC
- Humidity (non-condensing): max. 95%
- Protection class: IP30
- Cooling: Air, Convection
- BMS passive balancing with integrated slave BMS.
- NO Series Connection for this model ONLY.
- Six (6) Parallel Connections Allowed

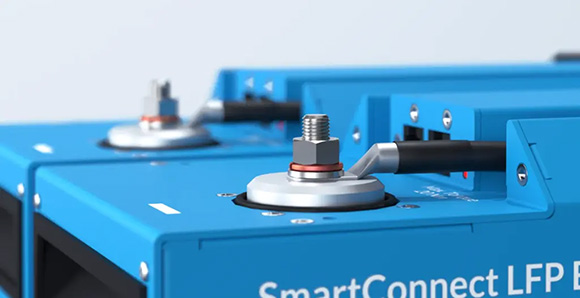

Internal Safety Contactor
The built-in safety contactor, rated at 150A, protects the lithium-ion battery from overcurrent conditions. The safety contactor’s function is to interrupt the electrical circuit when a current exceeds its rated capacity. It prevents excessive current flows that could lead to overheating or other safety hazards. It’s a crucial component to ensure the safe operation of the battery. This type of protection is essential for the safe and reliable operation of lithium battery systems, especially in applications where high currents are involved, such as industrial equipment, or renewable energy systems.

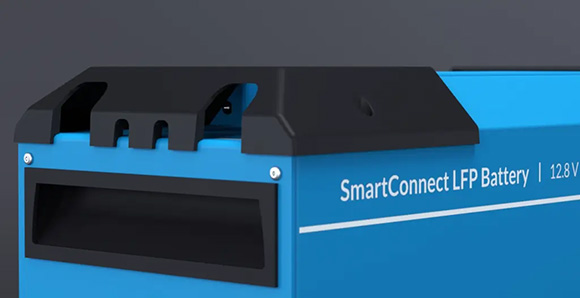

Built-in BMS
The internal BMS of the SmartConnect ensures that the batteries are never overcharged or undercharged. Furthermore it will always keep the battery within the operating window including temperature and current control.

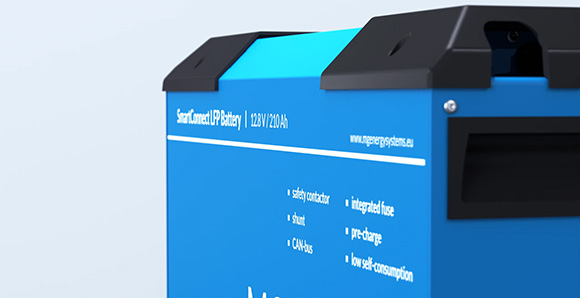

Bi-Stable Contactor
The bi-stable contactor combines maximum safety with ultra low standby consumption. This is thanks to the latching relay technology inside. When fully charged the standby-time will be more than 10 years. To minimize risks and maximize safe operation, no mosfets are integrated in this battery. A bi-stable contactor is safer compared to a mosfet, which can conduct in case of a short circuit. When starting up one or more SmartConnect batteries, the safety contactor of each battery automatically closes. The built-in pre-charge circuit prevents welding and sparks during the start-up. Besides, it ensures that the contactor switches softly, which increases longevity. Moreover, the contactor opens in case a critical parameter exceeds the limit.
BMS: This battery uses MGSLC48001
SmartLink Connect BMS
| Selling Unit | EACH |
|---|---|
| Model No | MGLFPSC120210-RJ45 |
| Brand |
|
| Original Brand | MG Energy MGLFPSC120210 |
| Description | 12.8V 210Ah 2688Wh SmartConnect Lithium Iron Phosphate (LiFePO4) Battery Module with RJ45 CANBus Connection & Metal Casing |
| Application | Automotive/Marine/RV Auxilliary Battery Banks, Off-Grid & Self Consumption Solar, UPS, Peak Shaving |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Voltage | 12.8V |
| Watt Hour | 2688Wh |
| Nominal Capacity | 210Ah |
| Termination | M8 Cable Lug (20 Nm Max) |
| Size | 4S2P |
| Width | 154mm |
| Height | 286mm |
| Length / Breadth / Depth | 395mm |
| Weight | 22kg |
| Categories |
Lithium Iron Phosphate Battery Packs 12 Volt Series LiFePO4 MG LFP Series MG SmartConnect LFP Lithium Iron Phosphate Modules |

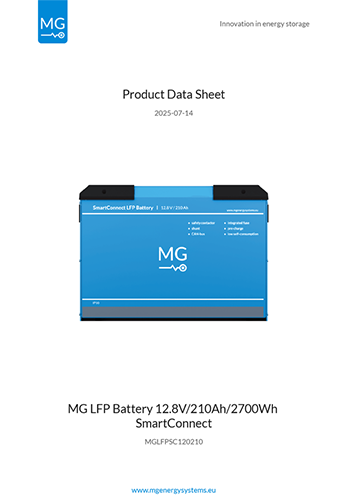

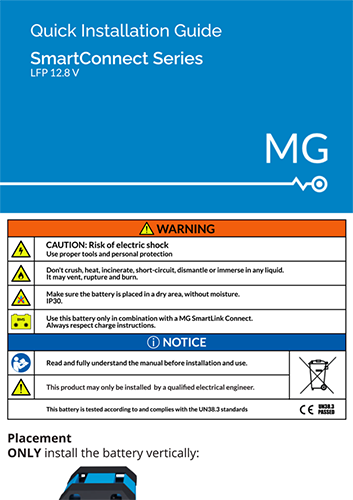

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

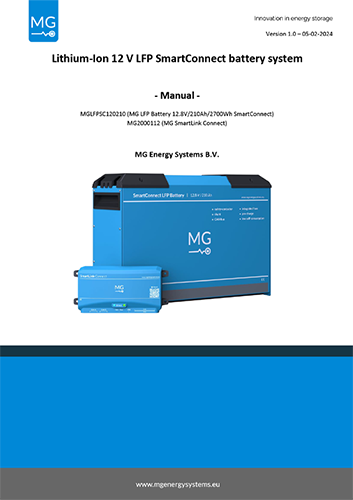

The MG Energy range of Lithium Ion batteries requires installation & commissioning to specific guidelines.
Please view applicable guidelines.
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
