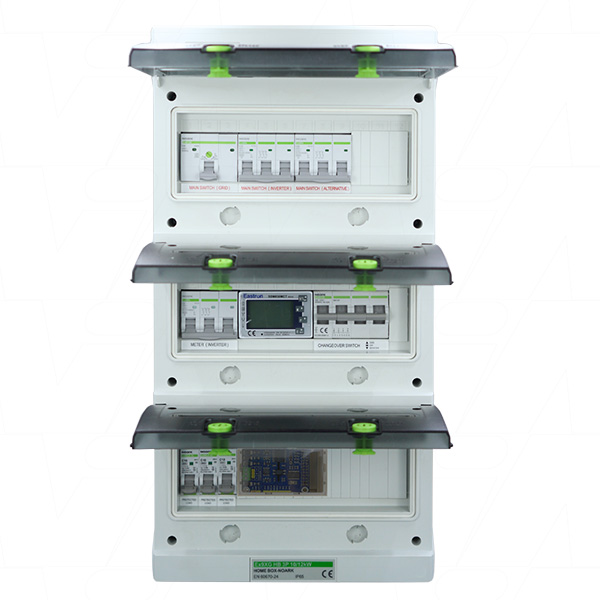

Noark Ex9XG HB-NK 3P 10/12kW ZECO
Pre-wired Home Box Distribution Board, featuring Zeco Marshall and suitable for 10 & 12kVa Three Phase systems
Noark Home Box pre-wired distribution board for use in three phase systems - includes Zeco Marshall
Suitable for use with Noark & Sungrow 10 & 12 kVa Three Phase Hybrid Inverters, the Home Box has been designed to provide a cleaner, more efficient installation experince by eliminating the need for excessive wiring. The compact design also means less time trying to find space in already crowded switchboards.
The Home Box is pre-wired and comes with:
- Main Switch 63A
- ZECO Marshall
- Inverter Circuit Breaker 32A
- Backup Circuit Breaker 32A
- Eastron SDM630CT-M (40mA) Meter
- Changeover switch 40A
- 2 backup loads Circuit Breakers 10A & 16A
| Specifications | |
| Model # | Ex9XG HB-NK 3P 10/12 IEC ZECO |
| Compatible Noark Inverter | Noark EX9N-DH-10KT-AU, EX9N-DH-12KT-AU |
| Meter | Eastron SDM630CT-M |
| Rated Voltage, Frequency | Three Phase, 230V, 50Hz/60Hz |
| Maximum Current | 63A |
| Ingress Protection | IP65 |
| Installation | Wall Mount |
Suitable for use with:
| Selling Unit | EACH |
|---|---|
| Model No | Ex9XG HB-NK 3P 10/12kW ZECO |
| Brand |
|
| Original Brand | Noark N982401 |
| Description | Pre-wired Home Box Distribution Board, featuring Zeco Marshall and suitable for 10 & 12kVa Three Phase systems |
| Width | 272mm |
| Height | 528mm |
| Length / Breadth / Depth | 125mm |
| Weight | 5.5kg |
| Categories |
DC Circuit Breakers Miniature Circuit Breakers Load Centre Distribution Boards Noark Home Box |

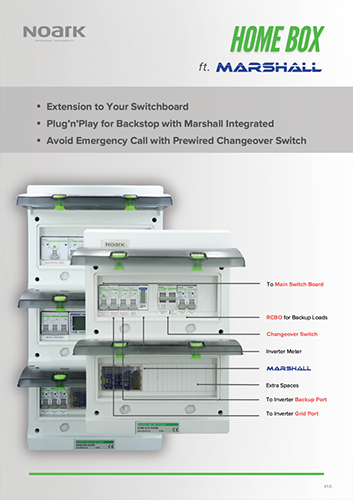

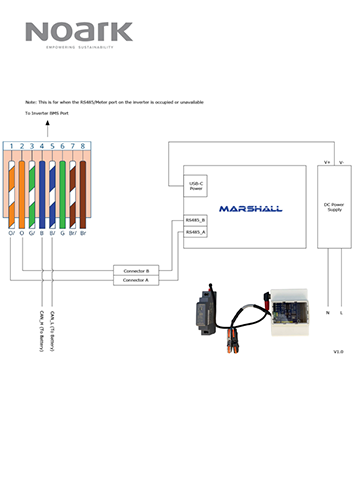

| Data Sheet |
|
