Noark Ex9XG-BK-T
Pre-wired Backup Box Distribution Board suitable for use with Fronius Symo GEN24 Three Phase Inverters

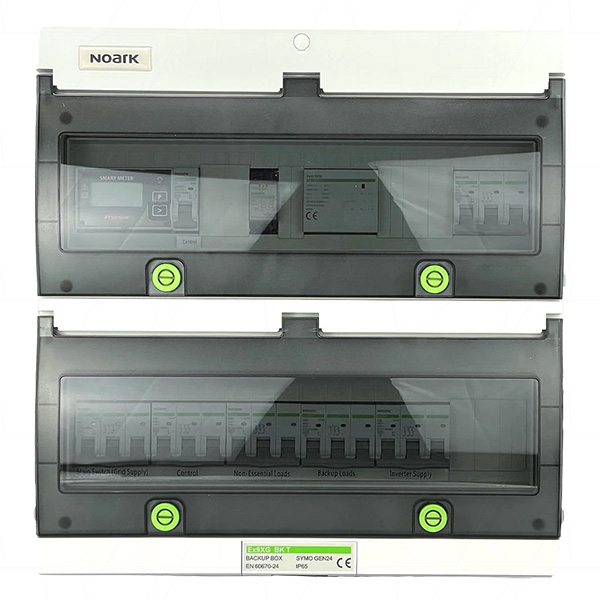

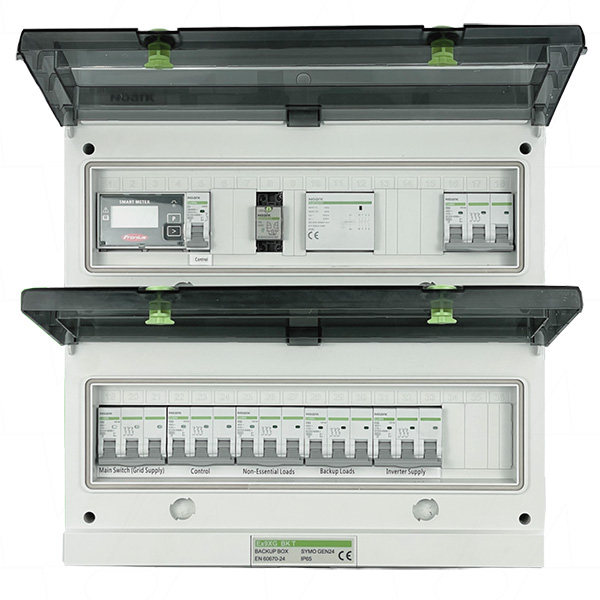

Noark pre-wired Backup Box / Distribution board Three Phase
Suitable for use with Fronius Symo GEN24 5.0/6.0/8.0/10.0 Plus, this Backup Box has been designed to provide a cleaner, more efficient installation experince by eliminating the need for excessive wiring. The compact design also means less time trying to find space in already crowded switchboards.

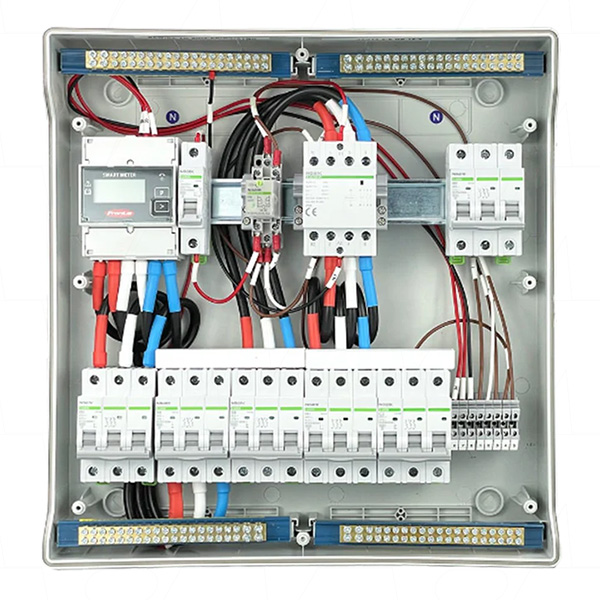

The Home Box is pre-wired and comes with:
- Main Switch 63A
- Extra 63A MCB provided for connecting to Symo 8.0 or 10.0 Plus
- Inverter Circuit Breaker 32A
- Backup Circuit Breaker 63A
- Fronius Smart Meter 63A-3
- Changeover switch 32A
- 2 backup loads Circuit Breakers
| Specifications | |
| Model # | Ex9XG-BK-T |
| Compatible Inverter | Fronius Symo GEN24 |
| Meter | Fronius Smart Meter 63A-1 |
| Rated Voltage, Frequency | Three Phase, 415V, 50Hz/60Hz |
| Maximum Current | 63A |
| Ingress Protection | IP65 |
| Installation | Wall Mount |
| Selling Unit | EACH |
|---|---|
| Model No | Ex9XG-BK-T |
| Brand |
|
| Original Brand | Noark N981002 |
| Description | Pre-wired Backup Box Distribution Board suitable for use with Fronius Symo GEN24 Three Phase Inverters |
| Width | 380mm |
| Height | 378mm |
| Length / Breadth / Depth | 125mm |
| Weight | 8.5kg |
| Categories |
DC Circuit Breakers Miniature Circuit Breakers Load Centre Distribution Boards Noark Home Box |

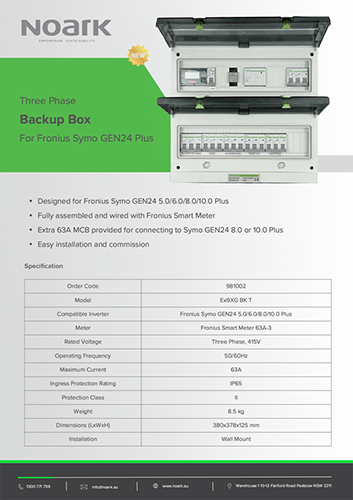

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
INSTALLATION TO AUSTRALIAN STANDARDS REQUIRED
