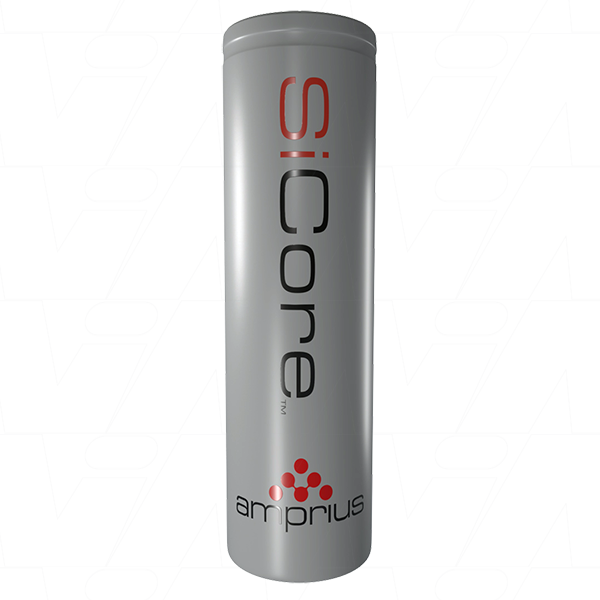

Amprius 18650-SA10

18650 SiCore Mid-Power Lithium Ion Cell

Amprius Mid-Power 18650 Cell featuring SiCore Silicon Anode construction

High capacity: 4000mAh
High drain: max. continuous discharge current: 12A (3C)
High drain: max. Pulse discharge current (≤30 sec): 20A (5C)
Wide operating temperature: Charge = 0°C to +45°C; Discharge = -20°C to +60°C
Cycle Life: Up to 600 cycles (+0.5C/-1.0C, 4.2 to 2.75V)
Energy Density: 300Wh/kg
Certifications: UN38.3, IEC62133, UL1642, PSE

Powered by silicon anode technology
SiCore batteries set a new standard in electric mobility with industry-leading power-to-energy performance. These silicon anode lithium-ion cells deliver exceptional energy density and long cycle life, now available at commercial scale.

Amprius High Energy Icon

Exceptional energy density

SiCore™ delivers up to 450 Wh/kg, providing efficient energy storage for applications where energy efficiency is critical.

High discharge capability Icon

High discharge capability

Engineered for demanding conditions, SiCore™ delivers high discharge rates while maximizing runtime.

Extended Cycle Life Icon

Extended Cycle Life

Built to last, SiCore™ achieves up to 1,300 full-depth discharge cycles, offering consistent performance over time.

Unmatched power-to-energy balance Icon

Unmatched power-to-energy balance

Advanced cell chemistry enables game-changing energy density at high discharge rates, pushing the boundaries of electric mobility.

Selling Unit	EACH
Model No	18650-SA10
Brand
Description	18650 SiCore Mid-Power Lithium Ion Cell
Application	Drones, eBikes, Robotics
Chemistry	Lithium Ion (LiIon)
Voltage	3.6V
Watt Hour	14.4Wh
Nominal Capacity	4Ah
Maximum Continuous Discharge Current	12A
Size	18650
Width	18.35mm
Height	65.05mm
Weight	48g
Categories	Portable Power Product Batteries Secondary (Rechargeable) Lithium Ion Batteries Lithium Ion Industrial Cylindrical Batteries Amprius

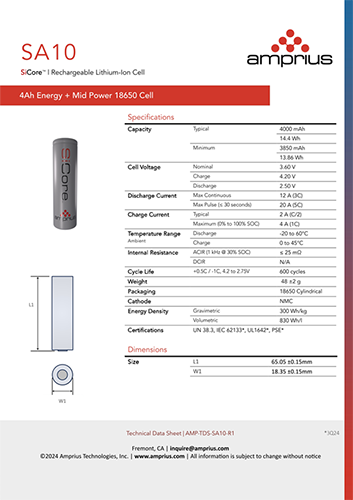

Data Sheet

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

Important Information Regarding Rechargeable Lithium Cells - LITHIUM ION (LiIon) & LITHIUM IRON PHOSPHATE (LiFePO4)

Single unprotected cells are not available to customers. For safety information please read the Lithium Battery Safety document
PLEASE NOTE: Under special circumstances, only to pre-qualified customers approved by MI management, cells or packs may be provided without a protection circuit for prototyping or testing purposes. All lithium rechargeable cells/packs supplied by Mi Battery Engineering without a Protection Circuit Module (PCM) will require a duly signed Product Indemnity Waiver (PIW) Click here to download
Do not attempt to charge these batteries using chargers for nickel based batteries or any charger not specifically designed for rechargeable lithium technology.
This cell is manufactured for use in a battery pack assembly. It is not intended for use without a protection circuit. For equipment designed to use individual cells a protection circuit can be incorporated. MI Battery Engineering's current range of protected lithium ion cells can be viewed on this page.
Lithium ion cells can be assembled into single or multi-cell battery packs by authorised pack assembly centres such as our company that have been approved for safety circuit assembly and Lithium Ion pack design.
For information on the safety circuits, more commonly known as a PCM, please click here or follow the links to browse MI Battery Engineering's range of available PCM's for Lithium Ion and Lithium Iron Phosphate.
MI Battery Engineering can also provide advice and components for intelligent Battery Management System's (BMS) addtional to or incorporating PCM's. It's recommended that battery packs especially those featuring complex series/parallel cell assemblies incorporate a BMS in their construction. For further information please consult our sales engineering staff.
For battery pack design enquiries please contact us with your requirements. If you already have some parameters please click here for a Battery Application work sheet & email it to us.

SHIPPING RESTRICTIONS APPLY

Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.

NON DG UN3480 LITHIUM ION BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.

Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
