Fronius Primo GEN24 3.0 Plus SC
Fronius Primo GEN24 3.0 Plus SC Single Phase 3kW Hybrid Inverter with Dual MPPT and WiFi 4,210,250,002
The Fronius Primo GEN24 Plus SC (Superior Current) offers an integrated basic backup power supply with PV Point and even a full backup power solution through the option of connecting a battery storage system..
The Fronius Primo GEN24 Plus hybrid inverter enables energy self-sufficiency for electricity, heating, cooling and e-mobility with the use of a battery system. This means that the Fronius Primo GEN24 Plus with Full Backup* has a backup power solution that even large consumers can use, such as heat pumps. What’s more, the Multi Flow Technology lets the hybrid inverter supply parallel energy flows in the system, even in backup power mode.
*Additional external components for grid switchover are required for the Full Backup. More information on this can be found in the operating instructions.
Enhanced security with two backup power options for every situation: PV Point for backup power supply via a socket and Full Backup for reliable backup power for the whole home, even for large loads such as heat pumps.
The Fronius Primo GEN24 Plus boasts a wide range of features that support a sustainable, independent energy supply. Discover the key features for installers and their customers:
- Intelligent energy management
- Active cooling technology for a longer service life
- Flexible and fast installation
- Easy integration and management of Fronius or third-party components thanks to open interfaces.
- Dual MPPT
- IP66 Rated
- WiFi connection
Pairs perfectly with a Fronius Reserva Battery
The Fronius Reserva is a modular, high-voltage DC solar battery system designed to seamlessly integrate with Fronius GEN24 Plus and Verto Hybrid inverters for backup power and increased energy independence. A slim design, and scalability up to 63 kWh by stacking towers, with a 10-year performance warranty and European data security. Find out more.
With the PV Point and Full Backup*
The Fronius GEN24 Plus guarantees the power supply to the entire household with “Full Backup” *. Even big consumers, such as heat pumps, are reliably supplied with solar energy and energy from the connected battery. If the battery is discharged, it is charged again when the sun is shining.
*Available on the Fronius Primo GEN24 3.0–10.0 Plus
Versatility as standard
More functions. More control. More coverage. The Fronius GEN24 Plus continuously saves time and money thanks to their energy management functions.
The device design enables quick and flexible installation, while our software achieves optimal yields – even in shady conditions. At the same time, the integrated active cooling extends the service life and protects your investment.
Built-in freedom
Developed with an open interface so that the integration and control of components from Fronius or third-party providers is particularly straightforward. An integrated and intelligent load management system efficiently uses surplus PV power by prioritising consumers such as heat pumps, pool pumps or wallboxes and controlling them as needed.
Easy monitoring
Everything under control: With our monitoring tool, you can always keep an eye on your PV system and keep your energy revolution on track. And if ever anything isn't quite right, Solar.web automatically notifies the responsible installer.
Sustainability focused
Fronius products and solutions are “Made in Europe” and are consistently developed and implemented with sustainability in mind.
100% recycled aluminium for the heat sinks in all Fronius GEN24 Plus inverters.
100% renewable energy is used for production.
Maximum reparability on-site thanks to easy-to-replace individual components.
Specifications:
1. Input Data
| Range | Primo GEN24 Plus SC |
|---|---|
| Single or three phase | Single phase |
| Number of MPP trackers | 2 |
| DC input voltage range | 65 - 600V (Udc min - Udc max) |
| Rated input voltage | 400V (Udc,r) |
| Feed-in start-up input voltage | 80V (Udc start) |
| Usable MPP voltage range | 65 - 480V |
| MPP voltage range (at rated power) | 190 - 480V (Umpp min - Umpp max) |
2. Output Data
| AC rated power | 3000W (Pac,r) |
|---|---|
| Max. output power | 3000VA (Pac max) |
| Max. grid power demand | 3000VA |
| Nom. AC output current | 13.6A (220Vac); 13A (230Vac) |
3. Output Data PV Point
| Nom. output power | 3000VA |
|---|---|
| Grid connection | 1~NPE 220 V / 230 V |
| Switching time | <15s |
4. Battery Connection
| Number of DC connections | 1 |
|---|---|
| Max. input current | 22A (Idc max.) |
| DC input voltage range | 150V - 465V (Udc min - Udc max) |
| Max. input / output power | 3110W (Depending on the connected battery) |
| Max. AC charging power | 3000W (Depending on the connected battery) |
5. General Data
| Degree of protection | IP66 |
|---|---|
| Night-time consumption | <10 W |
| Cooling | Regulated air cooling |
| Installation | Indoor and outdoor installation |
| Ambient temperature range | -40°C - +60°C |
| Permitted humidity | 0 - 100% |
| Max. altitude | 4000m |
| Max. efficiency (PV - grid) | 97.7% |
Only need a standard model?
This Inverter is available as a PV model: Primo GEN24 3.0 SC
Related Products
Over Voltage / Surge Protection - DC SPD Type1+2 Gen24 OVP
Backup Controller - Backup Controller 3P-35A
| Selling Unit | EACH |
|---|---|
| Model No | Primo GEN24 3.0 Plus SC |
| Brand |
|
| Original Brand | Fronius 4,210,250,002 |
| Description | Fronius Primo GEN24 3.0 Plus SC Single Phase 3kW Hybrid Inverter with Dual MPPT and WiFi 4,210,250,002 |
| Application | Residential and Light Commercial Solar, Off Grid Solar |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Voltage | 65 - 600V |
| Termination | M8 |
| Size | 3kW |
| Width | 474mm |
| Height | 530mm |
| Length / Breadth / Depth | 165mm |
| Weight | 15.2kg |
| Categories |
Power Products & Accessories Inverter Chargers Single Phase PV Hybrid Inverter Chargers Single Phase Type Fronius Primo Gen24 Fronius Primo Gen24 Plus CEC Approved Items CEC Approved Inverters |

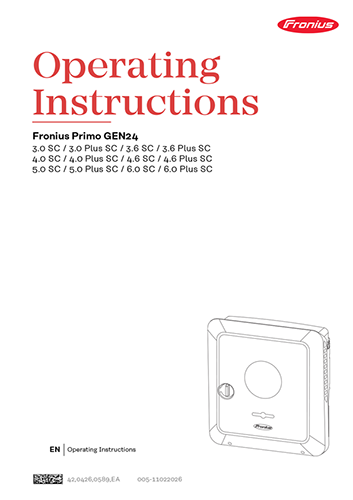

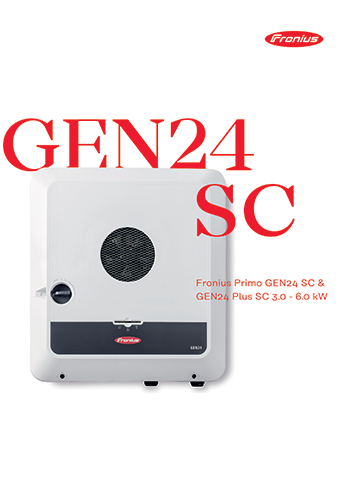

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
This product appears on the Clean Energy Council list of compliant inverters & power conversion equipment (PCE)
View the full list here
INSTALLATION TO AUSTRALIAN STANDARDS REQUIRED
