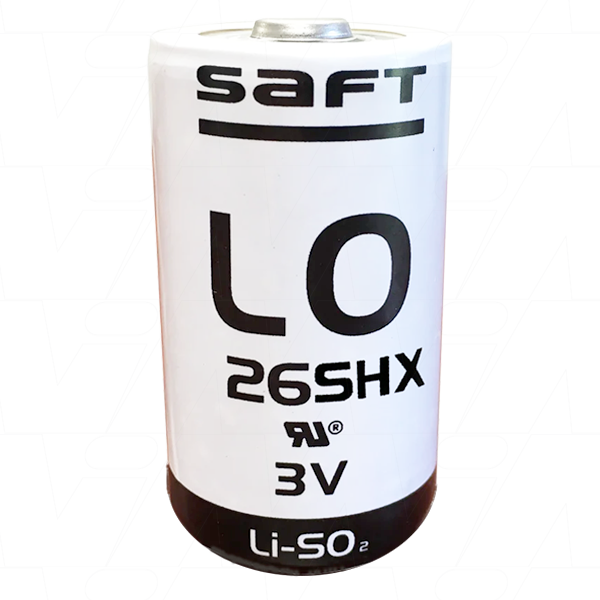

Saft LO26SHX
LO26SHX Saft D Size 3V High Pulse Drain Lithium Spiral Cell with Button Top
D Size 3.0V 7.5Ah Primary lithium sulfur dioxide (Li-SO2) cell with Very high drain and pulse capability
Standard Maximum Discharge: 4A - Pulse Maximum Discharge: 15A
Benefits
- High and stable discharge voltage
- Superior pulse capability
- Performance not affected by cell orientation
- Long storage possible before use
- Ability to withstand extreme temperature
Key features
- Low self - discharge rate (less than 3% after 1 year of storage at +20°C)
- Hermetic glass-to-metal sealing
- Built-in safety vent (at the negative end of the cell)
- Restricted for transport (class 9)
- UL Component Recognition (File Number MH 15076)
- Meets shock, vibration and other environmental requirements of military specifications
- Made in the USA
Main applications
- Radiocommunications and other military applications
- Rescue devices (PLBs, EPIRBs)
- Sonobuoys
| Selling Unit | EACH |
|---|---|
| Model No | LO26SHX |
| Brand |
|
| Description | LO26SHX Saft D Size 3V High Pulse Drain Lithium Spiral Cell with Button Top |
| Application | Rescue/Emergency Beacon (EPIRB), Radiocommunications and other military applications, Sonobuoys |
| Chemistry | Lithium Sulphur Dioxide |
| Voltage | 3V |
| Watt Hour | 22.5Wh |
| Nominal Capacity | 7.5Ah |
| Maximum Continuous Discharge Current | 4A |
| Size | D |
| Width | 34.2mm |
| Height | 59.3mm |
| Weight | 85g |
| Categories |
Portable Power Product Batteries Primary (Non-Rechargeable) Lithium Batteries Specialised and Encapsulated Saft Sulphur Dioxide |

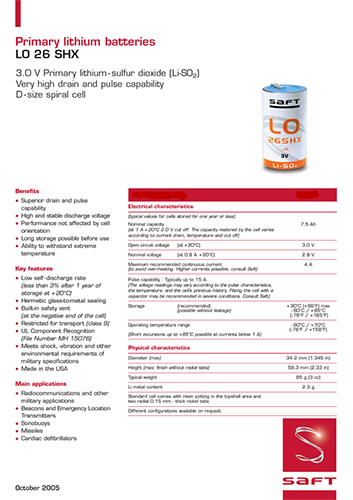

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
Indent Item
PLEASE NOTE: This is an indent item (not stocked) and will need to be ordered in from the factory. Minimum order quantities (MOQ), Indent freight charges and lead times will apply. Please contact us for more information.
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3090 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM METAL BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
