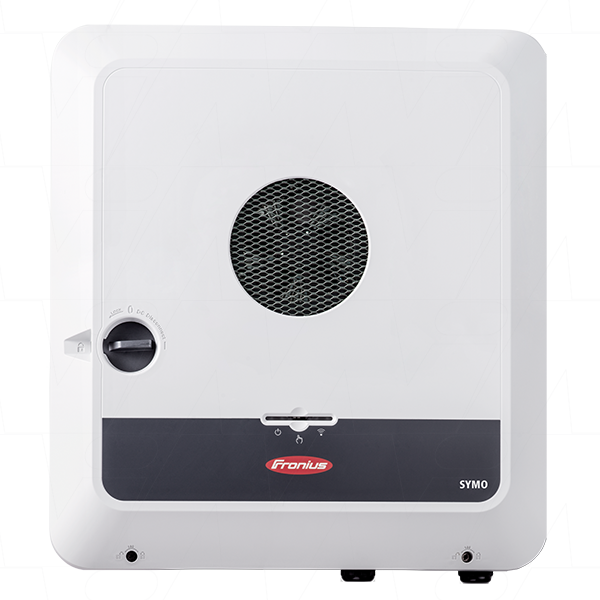

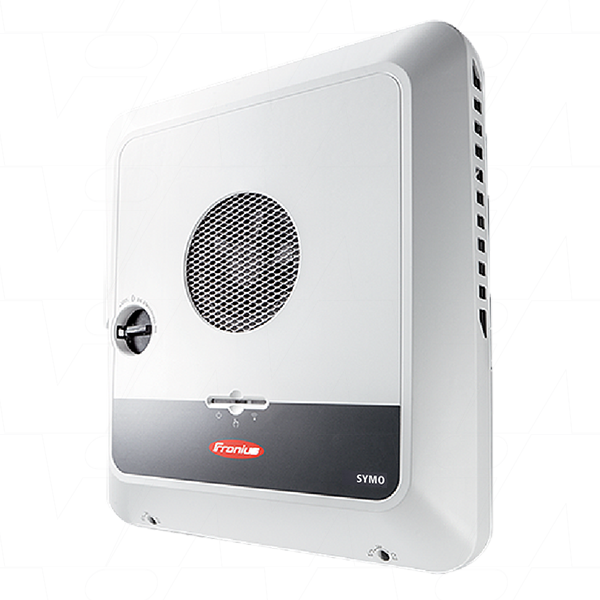

Fronius Symo GEN24 4.0 Plus SC
Fronius Symo GEN 24 4.0 Plus SC Three Phase 4kW Hybrid Inverter with Dual MPPT and WiFi 4,210,191,002
Fronius Symo GEN24 Plus three phase hybrid inverters for private photovoltaic systems with integrated basic backup power function or even a comprehensive backup power solution with the option to connect a battery system.
- Intelligent energy management

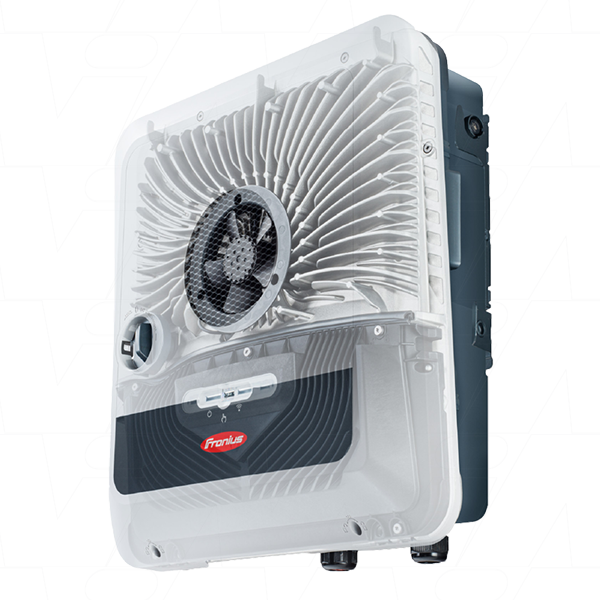

- Active cooling technology for a longer service life
- Flexible and fast installation
- Easy integration and management of Fronius or third-party components thanks to open interfaces.
- Dual MPPT
- IP66 Rated
- WiFi connection
Pairs perfectly with a Fronius Reserva Battery
The Fronius Reserva is a modular, high-voltage DC solar battery system designed to seamlessly integrate with Fronius GEN24 Plus and Verto Hybrid inverters for backup power and increased energy independence. A slim design, and scalability up to 63 kWh by stacking towers, with a 10-year performance warranty and European data security. Find out more.
With the PV Point and Full Backup*
The Fronius GEN24 Plus offers two backup power options: a power supply for loads of up to 3 kW via a single socket and a backup power supply for the entire home, including large, three-phase loads such as heat pumps.
Versatility as standard
More functions. More control. More coverage. The Fronius GEN24 Plus continuously saves time and money thanks to their energy management functions.
The device design enables quick and flexible installation, while our software achieves optimal yields – even in shady conditions. At the same time, the integrated active cooling extends the service life and protects your investment.
Built-in freedom
Developed with an open interface so that the integration and control of components from Fronius or third-party providers is particularly straightforward. An integrated and intelligent load management system efficiently uses surplus PV power by prioritising consumers such as heat pumps, pool pumps or wallboxes and controlling them as needed.
Easy monitoring
Everything under control: With our monitoring tool, you can always keep an eye on your PV system and keep your energy revolution on track. And if ever anything isn't quite right, Solar.web automatically notifies the responsible installer.
Sustainability focused
Fronius products and solutions are “Made in Europe” and are consistently developed and implemented with sustainability in mind.
100% recycled aluminium for the heat sinks in all Fronius GEN24 Plus inverters.
100% renewable energy is used for production.
Maximum reparability on-site thanks to easy-to-replace individual components.
Specifications:
1. Input Data
| Range | Symo GEN24 Plus |
|---|---|
| Single or three phase | Three phase |
| Number of MPP trackers | 2 |
| DC input voltage range | 80 - 1000V (Udc min - Udc max) |
| Rated input voltage | 610V (Udc,r) |
| Feed-in start-up input voltage | 80V (Udc start) |
| Usable MPP voltage range | 80 - 800V |
| MPP voltage range (at rated power) | 170 - 800V (Umpp min - Umpp max) |
2. Output Data
| AC rated power | 4000W (Pac,r) |
|---|---|
| Max. output power | 4000VA (Pac max) |
| Max. grid power demand | 10VA |
| Max. AC output current | 8A |
3. Output Data PV Point
| Max continuous output power | 3000VA |
|---|---|
| Nom. output current | 13A (Iac max) |
| Grid connection | 1~NPE 220 V / 230 V |
| Frequency | 50 Hz / 60 Hz |
| Max. switchover time PV-Point | 15s |
| Frequency in backup power mode | 53 Hz |
4. General Data
| Degree of protection | IP66 |
|---|---|
| Night-time consumption | <10 W |
| Cooling | Regulated air cooling |
| Installation | Indoor and outdoor installation |
| Ambient temperature range | -25°C - +60°C |
| Permitted humidity | 0 - 100% |
| Max. altitude | 4000m |
| Max. efficiency (PV - grid) | 98.2% |
Only need a standard model?
This Inverter is available as a PV model: Symo GEN24 4.0 SC
Related Products
Inspection Kit for Symo Gen 24 - 44.0240.0004
Over Voltage / Surge Protection - 4.240.313.CK
DC Connector Kit - 4.240.046
Backup Controller - 4.240.047.CK
| Selling Unit | EACH |
|---|---|
| Model No | Symo GEN24 4.0 Plus SC |
| Brand |
|
| Original Brand | Fronius 4,210,191,002 |
| Description | Fronius Symo GEN 24 4.0 Plus SC Three Phase 4kW Hybrid Inverter with Dual MPPT and WiFi 4,210,191,002 |
| Application | Residential and Light Commercial Solar, Off Grid Solar |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Voltage | 80 - 1000V |
| Termination | M8 |
| Size | 4kW |
| Width | 474mm |
| Height | 530mm |
| Length / Breadth / Depth | 165mm |
| Weight | 15.6kg |
| Categories |
Power Products & Accessories Inverter Chargers Hybrid Inverter Chargers Three Phase Type Fronius Fronius Symo Gen24 Fronius Symo Gen24 Plus CEC Approved Items CEC Approved Inverters |

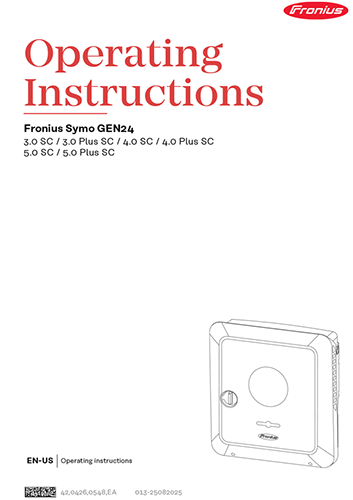

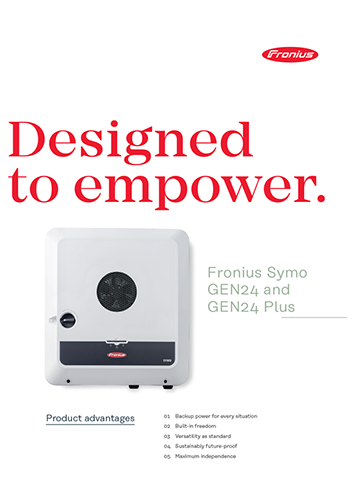

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
This product appears on the Clean Energy Council list of compliant inverters & power conversion equipment (PCE)
View the full list here
INSTALLATION TO AUSTRALIAN STANDARDS REQUIRED
