Fronius Tauro ECO 50-3-D
Fronius Tauro ECO 50-3-D 50kW 3 Phase Inverter 1 MPPT 4,210,306,002
Maximum flexibility in terms of system design with minimal overall system operating costs: the robust Fronius Tauro ECO inverter makes large-scale PV systems even more cost effective. Whether under direct sunlight or in extreme heat, its double-walled housing and active cooling enable full power and maximum yields even under the harshest environmental conditions.
The Fronius Tauro ECO is more budget-friendly, designed for large-scale, simpler projects with one MPPT (Maximum Power Point Tracker), a narrower voltage range (580-1000V) and can be used to implement sophisticated roofs in both centralised (P variant) and decentralised system designs (D variant).
![]()
Robust and durable
Designed to buck direct sunlight and high temperatures: its double-walled housing and active cooling give the Fronius Tauro a long service life and make it a robust commercial solar inverter that will always deliver top performance.
![]()
Lower costs and efficient servicing
Fronius Tauro is quick to install and efficient to maintain. When servicing is required, only the affected power stage set needs to be replaced rather than the entire project inverter. This makes for safe operation and fast, cost-efficient servicing.
![]()
Intelligent control and an open system
Fronius Tauro can be conveniently monitored, controlled and maintained using Fronius Solar.web which lets you keep an eye on your system at all times. Its open system architecture means third-party components are easily integrated.
With our free online tool Fronius Solar.web, accessible via smartphone, laptop, or PC, you always have an overview of your current energy yield and consumption. This way, you always know how much solar power your system is producing, have access to reports and analyses on energy sources and CO2 savings, and can also save additional costs with the smart features.
![]()
Design flexibility with focus on repairability and sustainability
Centralised, decentralised, vertical or horizontal: Fronius Tauro offers you maximum flexibility in the design and installation of large-scale PV systems. The flexible Tauro and the cost-effective Tauro ECO can be combined in any way you choose. Preintegrated surge protection device and AC daisy chaining reduce the need for additional components and cables.
Designed for durability and with the fewest possible, replaceable components. This makes the Tauro particularly robust and failure-resistant, and means that only individual parts need to be replaced during on-site servicing, thereby saving time and conserving resources.
Specifications:
1. Input Data
| Range | Tauro ECO - D variant |
|---|---|
| Single or three phase | Three phase |
| Number of MPP trackers | 1 |
| Max. input current | 87.5A (Idc max) |
| Max. short circuit current | 178A (Isc max, inverter) |
| DC input voltage range | 580 - 1000V (Udc min - Udc max) |
| Feed-in start-up input voltage | 650V (Udc start) |
| MPP voltage range | 580 - 930V (Umpp min - Umpp max) |
| Max. PV generator power | 75kWp (Pdc max) |
2. Output Data
| AC nominal output | 50kW (Pac,r) |
|---|---|
| Max. output power | 50kVA |
| Max. AC output current | 75.8A at 380Vac / 72.5 at 400Vac (Iac nom) |
| Grid connection | 3~ (N)PE 400/230; 3~ (N)PE 380/220 |
| Frequency | 50/60 (45–65)Hz (frequency range fmin - fmax) |
| Power factor | 0 - 1 ind. / cap. (cos φac,r) |
3. General Data
| Degree of protection | IP65 |
|---|---|
| Night-time consumption | <16 W |
| Cooling | Active cooling technology and double-wall system |
| Installation | Indoor and outdoor installation (direct sunlight is possible) |
| Ambient temperature range | -40°C - +65°C (Optional AC-disconnect mounted inside the inverter: from -30°C to +65°C) |
| Max. efficiency | 98.5% |
| MPP adaptation efficiency | > 99.9% |
Related Products
| Selling Unit | EACH |
|---|---|
| Model No | Tauro ECO 50-3-D |
| Brand |
|
| Original Brand | Fronius 4,210,306,002 |
| Description | Fronius Tauro ECO 50-3-D 50kW 3 Phase Inverter 1 MPPT 4,210,306,002 |
| Application | Large Scale and Commercial Solar, Off Grid Solar |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Voltage | 580 - 1000V |
| Size | 50kW |
| Width | 1109mm |
| Height | 755mm |
| Length / Breadth / Depth | 346mm |
| Weight | 74kg |
| Categories |
Power Products & Accessories Inverter Chargers PV Inverter Chargers Three Phase PV Fronius Tauro Fronius Tauro Eco CEC Approved Items CEC Approved Inverters |

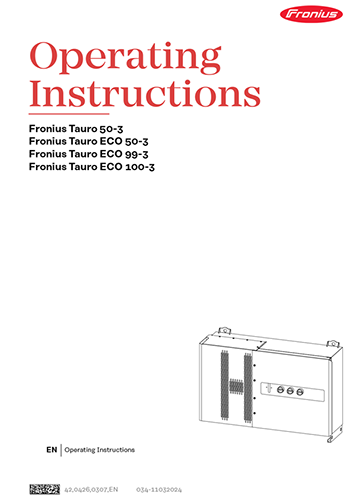

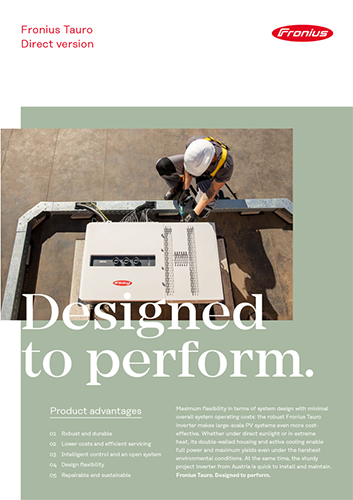

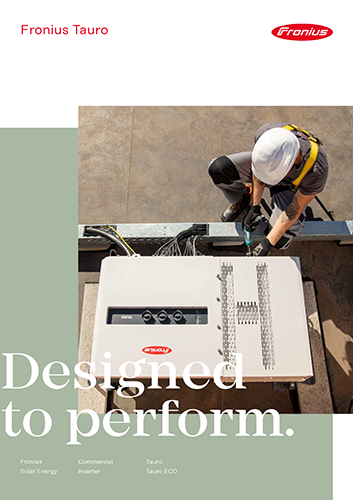

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
This product appears on the Clean Energy Council list of compliant inverters & power conversion equipment (PCE)
View the full list here
INSTALLATION TO AUSTRALIAN STANDARDS REQUIRED
