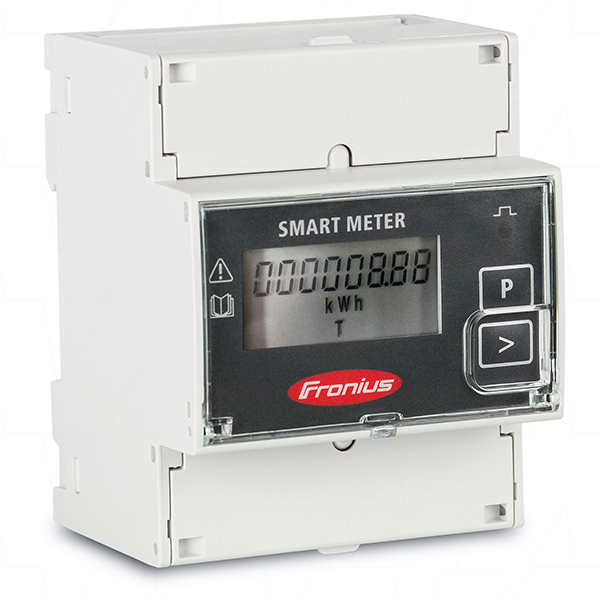

Fronius Smart Meter 50kA-3

Fronius Smart Meter 50kA-3

Visualise, control and optimise energy flows: you can only do that if you have the right data. And this is exactly what the Fronius Smart Meter – our bidirectional and intelligent electricity meter – provides.

Based on the information obtained, and in combination with the inverter and Fronius Solar.web, you can deliver efficient energy management, which saves your customers money – whether for private or commercial photovoltaic systems.

We offer the right Smart Meter for photovoltaic systems for every application. Unlock the potential of the data. You can rely on the Fronius Smart Meter. Designed to monitor.

Specifications:

Nominal Voltage (V)	400 - 415
Operating Voltage (%)	-9 to +14
Nominal Frequency (Hz)	50 - 60
Maximum Current (A)	3 x 50000
Grid Type	1PN, 3P, 3PN
Power Line Cross Section (mm²)	0.05 - 4
Neutral Line Cross Section (mm²)	0.05 - 4
CT's & Comms Line Cross Section (mm²)	0.05 - 4
Self Consumption (W)	2.5
Starting current (mA)	40
Accuracy class	1
Active energy accuracy	Class B (EN50470)
Reactive energy accuracy	Class 2 (EN/IEC 62053-23)
Short-time overcurrent	30 x Imax / 0.5 s
Mounting	Indoors (DIN rail)
Housing	4 modules DIN 43880
Degree of protection	IP 51 (front frame), IP 20 (terminals)
Ambient temperature range (°C)	-5 to +55
Interface to inverter	Modbus RTU (RS485)
Display	8-digit LCD



Current Transformers:

Fronius Current Transformer range suitable for use with this Energy Meter
