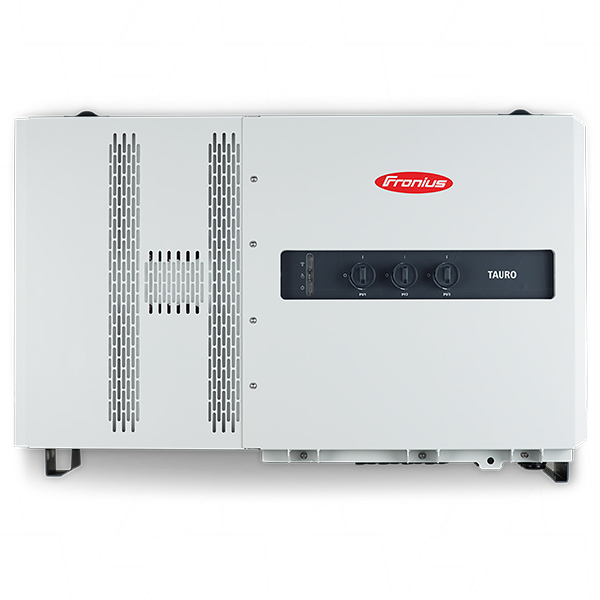

Fronius Tauro ECO 50-3-P 50kW 3 Phase Inverter 1 MPPT 4,210,307,002

Maximum flexibility in terms of system design with minimal overall system operating costs: the robust Fronius Tauro ECO inverter makes large-scale PV systems even more cost effective. Whether under direct sunlight or in extreme heat, its double-walled housing and active cooling enable full power and maximum yields even under the harshest environmental conditions.

The Fronius Tauro ECO is more budget-friendly, designed for large-scale, simpler projects with one MPPT (Maximum Power Point Tracker), a narrower voltage range (580-1000V) and can be used to implement sophisticated roofs in both centralised (P variant) and decentralised system designs (D variant).



Fronius Tauro is robust enough for commercial and large scale applications

Robust and durable

Designed to buck direct sunlight and high temperatures: its double-walled housing and active cooling give the Fronius Tauro a long service life and make it a robust commercial solar inverter that will always deliver top performance.

Fronius Tauro easy servicing

Lower costs and efficient servicing

Fronius Tauro is quick to install and efficient to maintain. When servicing is required, only the affected power stage set needs to be replaced rather than the entire project inverter. This makes for safe operation and fast, cost-efficient servicing.

Fronius monitoring

Intelligent control and an open system

Fronius Tauro can be conveniently monitored, controlled and maintained using Fronius Solar.web which lets you keep an eye on your system at all times. Its open system architecture means third-party components are easily integrated.

With our free online tool Fronius Solar.web, accessible via smartphone, laptop, or PC, you always have an overview of your current energy yield and consumption. This way, you always know how much solar power your system is producing, have access to reports and analyses on energy sources and CO2 savings, and can also save additional costs with the smart features.

Fronius installation and protection

Design flexibility with focus on repairability and sustainability

Centralised, decentralised, vertical or horizontal: Fronius Tauro offers you maximum flexibility in the design and installation of large-scale PV systems. The flexible Tauro and the cost-effective Tauro ECO can be combined in any way you choose. Preintegrated surge protection device and AC daisy chaining reduce the need for additional components and cables.

Designed for durability and with the fewest possible, replaceable components. This makes the Tauro particularly robust and failure-resistant, and means that only individual parts need to be replaced during on-site servicing, thereby saving time and conserving resources.



Specifications:

1. Input Data

Range Tauro ECO - P variant
Single or three phase Three phase
Number of MPP trackers 1
Max. input current 87.5A (Idc max)
Max. short circuit current 178A (Isc max, inverter)
DC input voltage range 580 - 1000V (Udc min - Udc max)
Feed-in start-up input voltage 650V (Udc start)
MPP voltage range 580 - 930V (Umpp min - Umpp max)
Max. PV generator power 75kWp (Pdc max)

2. Output Data

AC nominal output 50kW (Pac,r)
Max. output power 50kVA
Max. AC output current 75.8A at 380Vac / 72.5 at 400Vac (Iac nom)
Grid connection 3~ (N)PE 400/230; 3~ (N)PE 380/220
Frequency 50/60 (45–65)Hz (frequency range fmin - fmax)
Power factor 0 - 1 ind. / cap. (cos φac,r)

3. General Data

Degree of protection IP65
Night-time consumption <16 W
Cooling Active cooling technology and double-wall system
Installation Indoor and outdoor installation (direct sunlight is possible)
Ambient temperature range -40°C - +65°C (Optional AC-disconnect mounted inside the inverter: from -30°C to +65°C)
Max. efficiency 98.5%
MPP adaptation efficiency > 99.9%



Related Products


Selling Unit EACH
Model No Tauro ECO 50-3-P
Brand Fronius brand logo
Original Brand Fronius 4,210,307,002
Description Fronius Tauro ECO 50-3-P 50kW 3 Phase Inverter 1 MPPT 4,210,307,002
Application Large Scale and Commercial Solar, Off Grid Solar
Chemistry Lithium Iron Phosphate (LiFePO4)
Voltage 580 - 1000V
Size 50kW
Width 1109mm
Height 755mm
Length / Breadth / Depth 346mm
Weight 74kg
Categories Power Products & Accessories
Inverter Chargers
PV Inverter Chargers
Three Phase PV
Fronius Tauro
Fronius Tauro Eco
CEC Approved Items
CEC Approved Inverters

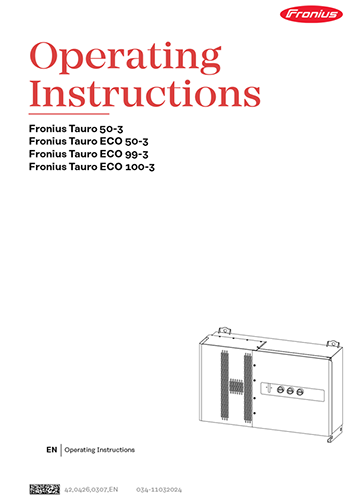

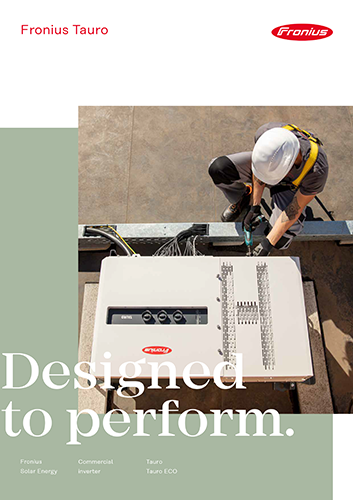

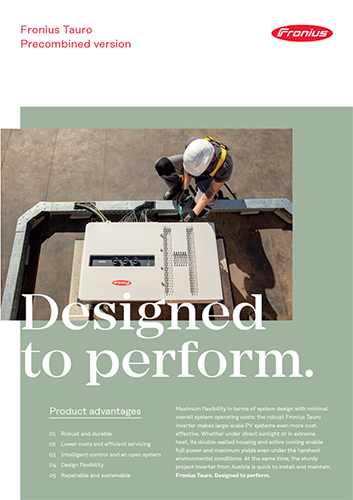

Data Sheet Datasheet PDF Thumbnail icon Datasheet PDF Thumbnail icon Datasheet PDF Thumbnail icon

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

CEC approved check logo

This product appears on the Clean Energy Council list of compliant inverters & power conversion equipment (PCE)

View the full list here

Not appropriate for DIY

INSTALLATION TO AUSTRALIAN STANDARDS REQUIRED

  • This product requires installation to the appropriate Australian Standards
  • Various State legislations require a Licenced Electrician to install this item - Please consult your State Government websites for more information
  • QLD Legislation imposes Point of Sale signage regulations for this product
