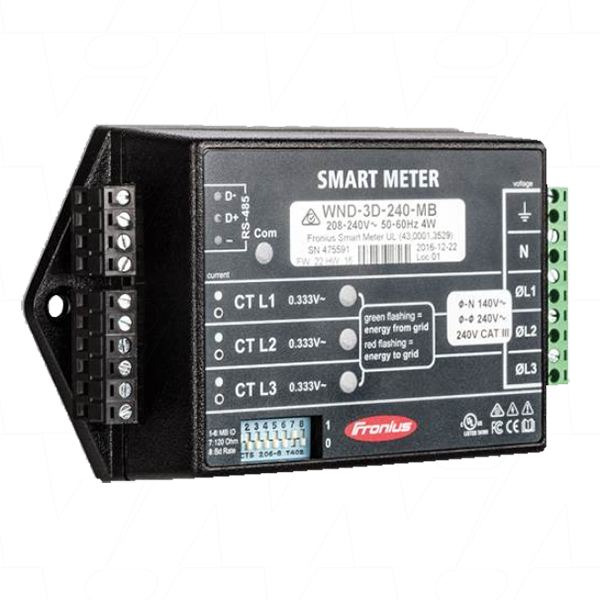

Fronius Smart Meter WR 100-600
Fronius Smart Meter WR 100-600 43,0001,3591
Fronius Smart Meter WR 100-600 - The intelligent electricity meter with current transformer control
Visualise, control and optimise energy flows: you can only do that if you have the right data. And this is exactly what the Fronius Smart Meter – our bidirectional and intelligent electricity meter – provides.
Based on the information obtained, and in combination with the inverter and Fronius Solar.web, you can deliver efficient energy management, which saves your customers money – whether for private or commercial photovoltaic systems.
We offer the right Smart Meter for photovoltaic systems for every application. Unlock the potential of the data. You can rely on the Fronius Smart Meter. Designed to monitor.
Specifications:
| Nominal Voltage (V) | 120 - 600 |
|---|---|
| Operating Voltage (%) | -15 to +15 |
| Nominal Frequency (Hz) | 45 - 65 |
| Maximum Current (A) | 3 x 6000 |
| Grid Type | 1PN, 2P, 2PN, 3P, 3PN |
| Power Line Cross Section (mm²) | Up to 2.5 |
| Neutral Line Cross Section (mm²) | Up to 2.5 |
| CT's & Comms Line Cross Section (mm²) | Up to 2.5 |
| Self Consumption (W) | 1.75 |
| Starting current (mA) | 40 |
| Accuracy class | 0.5 |
| Active energy accuracy | ANSI C12.20 class 0.5 and ANSI C12.1 accuracy |
| Mounting |
Indoor: wall-mounted; Outdoor: if mounted inside an electrical enclosure that is rated NEMA 3R or 4 / IP 66 |
| Degree of protection | IP 40 |
| Ambient temperature range (°C) | -40 to +80 |
| Interface to inverter | Modbus RTU (RS485) |
| Current Transformers | Primary: 1 – 6000 A / secondary: use only CTs with voltage output 333 mV |
Current Transformers:
Fronius Current Transformer range suitable for use with this Energy Meter
| Selling Unit | EACH |
|---|---|
| Model No | Smart Meter WR 100-600 |
| Brand |
|
| Original Brand | Fronius 43,0001,3591 |
| Description | Fronius Smart Meter WR 100-600 43,0001,3591 |
| Application | Residential and Light Commercial Solar, Off Grid Solar |
| Width | 85.1mm |
| Height | 153mm |
| Length / Breadth / Depth | 38mm |
| Weight | 233g |
| Categories |
Power Products & Accessories Smart Meters Fronius Smart Meters Power Conversion Equipment Solar System Components |
| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
INSTALLATION TO AUSTRALIAN STANDARDS REQUIRED
