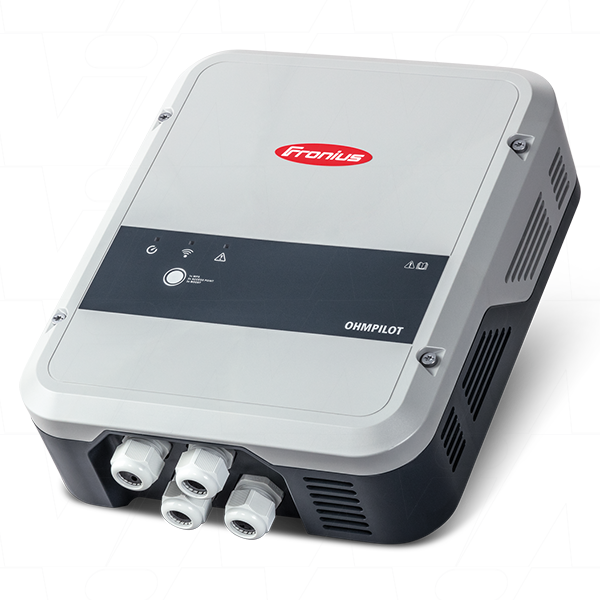

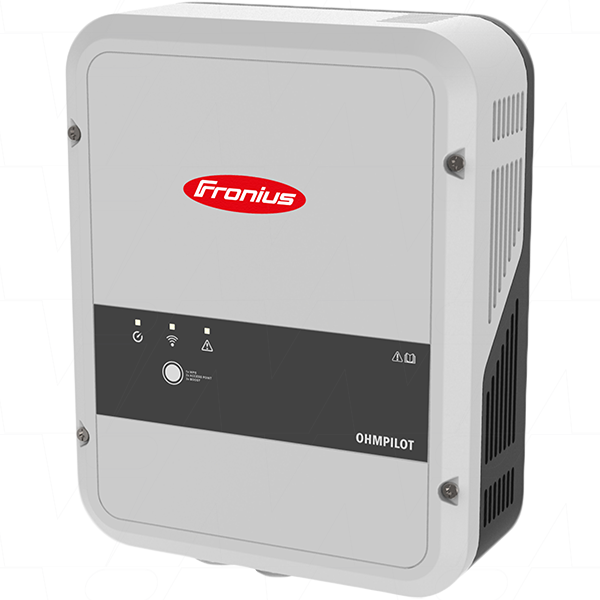

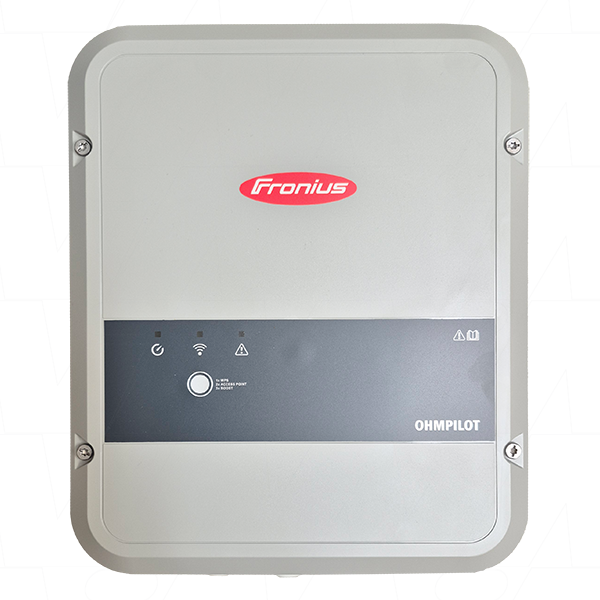

Fronius Ohmpilot
Ohmpilot Consumption Regulator 4,050,016
Fronius Ohmpilot
The Fronius Ohmpilot is a consumption regulator designed to use excess solar power to heat water. Thanks to the continuously adjustable regulation from 0 to 9 kW, surplus PV current can be put to highly efficient use and fed to the consumers in the household.
The Fronius Ohmpilot is primarily used to intelligently control heating elements for providing hot water in boilers and buffer storage tanks, but can also be used for infrared heating or towel radiators. Solar power can thus provide a family home with average levels of water consumption with most of their hot water from September to March. The result is maximum self consumption, a reduction in the household’s CO2 emissions and less wear on the building’s main heating system during the summer months.
This is how the heat solution works with the Fronius Ohmpilot
The Fronius Ohmpilot is a consumption regulator that uses the surplus energy from the PV system to heat water in the boiler. This means the water is heated with solar energy instead of conventional heating sources, such as an oil or pellet heating system. One of the key advantages of this solution is the continuously adjustable regulation from 0 to 9 kW, which enables the PV electricity to be used particularly efficiently. The Fronius Ohmpilot can also control other ohmic loads such as a towel radiator or infrared heating.
Intelligent Heating
Reduce the load on your primary heating system with the Fronius Ohmpilot, which allows you to use any surplus solar energy for heating or hot water treatment. In the best case scenario, you can even switch off your primary heating entirely during the summer months. This not only saves money, but also extends the service life of the heating system in the long term, regardless of whether you use a heat pump, pellets, oil or gas.
More Self Consumption
For owners of PV systems, especially those who are confronted with feed-in restrictions, it makes sense to use as much self-produced electricity as possible. This saves money and makes you less dependent on electricity providers and fossil fuels, as well as helping you to bypass rising energy costs. With the Fronius Ohmpilot, you can use surplus solar power to generate hot water or heat, therefore increasing your self-consumption. With Fronius Ohmpilot, even the tiniest amounts of excess PV electricity are put to good use—right down to the very last watt.
Maximum Transparency
As part of a PV system, the Fronius Ohmpilot is displayed in Fronius Solar.web. This means that a whole host of parameters relating to your hot water treatment and heating with the Fronius Ohmpilot, along with any other Fronius components, are clearly displayed in the familiar monitoring tool. This gives you a digital, convenient overview of your customers’ systems, which can be accessed from anywhere.
| Selling Unit | EACH |
|---|---|
| Model No | Ohmpilot |
| Brand |
|
| Original Brand | Fronius 4,050,016 |
| Description | Ohmpilot Consumption Regulator 4,050,016 |
| Application | Residential and Light Commercial Solar, Off Grid Solar |
| Width | 280mm |
| Height | 350mm |
| Length / Breadth / Depth | 110mm |
| Weight | 3.9kg |
| Categories |
Power Products & Accessories Smart Meters Fronius Ohmpilot Power Conversion Equipment Solar System Components Heating Solutions |

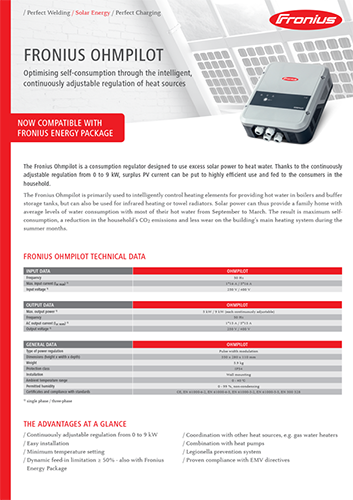

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
INSTALLATION TO AUSTRALIAN STANDARDS REQUIRED
