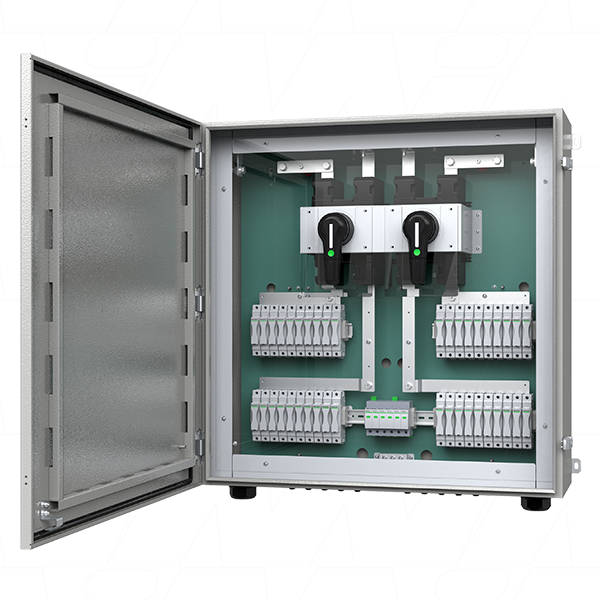

Noark PVBx202-EG
1500VDC String Combiner Box for up to 20 strings 1 Output - suitable for Fronius Tauro P 100kW
1500VDC 20 IN, 2 OUT String Combiner Box - IP65 Rated
Combines circuit and surge protection between PV modules and inverters.
With optional monitoring module, it could upload and monitor the status of current, voltage, switch and SPD. Electrical data is displayed by LED and transferred by RS485 cable
Features:
- Compliant to IEC/EN 61439-2 and AS/NZS5033
- All components rated to 1500VDC
- Input - Up to 20 Strings
- Output - Dual output with 1 x DC-PV2 rated switch disconnector
- Input fuse protection (fuse included)
- EG Steel construction
- Sutiable for Fronius Tauro, Goodwe ETC inverters
| Specifications | |
| Rated op. Voltage Ue | DC 1500V |
| Rated Insultation Voltage Ui | DC 1500V |
| Rated Impulse withstand voltage Ui | 12Kv |
| Earthing | Yes |
| Surge Protection | SPD PV Type II |
| Monitoring | No |
| Enclosure: | |
| Material | EG Steel |
| Thickness | 2mm |
| Ingress Protection | IP65 |
| Finishing | 80um Epoxy Powder Coating |
| String Input | Gland or MC4 |
| Mounting | Wall Mount Lugs |
| Ambient Temperature Range | -25°C to +50°C |
| Relative Humidity | 0 ~ 90% |
| Altitude | ≤2000 Metres |
| Compliance | IEC/EN 61439-2 |
*Please Note: This is also available in Stainless Steel. Please contact us to confirm pricing and stock availability
| Selling Unit | EACH |
|---|---|
| Model No | PVBx202-EG |
| Brand |
|
| Original Brand | Noark N9710202 |
| Description | 1500VDC String Combiner Box for up to 20 strings 1 Output - suitable for Fronius Tauro P 100kW |
| Width | 700mm |
| Height | 850mm |
| Length / Breadth / Depth | 300mm |
| Categories |
DC Circuit Breakers Miniature Circuit Breakers Load Centre Distribution Boards Noark Home Box |
| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
INSTALLATION TO AUSTRALIAN STANDARDS REQUIRED
