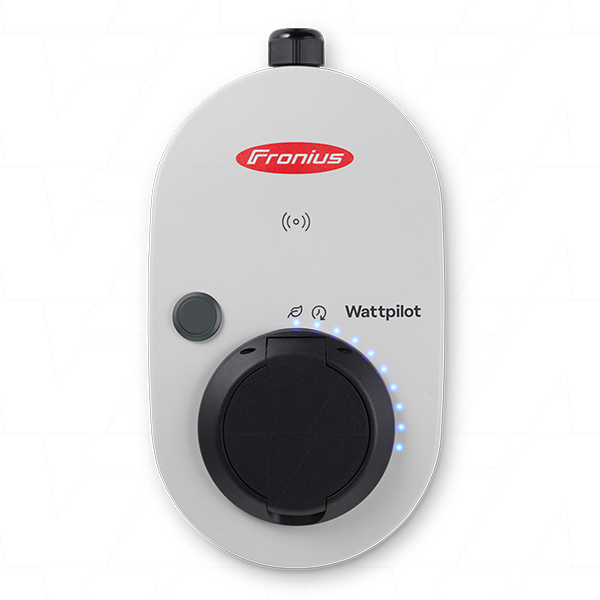

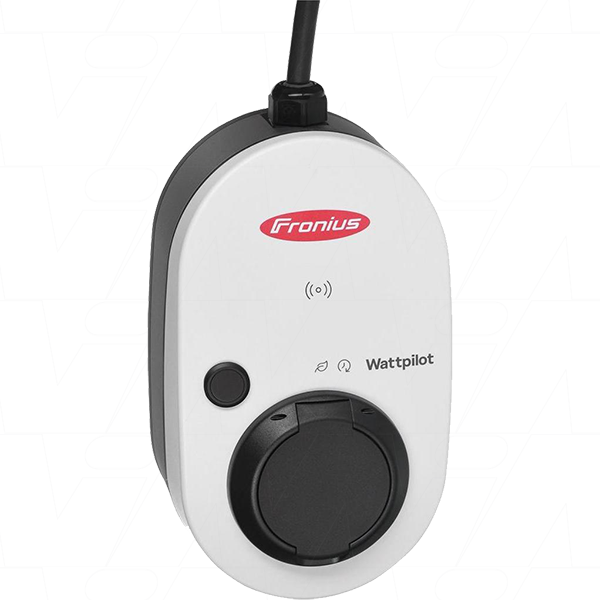

Fronius Wattpilot Go 22 J 2.0 AUS
Fronius Wattpilot Go 22 J 2.0 AUS transportable wallbox 1-phase/3-phase electric car charger 4,240,402
With intelligent charging modes, the Fronius charging solution means you can charge efficiently and flexibly at all times. Eco Mode enables highly economical driving by combining PV surpluses and variable electricity tariffs. Next Trip Mode enables reliable and inexpensive charging up to a specified time for a certain distance. Whether at home or on the go, the Fronius Wattpilot ensures optimal charging, wherever you are.

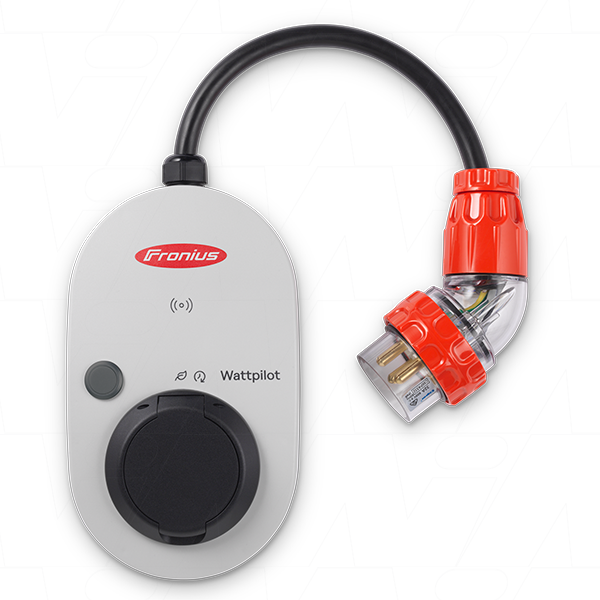

The Fronius Wattpilot Go is the portable charging station for use on the go. Thanks to the CEE plug, you can charge whenever and wherever there is a plug socket available.
Your energy, your e-mobility
The Fronius Wattpilot allows you to charge your electric car with your own solar power. The PV-optimised charging station automatically switches between one-phase and three-phase, ensuring efficient use of solar power at all times. As a result, PV surpluses of 1.38 to 11/22 kW are fully utilised to charge your electric vehicle, meaning you get the maximum benefits.
Flexible and cost-effective charging
The Fronius Wattpilot is perfectly compatible with PV systems and other Fronius products. This provides you with convenient access to intelligent energy management tailored specifically to your needs. Your data and information are clearly displayed in the Fronius Solar.web monitoring tool.
Charge at home or on the go
With the Fronius Wattpilot Go, you can charge your electric vehicle on the go, even if there are no charging stations available. Thanks to the CEE plug and optional adapter sets, the Fronius charging station can be connected to any socket (three-phase power plug or converter on a single-phase site).
Specifications:
1. Input Data
| Range | Wattpilot Go 22 J 2.0 |
|---|---|
| Single or three phase | Automatically switch between 1-phase and 3-phase |
| Maximum charging power | 1-phase: 7.36kW; 3-phase: 22kW |
| Grid supply types | TT / TN / IT |
| Mains connection | CEE32 30 cm incl. neutral conductor |
| Nominal voltage | 1-phase: 230/240V; 3-phase: 400/415V |
| Rated current (configurable) | 6–32A (1-phase or 3-phase) |
| Grid frequency | 50Hz |
| Charging cable | Infrastructure-side Type 2 socket with mechanical locking |
2. General Data
| PV optimisation | Dynamic PV surplus charging from 1.38 - 22 kW (at 230V / 400V) (automatic 1-/3-phase switching) |
|---|---|
| Charging mode | Mode 2 as per IEC 61851-1 AC charging |
| Network connection | WLAN 802.11 b/g/n |
| Installation | Indoor and outdoor installation |
| Protection class | IP65 |
| Ambient temperature | -25 to +40 (without direct sunlight) |
| Air humidity | 5-95% (non-condensing) |
| Impact resistance | IK08 |
Related Products
Wattpilot RFID Tags for personalisation
Package Includes:
- Mounting bracket, incl. screws and dowels
- Wattpilot Go 22 J 2.0
- Anti‑theft device
- Reset card
- ID chip
- Quick Guide
| Selling Unit | EACH |
|---|---|
| Model No | Wattpilot Go 22 J 2.0 AUS |
| Brand |
|
| Original Brand | Fronius 4,240,402 |
| Description | Fronius Wattpilot Go 22 J 2.0 AUS transportable wallbox 1-phase/3-phase electric car charger 4,240,402 |
| Application | Electric Vehicles, E-mobility |
| Width | 155mm |
| Height | 287mm |
| Length / Breadth / Depth | 109mm |
| Weight | 1.6kg |
| Categories |
Battery Chargers / Analysers / Testers EV Charging Solutions Fronius Fronius EV Charging |

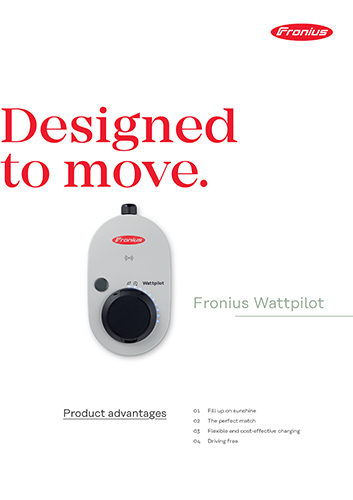

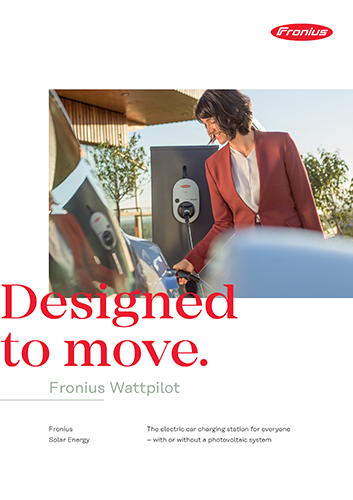

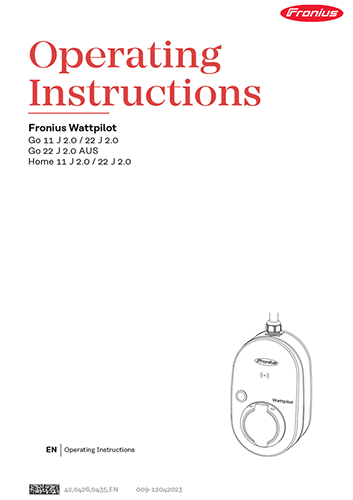

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
INSTALLATION TO AUSTRALIAN STANDARDS REQUIRED
