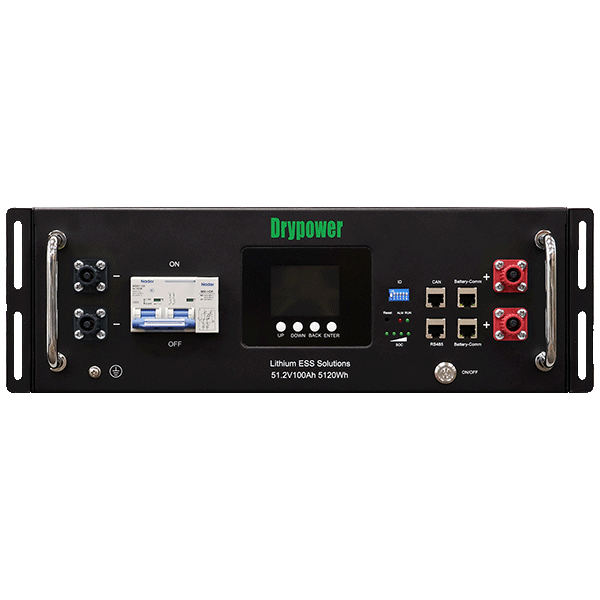

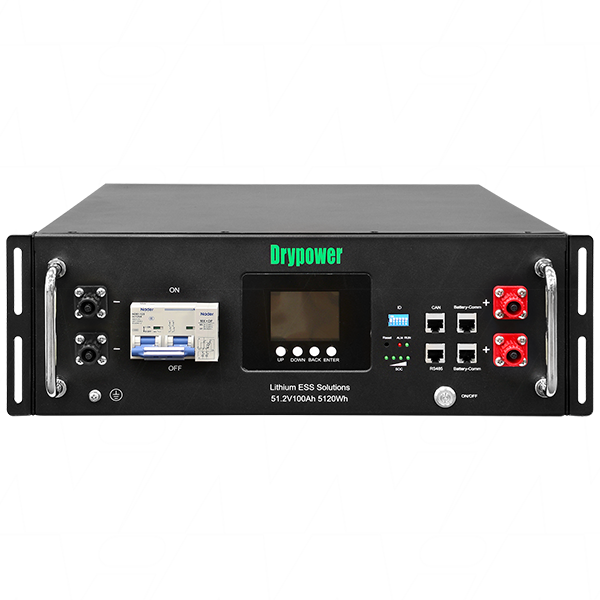

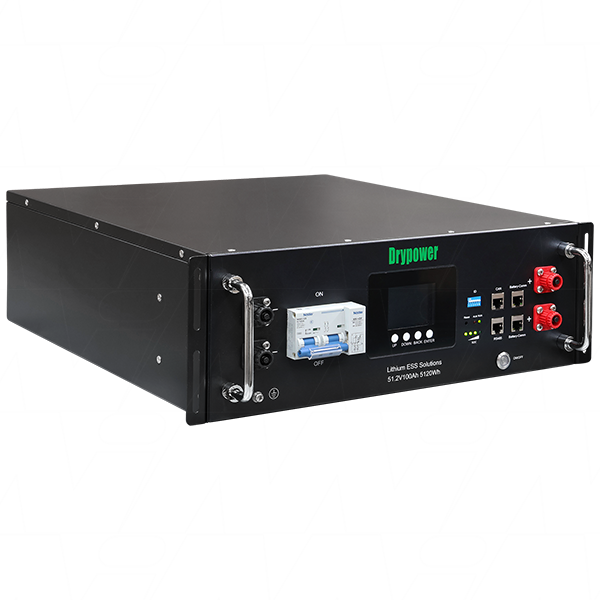

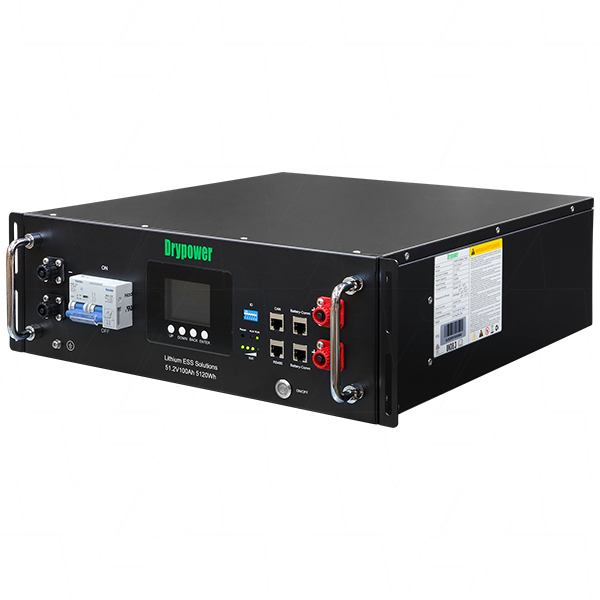

Drypower DP-51100-R
51.2V 100Ah 5.12kWh Rack Mounted Battery Module LiFePO4 4RU 16S1P with LCD Screen
Drypower DR-51100-R 51.2V 100Ah Rack Mounted LiFePO4 Battery Module
Clean Energy Council Approval: PENDING
The Drypower DP-51100-R is in the currently process of being CEC Approved.
The Drypower DP-51100-R rack mount battery module is a 4RU sized solution offering exceptional performance and service life.
Capable of delivering up to 6000 cycles to 80% DoD, the DP-51100-R features multiple battery protections such as the advanced BMS providing protections against over/under voltage, over/under temperature & short circuit, a circuit breaker with shunt trip/release feature designed to immediately cut power in a dangerous situation, and in-built twin fire arrestors as the last line of defence to ensure safe operation and swift fault mitigation.
Compared to 15S (48V) products, Drypower's 16S (51.2V) construction provides higher efficiency and better inverter compatibility, improving charge performance and providing more usable capacity.
Suitable for use in fixed or mobile applications, and scalable up to 64 units (327kWh of storage), the Drypower Rack Module range is worth considering for your next system.
Superior Service life
The Drypower DP-51100-R module offers outstanding performance, delivering up to 6,000 service cycles (0.5C at 25°C, 80% DoD). Its 16S design enhances inverter compatibility, improves charging efficiency, and maximises usable capacity, providing a reliable solution for long-term use.
System Expansion Capable
System expansion capable up to 64 modules to accommodate up to 327kWh of battery storage whilst preserving BMS communications *See Product User Manual or Datasheet for more information..
LCD Screen
The easy-to-read and navigate LCD screen provides instant battery/system parameters and specification data to keep you fully informed.
Intelligent BMS
Drypower's Intelligent BMS is designed to provide the maximum in performance and protection to ensure safe & long term operation. Multiple protections include over & under voltage detection, over & under temperature detection, short circuit protection and the innovative circuit breaker with shunt trip/release which immediately isolates the battery terminals, safeguarding your equipment.
Fire Protections
Drypower rack modules are built with dual internal, aerosol type, fire arrestors to provide protection against thermal runaway events. In the unlikely event that the battery’s BMS hasn’t already nullified an issue, the 2 x S-Type devices engage to mitigate any fire activity.
Adaptable to any Installation
Drypower rack modules are suitable for use in fixed or mobile applications. Whether a stand-alone backup power system for infrastructure, or a mobile coffee van, the Drypower range will deliver reliable performance for years to come.
Specifications:
| Voltage (V) | 51.2V |
|---|---|
| Construction | 16S1P 4RU |
| Capacity (Ah) | 100Ah |
| Watt Hour (Wh) | 5120Wh |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | >6000 cycles (0.5C@25°C, 80% DOD) |
| Max. continuous discharge current | 100A (1C) |
| Discharge cut-off voltage | 44.8V |
| Charge Voltage | 56.0V - 57.0V |
| Max. continuous charge current | 100A |
| Operating discharge temperature | -20°C to +55°C |
| Operating charge temperature | 0°C to +50°C |
| Storage temperature | -20°C to +55°C |
| Protections | Short circuit, over charge/discharge, over/under temperature, circuit breaker with shunt trip/release |
| Ingress Rating | IP20 |
| Series connection allowed* | NO |
| Parallel connection allowed* | YES - Up to 64P* |
| Communications | RS485/CAN |
| Case structure | Powder Coated Steel |
| Compliances | UL1973, UN38.3, IEC62619 |
| Warranty | 10 years* (5 years for mobile applications) |
* No Series Connection Allowed

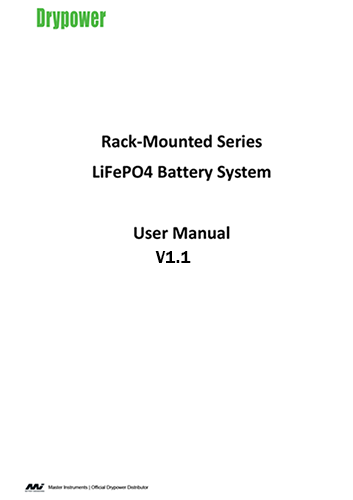

* Please consult user manual for information about Parallel configurations

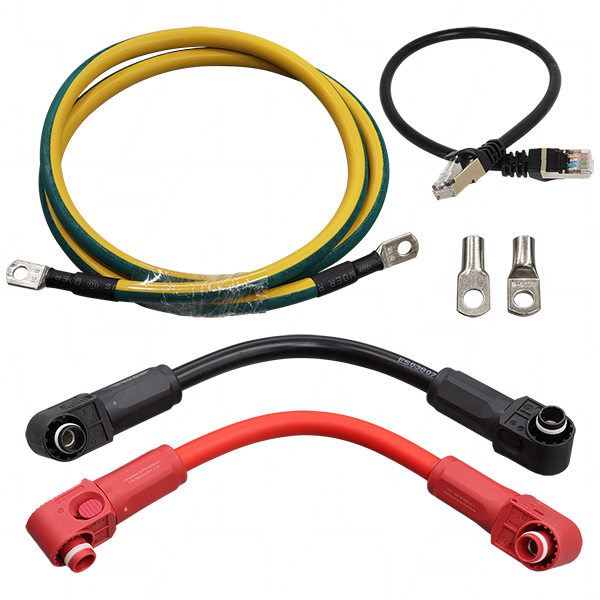

Each Drypower DP-51100-R Module is supplied with:
- 51.2V 100Ah 5.12kWh Battery module
- 1 x RED 4AWG Power Cable 180mm 200A Rated w/Amphenol Radlok SLPHPA25BS
- 1 x BLACK 4AWG Power Cable 180mm 200A Rated w/Amphenol Radlok SLPHPA25BS
- 1 x RS485 Comms Cable 210mm
- 1 x 6AWG Ground Cable 1000mm
- 2 x SC25-8 Terminals for Busbar connection
Compatible with the world leading Inverters such as: (Click to view full list)
Related Products
| Selling Unit | EACH |
|---|---|
| Model No | DP-51100-R |
| Brand |
|
| Description | 51.2V 100Ah 5.12kWh Rack Mounted Battery Module LiFePO4 4RU 16S1P with LCD Screen |
| Application | Home Power Storage, Telecommunications, Off Grid power, Industrial Power, Remote Infrastrucure Power |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Voltage | 51.2V |
| Watt Hour | 5120Wh |
| Nominal Capacity | 100Ah |
| Maximum Continuous Discharge Current | 100A |
| Size | 4RU |
| Width | 442mm |
| Height | 154mm |
| Length / Breadth / Depth | 520mm |
| Weight | 45kg |
| Categories |
IEC62619 Mobile Applications IEC62619 Stationary Applications Lithium Ion Batteries Lithium Iron Phosphate Battery Packs 48 Volt Series LiFePO4 Rack Mount Battery Systems Rack Mount Batteries Drypower Rack Mount Modules Telecommunication Base Stations |

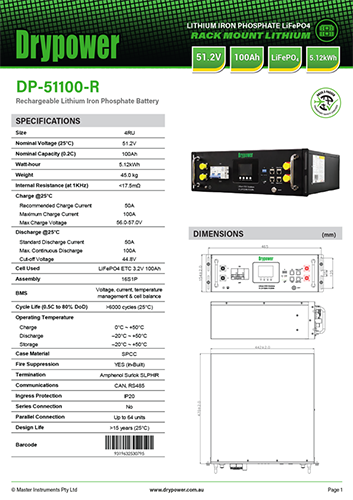

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
This Battery Pack has been tested and complies with IEC 62619:2022
To view all compliant batteries, please click here
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
