Noark N90126-2P-MCB 63A/500VDC
N90126 MCB EX9BP-N 63A 500V 2 Pole DC Circuit Breaker
Noark Miniature 500V DC Circuit Breakers (Non-polarised)
Noark DC miniature circuit breakers are non-polarised and suitable for short-circuit and overload protection of general direct current applications up to 63A, in solar, automation, control, telecommunications, and many other DC circuit applications.
Specifications
| Article Code | 90126 |
|---|---|
| Noark Series | Ex9BP-N2P K 63A 500VDC |
| Poles | 2 (250VDC per pole) |
| Current Rating (A) | 63A |
| Voltage (Max.) | 500VDC |
| Rated Breaking Capacity | 6kA |
| Curve Type | K |
| Rated Insulation Voltage (VDC) Ui | 1000VDC |
| Terminal Capacity | 1-35 mm² |
| Terminal Torque (Nm) | 3.5Nm |
| Mounting | 35mm Din Rail |
| IP Rating (terminals) | IP20 |
Suitable Enclosures:
| Selling Unit | EACH |
|---|---|
| Model No | N90126-2P-MCB 63A/500VDC |
| Brand |
|
| Original Brand | Noark 90126 |
| Description | N90126 MCB EX9BP-N 63A 500V 2 Pole DC Circuit Breaker |
| Application | Solar, Automation, Control, Telecommunications, DC circuit applications |
| Voltage | 500V |
| Size | 63A |
| Width | 36mm |
| Height | 89mm |
| Length / Breadth / Depth | 74mm |
| Weight | 240g |
| Categories |
DC Circuit Breakers Miniature Circuit Breakers Noark Miniature Circuit Breakers |

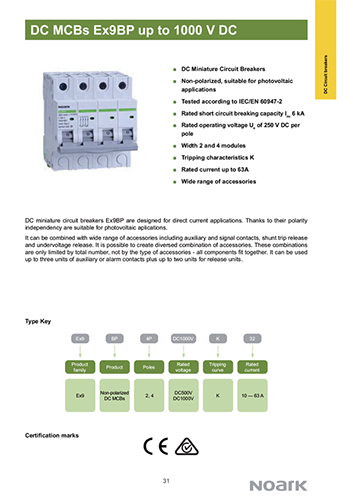

| Data Sheet |
|
