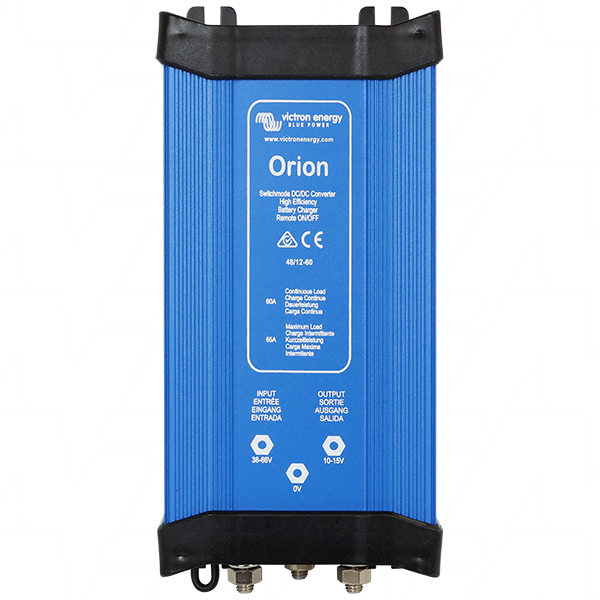

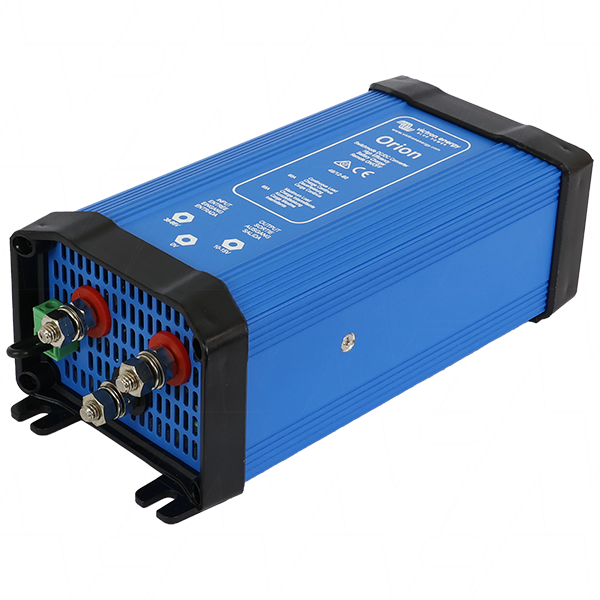

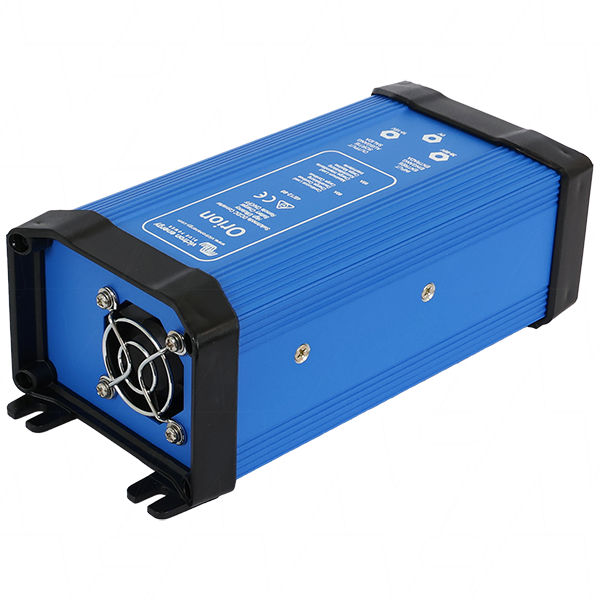

Victron Energy ORION IP20 48/12-60A
DC to DC Converter 60A Non-Isolated 32-70VDC Input to 10-15VDC Adjustable ORI481260020
ORI481260020 48/12-60A Orion DC-DC Converters Non-isolated, High power
Remote on-off connector
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).
All models with adjustable output can also be used as a battery charger
For example to charge from a 12 Volt starter or accessory battery in an otherwise 24V system.
All models with adjustable output can be paralleled to increase output current
Up to five units can be connected in parallel.
Accessories
| Selling Unit | EACH |
|---|---|
| Model No | ORION IP20 48/12-60A |
| Brand |
|
| Original Brand | Victron Energy ORI481260020 |
| Description | DC to DC Converter 60A Non-Isolated 32-70VDC Input to 10-15VDC Adjustable ORI481260020 |
| Voltage | 48V |
| Size | 720W |
| Width | 88mm |
| Height | 185mm |
| Length / Breadth / Depth | 65mm |
| Weight | 850g |
| Categories |
Power Products & Accessories DC-DC Power Boosters & Reducers Non-Isolated Converters 12V Output Non-Isolated Converters DC-DC Power Conversion Orion Converter Range |

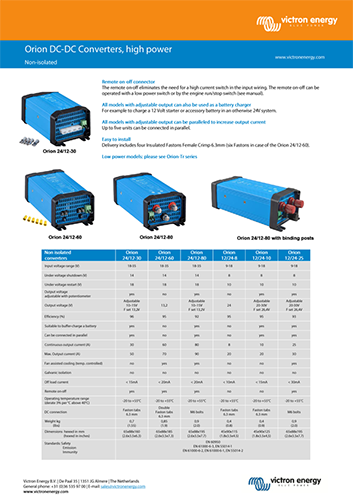

| Data Sheet |
|
