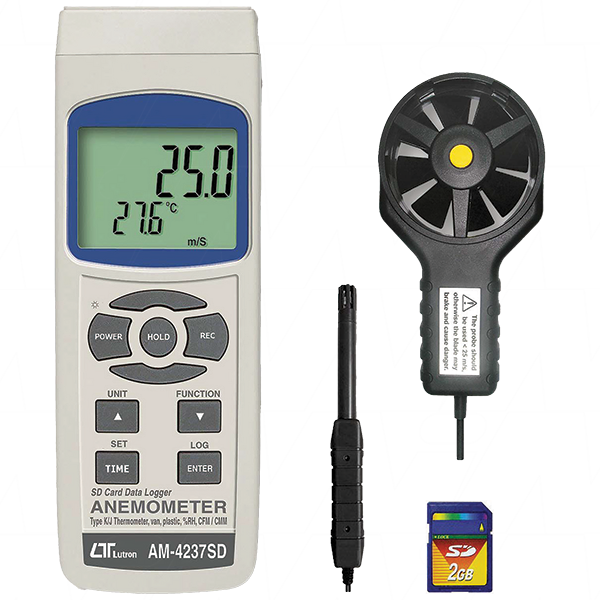

Lutron AM4237SD

Lutron AM4237SD

Anemometer for Air velocity, Air flow, Humidity, Dew point, Type K/J Temp

Anemometer, air velocity, air flow, humidity, dew point, Type K/J Temp in one meter.

Features:

  • Two probes are included: Anemometer probe and Humidity/Temp. probe.
  • 3 in 1: Anemometer, Humidity/Temp. meter, Type J/K thermometer.
  • ABS plastic vane probe, heavy duty.
  • Air velocity: m/S, Ft/min, Km/h, Knots, Mile/h,
  • Air temperature (°C, °F)
  • Air flow: CMM, CFM.
  • Low-friction ball vane wheels make sure high accuracy in high & low velocities.
  • Type K, Type J thermocouple thermometer.
  • Air Temp. used thermistor sensor, fast response time.
  • Humidity/%RH : 10 to 95 %RH.
  • Dew point. Wet bulb Temp..
  • Real time SD memory card Datalogger, built-in clock and calendar, real time data recorder, sampling time set from 1 second to 3600 seconds.
  • Manual datalogger is available (set the sampling time to 0), during execute the manual datalogger function, it can set the different position (location) No. (position 1 to position 99).
  • Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information (year/month/date/ hour/minute/second) to the Excel directly, then user can make further data or graphic analysis by themselves.
  • SD card capacity: 1 GB to 16 GB.
  • LCD with green light backlight, easy reading.
  • Can default auto power off or manual power off.
  • Data hold, record max. and min. reading.
  • Microcomputer circuit, high accuracy.
  • Power by UM3/AA (1.5 V) x 6 batteries or DC 9V adapter.
  • RS232/USB PC COMPUTER interface.
  • Separate probe, easy for operation of different measurement environment.
  • Wide applications: use this anemometer to check air conditioning & heating systems, measure air velocities, wind temperature...etc.

Replacement for AM4205A.


Selling Unit EACH
Model No AM4237SD
Brand Lutron brand logo
Description Anemometer for Air velocity, Air flow, Humidity, Dew point, Type K/J Temp
Width 73mm
Height 47.5mm
Length / Breadth / Depth 182mm
Weight 347g
Categories Test & Measurement Equipment
Digital Test Equipment
Anemometers
Humidity Meters
Temperature Meters

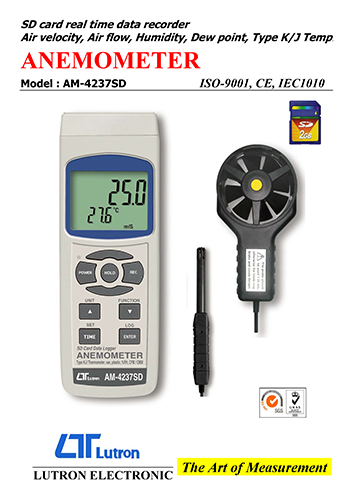

Data Sheet Datasheet PDF Thumbnail icon
